Hooking up a DVD player or satellite tuner
For details on the required cords (A–H), see page 6.
1 Connect the audio jacks.
Note
You can also listen to the sound of your TV by connecting your TV’s audio output jacks to the TV/SAT AUDIO IN
jacks on the receiver. In this case, do not connect the TV’s video output jack to the TV/SAT VIDEO IN jack on the
receiver.

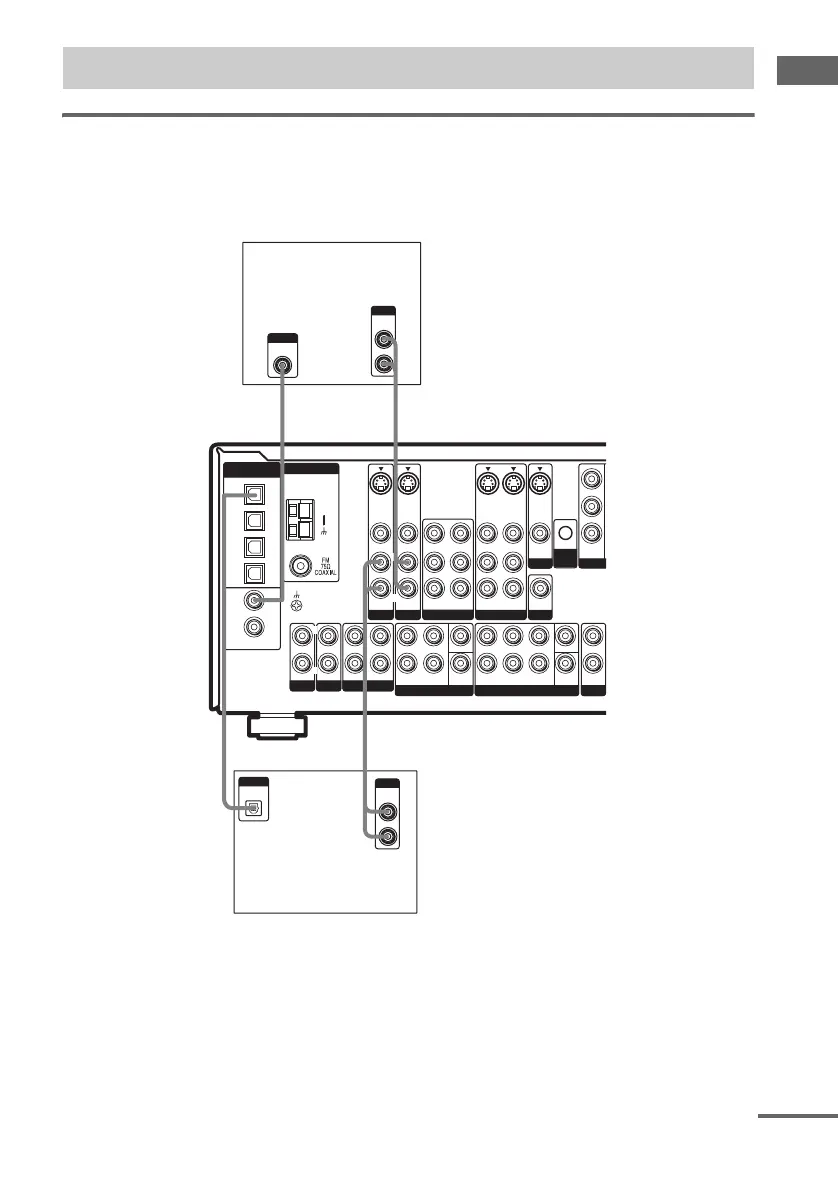

1a: Connecting components with digital audio output jacks
