Sony STR-DG500 Service Manual

11
STR-DG500/DG600

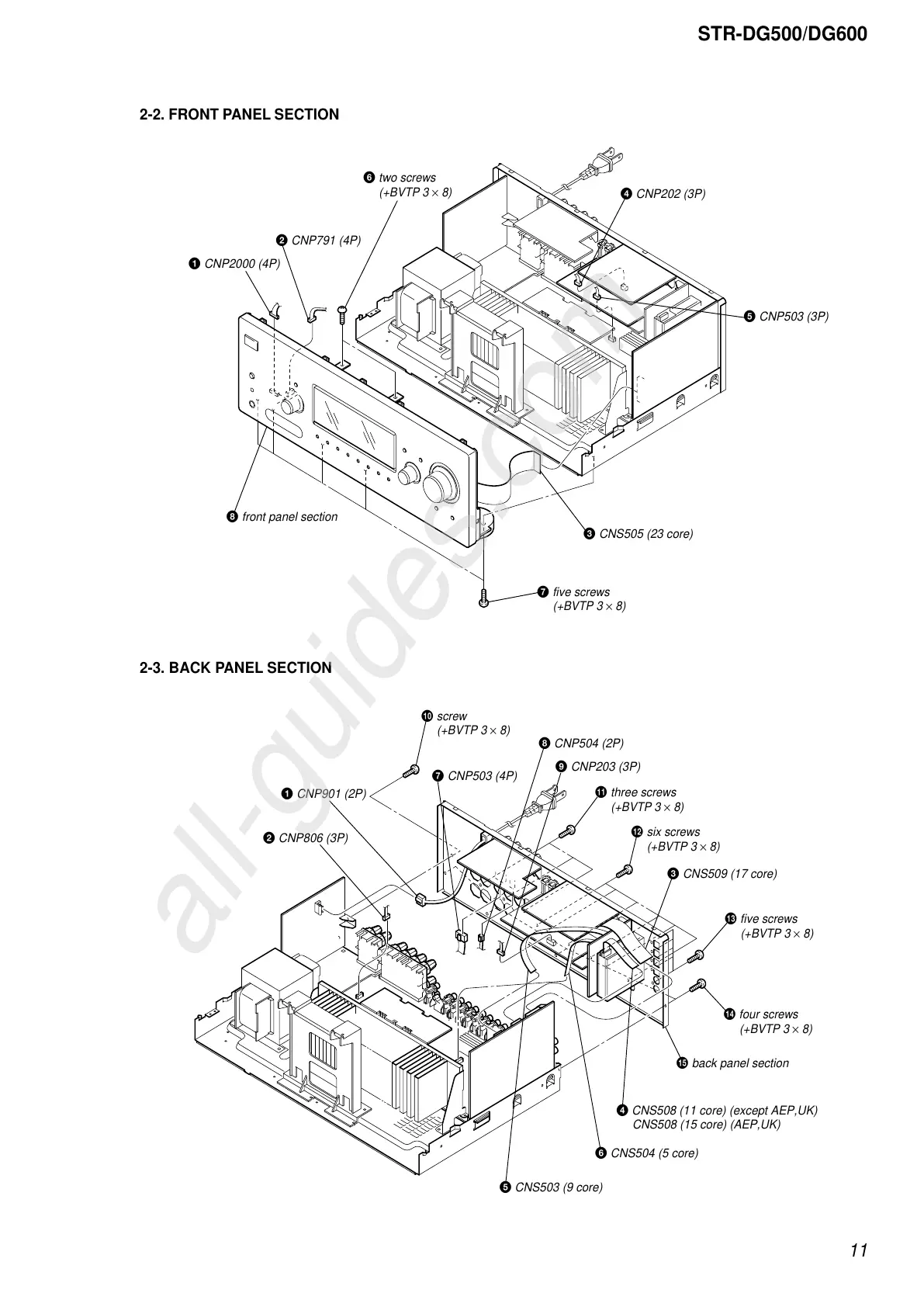

2-2. FRONT PANEL SECTION
2-3. BACK PANEL SECTION
7 five screws
(+BVTP 3
× 8)
6 two screws
(+BVTP 3
× 8)
1 CNP2000 (4P)
2 CNP791 (4P)
8 front panel section
3 CNS505 (23 core)
4 CNP202 (3P)
5 CNP503 (3P
)
0 screw
(+BVTP 3
× 8)
qa three screws
(+BVTP 3
× 8)
qs six screws
(+BVTP 3
× 8)
qd five screws
(+BVTP 3
× 8)
qf four screws
(+BVTP 3
× 8)
qg back panel section
1 CNP901 (2P)
7 CNP503 (4P)
8 CNP504 (2P)
9 CNP203 (3P)
3 CNS509 (17 core)
5 CNS503 (9 core)
6 CNS504 (5 core)
4 CNS508 (11 core) (except AEP,UK
)
CNS508 (15 core) (AEP,UK)
2 CNP806 (3P)
All manuals and user guides at all-guides.com
all-guides.com

Sony STR-DG500 Specifications

General

Number of Channels	5.1
HDMI Inputs	2
HDMI Outputs	1
Dolby Digital	Yes
DTS	Yes
FM/AM Tuner	Yes
Component Video Inputs	2
Digital Audio Inputs	2 Optical, 1 Coaxial
Analog Audio Inputs	4
Component Video Output	1
Power Output	100 watts per channel
Output Power	100W per channel (6 ohms, 1 kHz, THD 0.9%)
Surround Sound Formats	Dolby Digital, DTS
Dimensions (W x H x D)	430 x 157.5 x 298 mm
Frequency Response	10 Hz - 50 kHz
Inputs	HDMI, Component Video, Digital Audio, Analog Audio
Outputs	HDMI, Component Video
