Sony STR-DG500 - Waveforms and IC Block Diagrams

47
STR-DG500/DG600

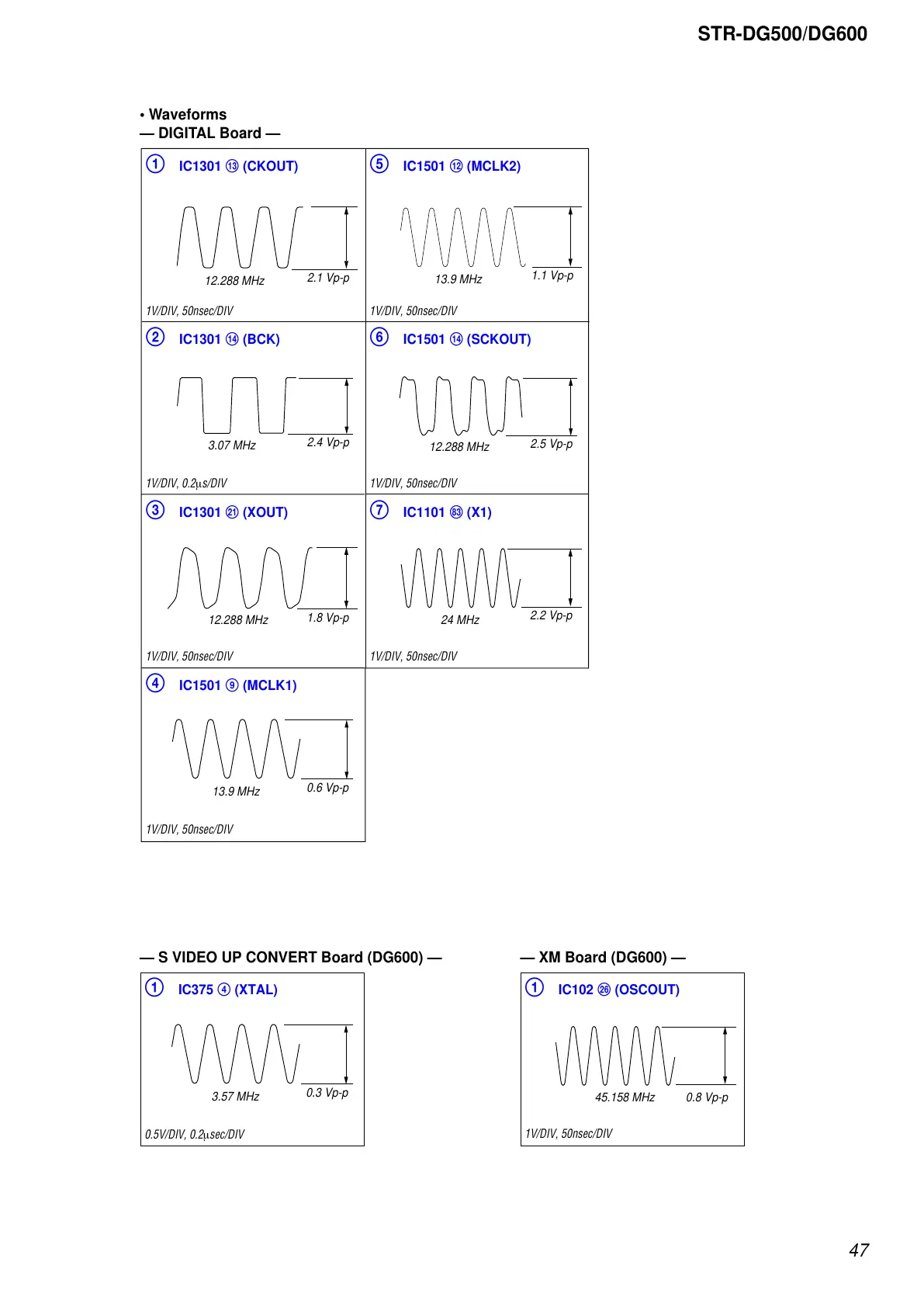

• Waveforms
— DIGITAL Board —
1 IC1301 qd (CKOUT)
2.1 Vp-p
1.8 Vp-p
1V/DIV, 50nsec/DIV
3 IC1301 wa (XOUT)
1V/DIV, 50nsec/DIV
4 IC1501 9 (MCLK1)
0.6 Vp-p
1V/DIV, 50nsec/DIV
2 IC1301 qf (BCK)
2.4 Vp-p
1V/DIV, 0.2 µ s/DIV
13.9 MHz
12.288 MHz
3.07 MHz
12.288 MHz
5 IC1501 qs (MCLK2)
1.1 Vp-p
2.2 Vp-p
1V/DIV, 50nsec/DIV
7 IC1101 id (X1)
1V/DIV, 50nsec/DIV
6 IC1501 qf (SCKOUT)
2.5 Vp-p
1V/DIV, 50nsec/DIV
24 MHz
12.288 MHz
13.9 MHz
— S VIDEO UP CONVERT Board (DG600) —
0.3 Vp-p
0.5V/DIV, 0.2 µ sec/DIV
3.57 MHz
1 IC375 4 (XTAL)
— XM Board (DG600) —
1 IC102 wh (OSCOUT)
0.8 Vp-p
1V/DIV, 50nsec/DIV
45.158 MHz
