4: Connecting the antennas (aerials)

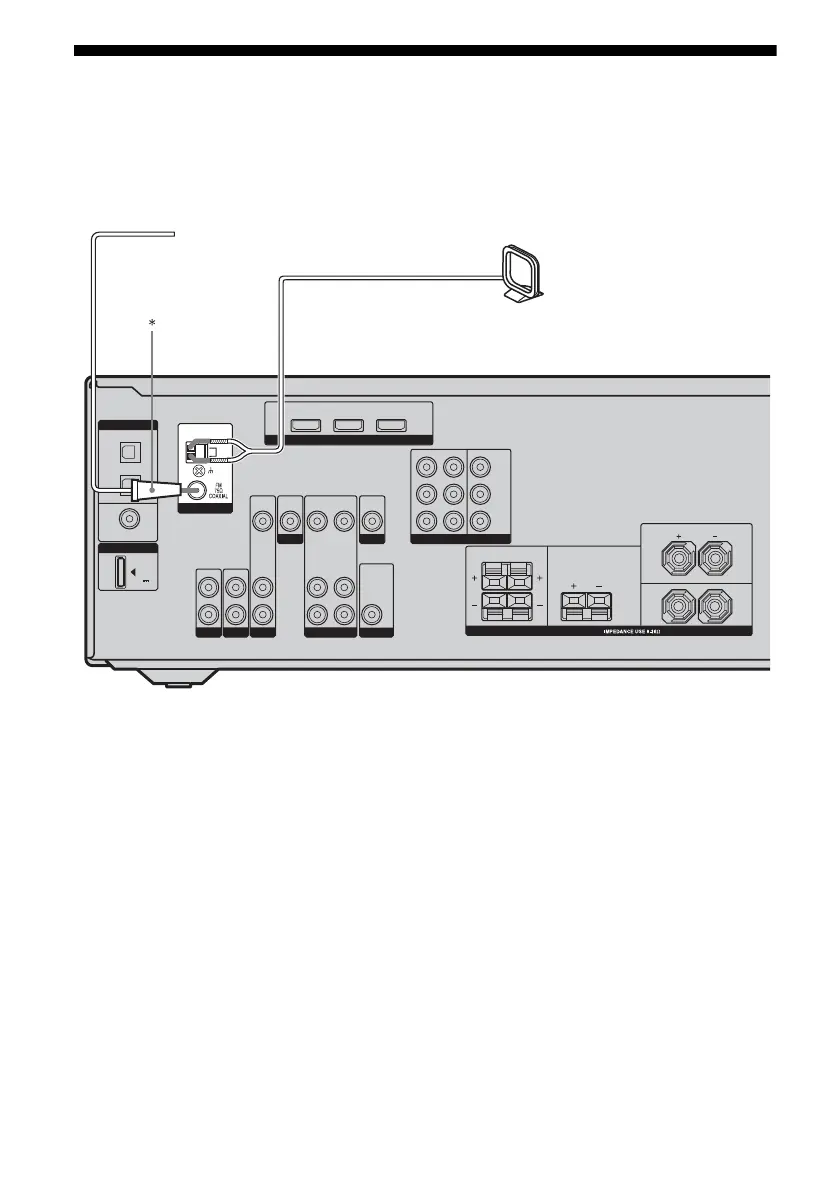

Connect the supplied AM loop antenna
(aerial) and FM wire antenna (aerial).
Before connecting the antennas, make sure to
disconnect the AC power cord (mains lead).
* The shape of the connector varies depending on
the area code of this receiver.
Notes
• To prevent noise pickup, keep the AM loop
antenna (aerial) away from the receiver and other
components.
• Be sure to fully extend the FM wire antenna
(aerial).
• After connecting the FM wire antenna (aerial),
keep it as horizontal as possible.
