Sony STR-DG710 - Exploded Views: Case Section; Case Components Diagram

64
STR-DG710
SECTION 6
EXPLODED VIEWS
Ref. No. Part No. Description Remark

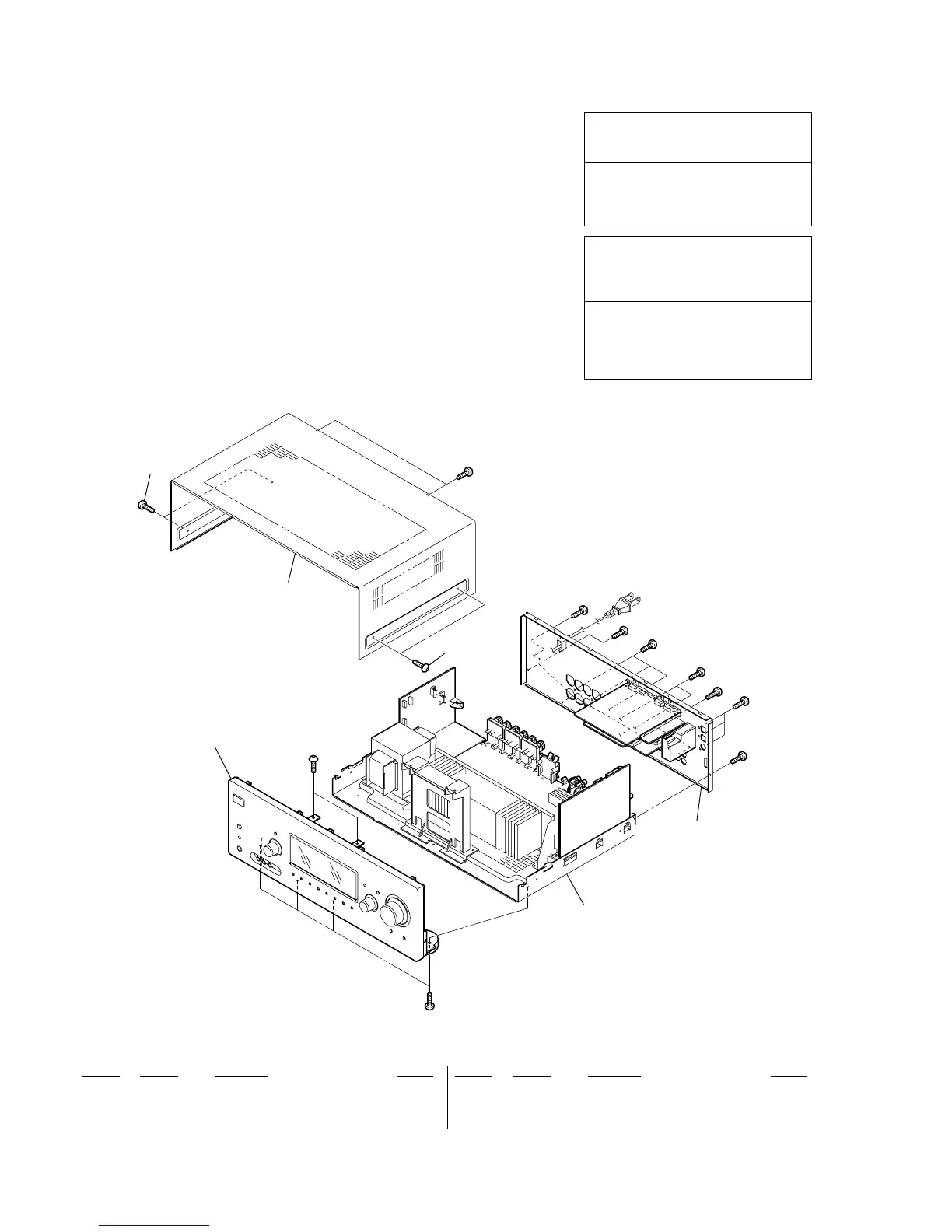

6-1. CASE SECTION
Ref. No. Part No. Description Remark
1 2-661-145-11 CASE (BLACK)...(BLACK)
1 2-661-145-31 CASE (SILVER)...(SILVER)
2 3-363-099-02 SCREW (CASE 3 TP2) (BLACK)...(BLACK)
2 3-363-099-11 SCREW (CASE 3 TP2) (SILVER)...(SILVER)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of this parts list.
•Abbreviation
AUS: Australian model
CND : Canadian model
MY : Malaysia model
SP : Singapore model
TH : Thai model
R
R
1
2
2
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
front panel section
back panel sectio
n
chassis section
The components identified by mark 9 contain
confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifiés par la marque 9
contiennent des informations confidentielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé et /
ou réparé.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiquens pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
Ver. 1.1
