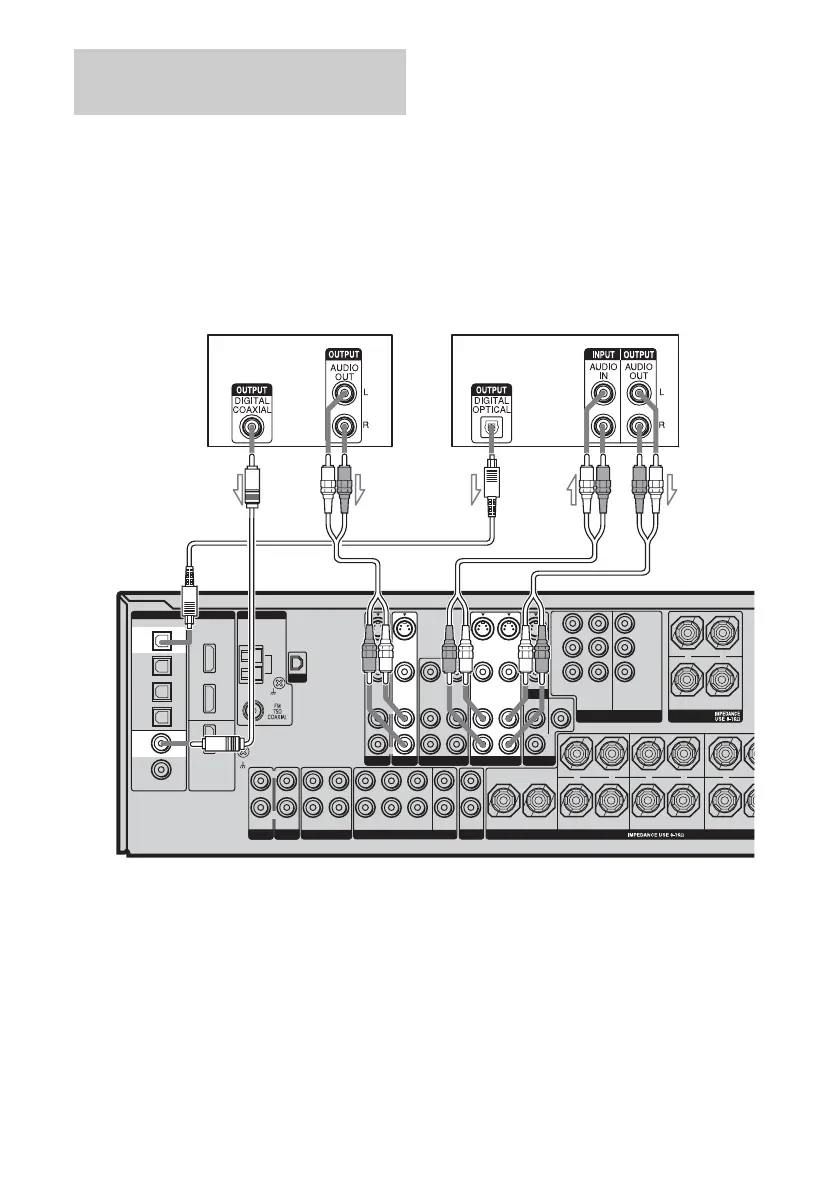

The following illustration shows how to
connect a DVD player/DVD recorder.
It is not necessary to connect all the cables.
Connect audio and video cords according to
the jacks of your components.
1 Connecting audio
Notes
• To input multi channel digital audio from the DVD
player, set the digital audio output setting on the
DVD player. Refer to the operating instructions
supplied with the DVD player.
• When connecting optical digital cords, insert the
plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
Hooking up a DVD player/DVD
recorder
P
B
/C
B
/B-Y
P
R
/C
R
/R-Y
Y
ASSIGNABLE
TV/SAT
IN
DVD
IN
MONITOR
OUT
TV/SAT
S-VIDEO
IN
PRE OUT
VIDEO 1
VIDEO OUT
S-VIDEO
OUT
S-VIDEO
OUT
AUDIO IN
VIDEO IN
S-VIDEO
IN
DVD
AUDIO IN
VIDEO IN
S-VIDEO
IN
AUDIO OUT
VIDEO OUT
R
L
L
R
L
R
SUB
WOOFER
L
R
DVD
IN
COAXIAL
SA-CD/
CD
IN
OPTICAL
VIDEO 1
IN
TV/SAT
IN
MD/
TAPE
IN
MD/
TAPE
OUT
ASSIGNABLE
(INPUT ONLY)
PHONO
IN
SA-CD/CD
L
R
L
R
MULTI CH IN
L
R
ZONE 2
OUT IN
L
R
FRONT SURROUND
L
R
SUR
BACK
SUB
WOOFER
CENTER
OUT
IN
MD/TAPE
ASSIGNABLE
DVD
IN
TV/
SAT
IN
MONITOR OUT
XM
DIGITAL HDMI ANTENNA
AM
COMPONENT VIDEO
VIDEO 2
FRONT B
L
R
+ –
SPEAKERS
FRONT
A
L
R
+
SURROUND
L
R
+ –
SURROUND BACK
L
R
+ –
CENTER
+ –
SPEAKERS
SIGNAL GND
AUDIO IN
VIDEO IN
AUDIO OUTAUDIO IN
VIDEO IN
MONITOR
VIDEO OUT
SUR
DVD player
A
B
A Coaxial digital cord (not supplied)
B Audio cord (not supplied)
C Optical digital cord (not supplied)
DVD recorder
CB
