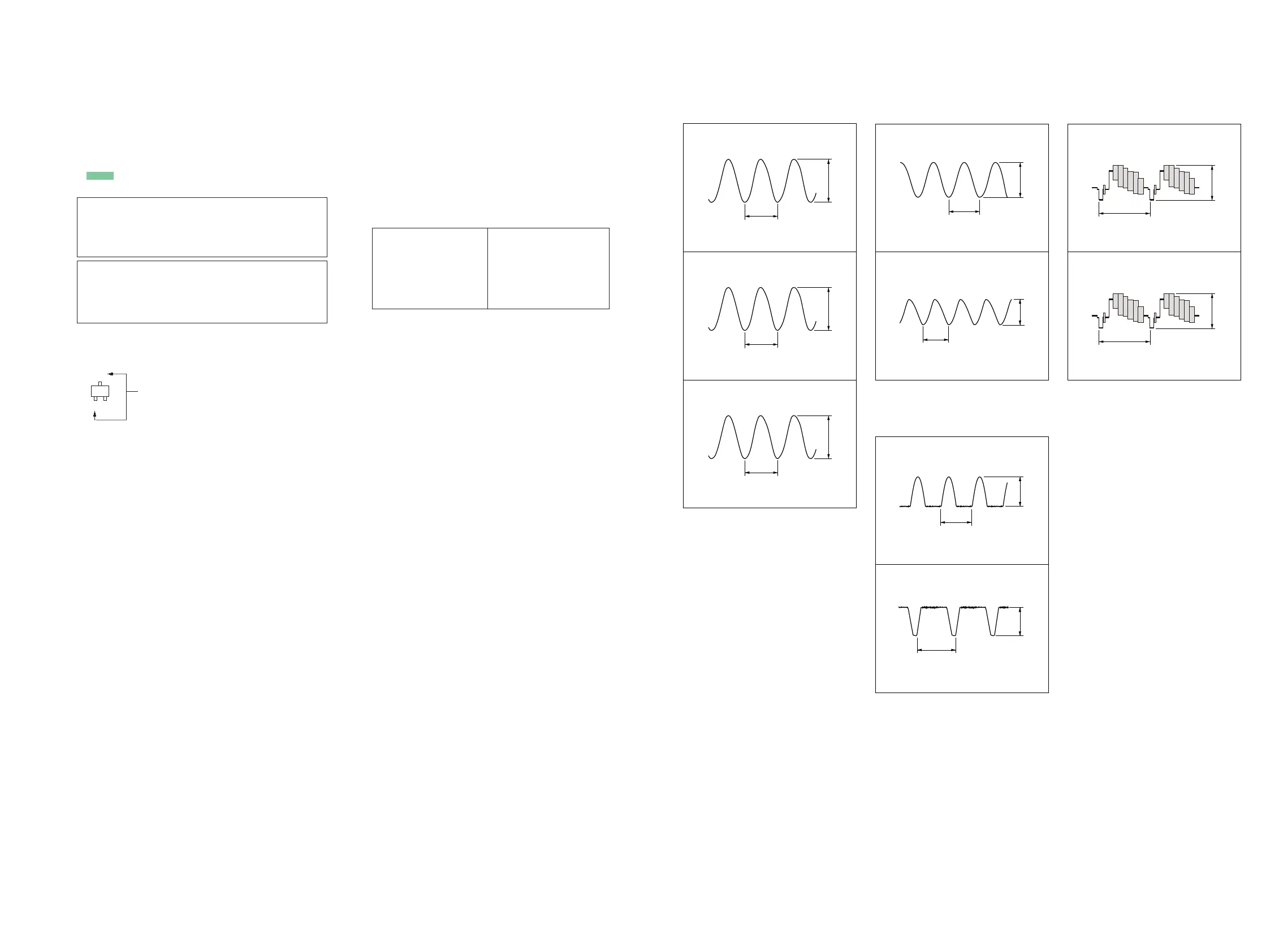

IC3000 qa (XOUT)
100 mV/DIV, 25 ns/DIV
100 ns
912 m Vp-p
4
IC3201 qs (XTAL)
50 mV/DIV, 25 ns/DIV
50.0 ns
106 m Vp-p
1
IC2006 qh (RMCK)
500 mV/DIV, 25 ns/DIV
75.0 ns
2.94 Vp-p
2
IC2006 qj (RBCK)
500 mV/DIV, 100 ns/DIV
300.0 ns
3.32 Vp-p
3
IC2006 wk (XOUT)
200 mV/DIV, 10 ns/DIV
40.0 ns
1.43 Vp-p
6
IC6302 1 (M.OUT)
(Color bar)
1 V/DIV, 20 Ps/DIV
H
2.5 Vp-p
7
IC6302 3 (BD IN)
(Color bar)
500 mV/DIV, 20 Ps/DIV
H
1.3 Vp-p
8
Q105, 106 (Collector)
1 V/DIV, 1 Ps/DIV
4.0 Ps
4.00 Vp-p
9
Q105, 106 (Base)
100 mV/DIV, 1 Ps/DIV
4.4 Ps
412m Vp-p
For Schematic Diagrams.
Note:
• All capacitors are in μF unless otherwise noted. (p: pF) 50
WV or less are not indicated except for electrolytics and
tantalums.
• All resistors are in and 1/4 W or less unless otherwise
specifi ed.
•
f
: internal component.
• 2 : nonfl ammable resistor.
• C : panel designation.
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
• A : B+ Line.
• B : B– Line.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark
: TUNER
• Voltages are taken with VOM (Input impedance 10 M).
Voltage variations may be noted due to normal production
tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
• Circled numbers refer to waveforms.
• Signal path.
J : AUDIO (DIGITAL)
F : AUDIO (ANALOG)
f : TUNER
E : VIDEO
• Abbreviation
AUS : Australian model
CND : Canadian model
ECE : Continental European, East
European and Russian models
For Printed Wiring Boards.
Note:
• X : Parts extracted from the component side.
• Y : Parts extracted from the conductor side.
•
f
: Internal component.
• : Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
Caution:
Pattern face side:
(SIDE B)
Parts face side:
(SIDE A)
Parts on the pattern face side seen
from the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.
Note:
The components identi-
fi ed by mark 0 or dotted
line with mark 0 are criti-
cal for safety.
Replace only with part
number specifi ed.
Note:
Les composants identifi és
par une marque 0 sont
critiques pour la sécurité.
Ne les remplacer que par
une piéce portant le nu-
méro spécifi é.
Caution:
Pattern face side:
(Conductor Side)
Parts face side:
(Component Side)
Parts on the pattern face side seen
from the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.
• HDMI board and DSP board are multi-layer printed board.
However, the patterns of intermediate-layers have not
been included in diagrams.
• Indication of transistor.
C
B
These are omitted.
E
Q
• Abbreviation
AUS : Australian model
CND : Canadian model
ECE : Continental European, East
European and Russian models
• Waveforms
– DIGITAL Board –
– DISPLAY Board –
– DIGITAL VIDEO Board – – VIDEO Board –
To Next Page
