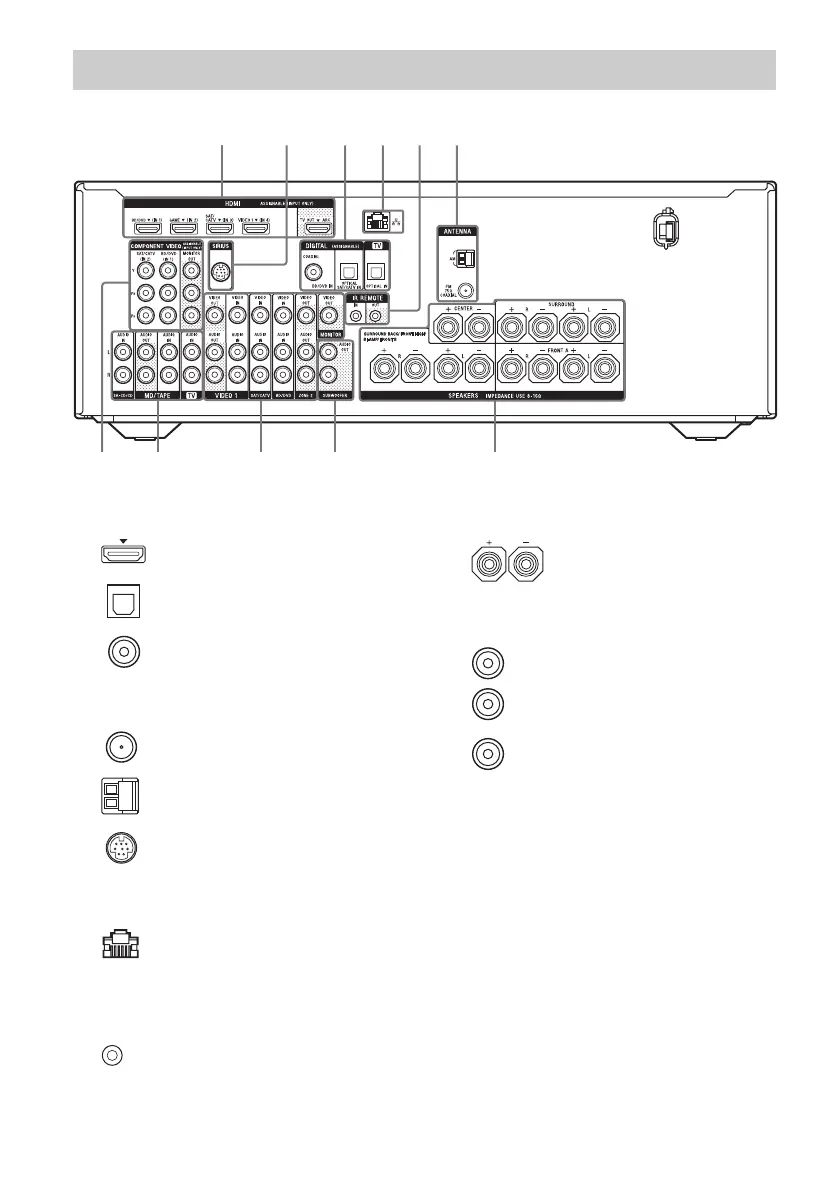

Rear panel
56768
1 213 24
A DIGITAL INPUT/OUTPUT section
HDMI IN/OUT* jacks (page 23,
27, 28, 29, 30)
OPTICAL IN jacks (page 23, 27,
28)
COAXIAL IN jack (page 27)
B ANTENNA section
FM ANTENNA jack (page 33)
AM ANTENNA terminals
(page 33)
SIRIUS jack (USA and Canada
models only) (page 58)
C NETWORK section
LAN port (page 35)
D Controls jacks for Sony equipment
and other external equipment
IR REMOTE IN/OUT jacks
(page 89)
E SPEAKERS section (page 21)
F AUDIO INPUT/OUTPUT section
AUDIO IN/OUT jacks
(page 23, 32)
AUDIO OUT jacks (page 21)
White (L)
Red (R)
Black
