112
STR-DN1070
SECTION 7
EXPLODED VIEWS
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
Parts Color Cabinet’s Color
• Abbreviation
AUS : Australian model
CND : Canadian model

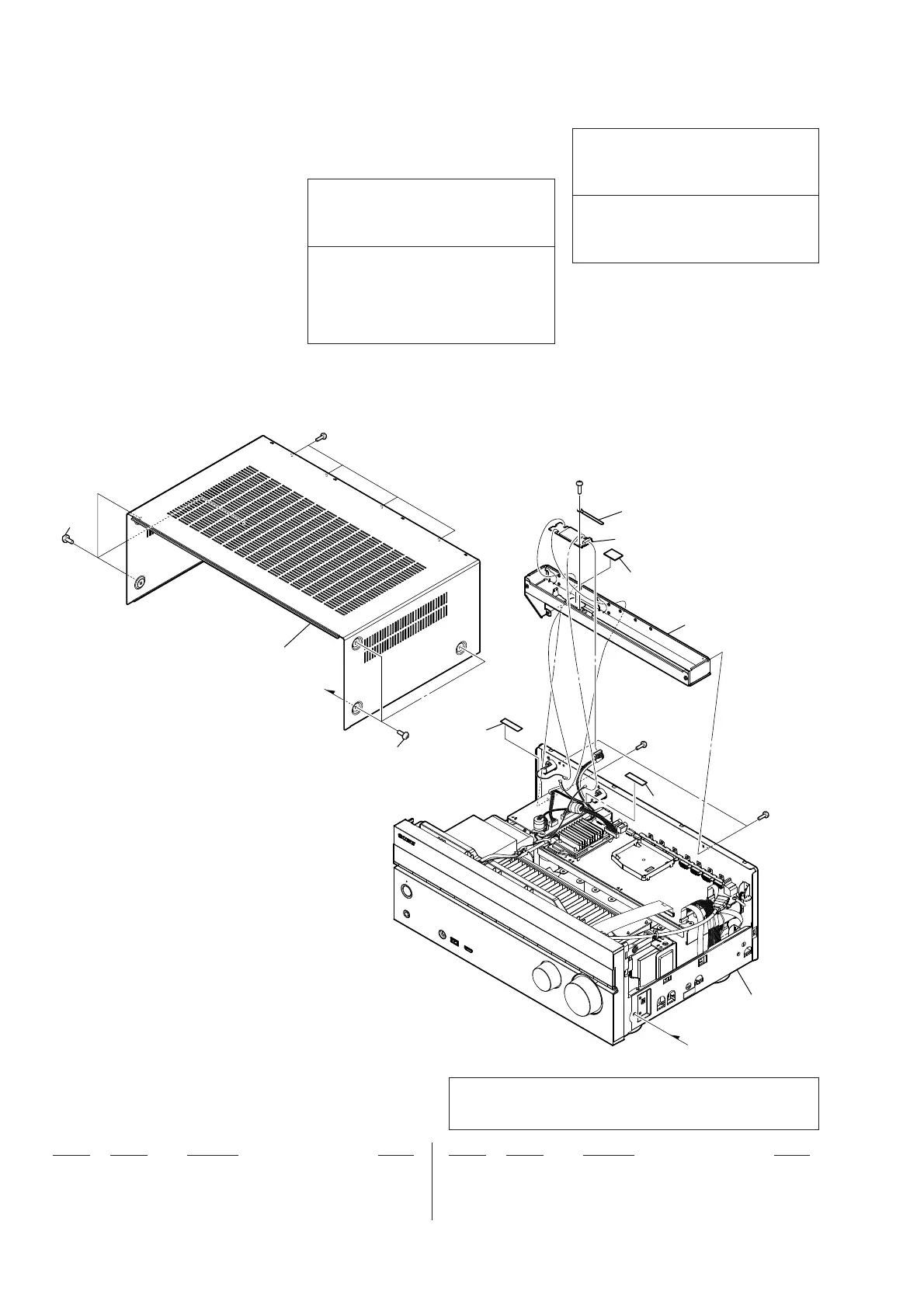

7-1. CASE (STEPUP) SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifi és par la marque
9 contiennent des informations confi den-
tielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé
et / ou réparé.
1 4-448-295-01 SCREW B-TYPE 4X8
2 4-453-058-32 CASE (STEPUP)
3 4-237-065-01 CLAMP (L35)
4 1-493-092-21 CARD, WLAN/BT COMBO
5 4-547-202-01 SHEET, RADIATION
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
ns not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
A
1
1
2
3
4
5
#1
#1
#1
#1
ns
ns
ns
A
MB-1512 board
section
Note : When the WLAN/BT combo card is replaced, refer to
“NOTE OF REPLACING MB-1512 BOARD OR WLAN/
BT COMBO CARD” on page 8.
To Next Page
