STR-K680/K780
SECTION 1
GENERAL
This section is extracted
from instruction manual.

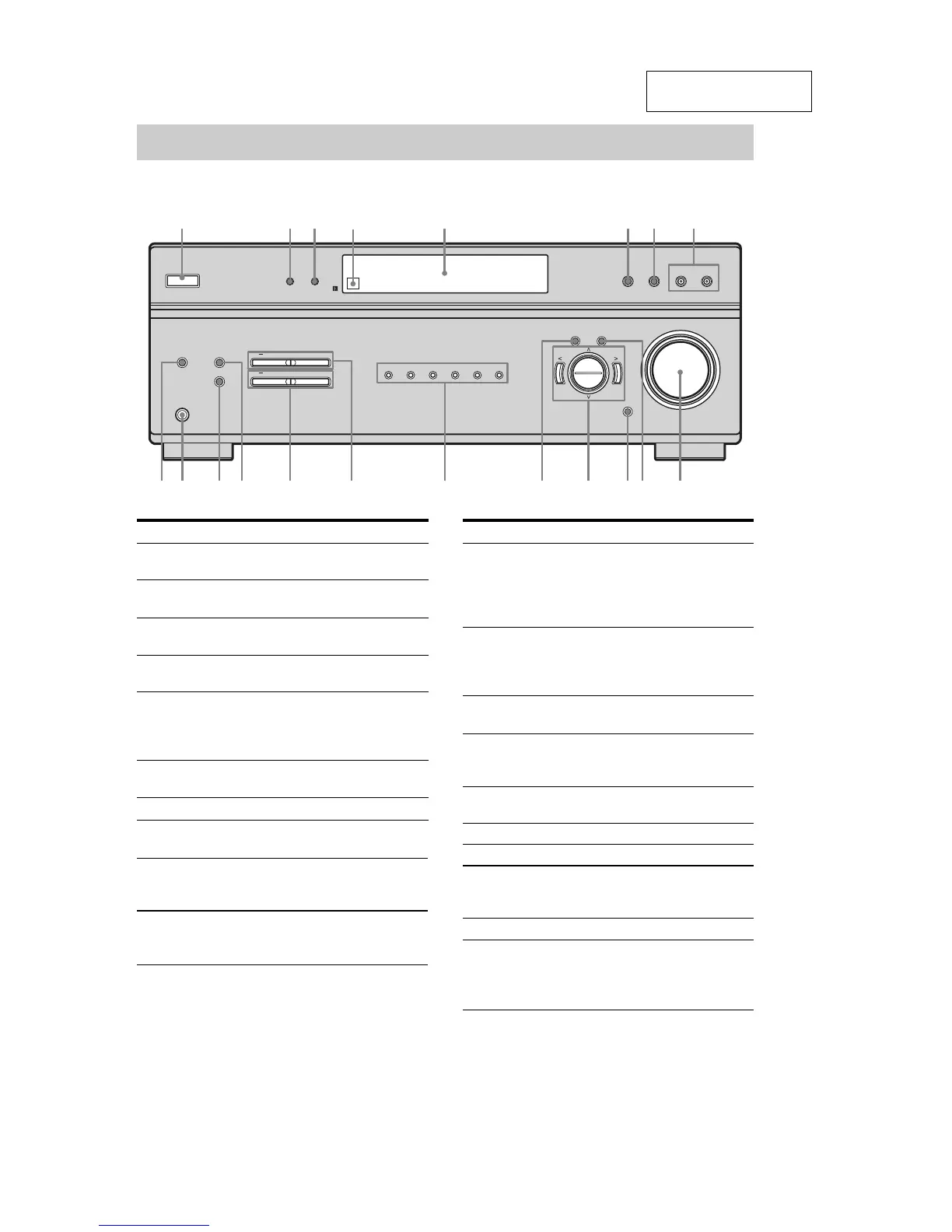

Front panel
Receiver
AUTO CAL MIC
PHONES
MEMORY
FM MODE TUNING
+
PRESET TUNING
VIDEO 1 VIDEO 2 DVD SA-CD/CD FM AM
AMP MENU ENTER MASTER
VOLUME
INPUT MODE
+
DISPLAY DIMMER
2CH A.F.D. MOVIE MUSIC
?/1
1 2 34 6 7 8
9
5
qjqkqlw; qgqh qf qaq;qsqd
Name Function
A ?/1 Press to turn the receiver
on or off.
B DISPLAY Press to select information
displayed on the display.
C DIMMER Press to adjust the
brightness of the display.
D Remote sensor Receives signals from
remote commander.
E Display The current status of the
selected component or a
list of selectable items
appears here.
F 2CH Press to select 2CH
STEREO mode.
G A.F.D. Press to select A.F.D. mode.
Name Function
H MOVIE,
MUSIC
Press to select sound fields
(MOVIE, MUSIC).
I MASTER
VOLUME
Turn to adjust the volume
level of all speakers at the
same time.
J ENTER Press to store a station or
enter the selection when
selecting the settings.
K INPUT MODE Press to select the input
mode when the same
components are connected
to both digital and analog
jacks.
L I/i/U/u After pressing AMP
MENU (M), press I or i
and U or u to select the
settings.
M AMP MENU Press to display the menu
of the receiver.
N Input buttons Press one of the buttons to
select the component you
want to use.
O PRESET
TUNING +/–
Press to select a preset
station.
P TUNING +/– Press to scan a station.
Q MEMORY Press to store a station.
R FM MODE Press to select FM
monaural or stereo
reception.
S PHONES jack Connects to a headphone.
T AUTO CAL MIC
jack
Connects to the supplied
ECM-AC2 optimizer
microphone for the Auto
Calibration function.
