Sony STR-K685 - Chassis Section

40
STR-K685

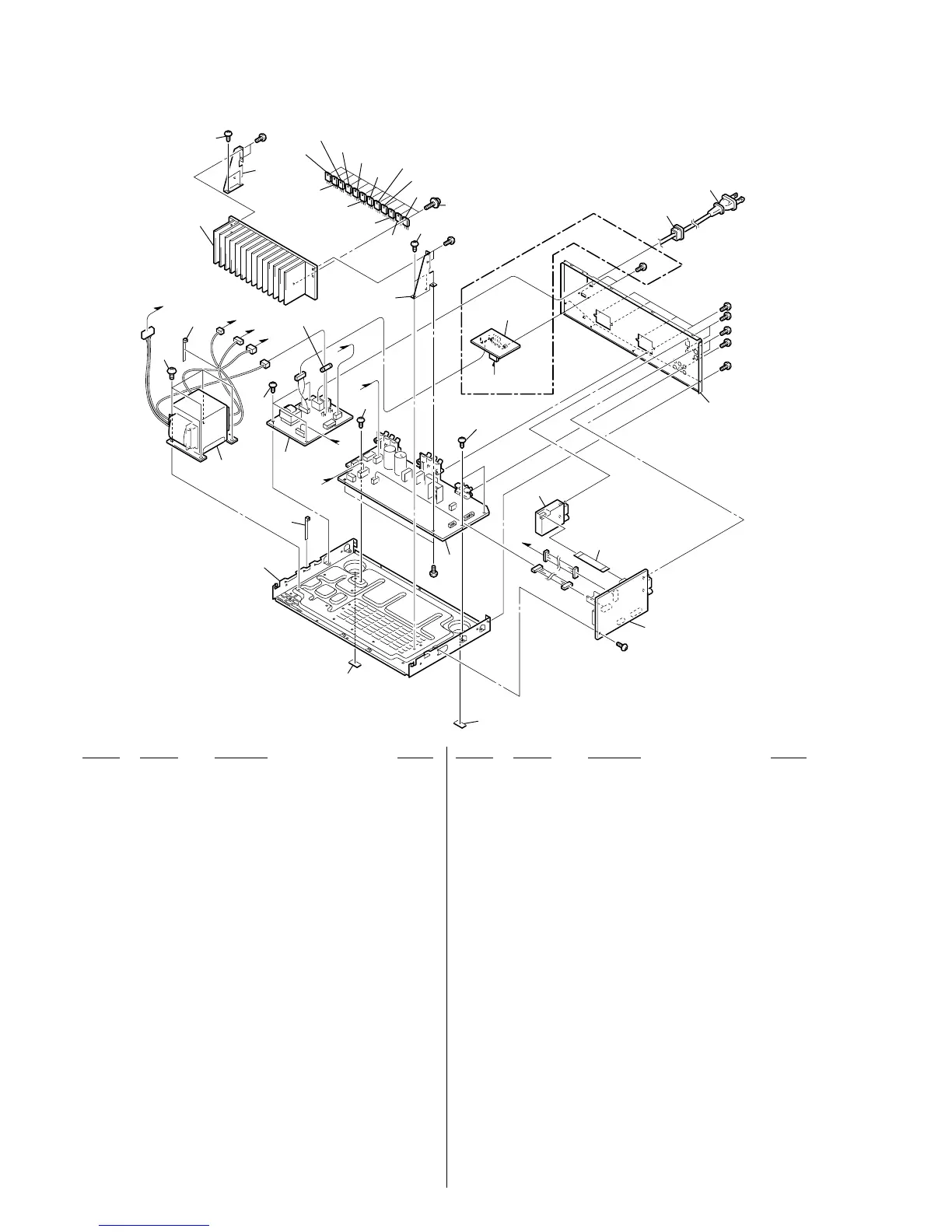

5-2. CHASSIS SECTION
T901
56
52
52
51
51
F901
58
Q654
Q554
Q553
Q604
Q504
Q503
Q753
Q704
Q703
Q754
57
Q603
Q653
59
55
#1
#1
#1
#2
#1
#1
#1
#1
60
53
62
53
53
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
E51
53
53
#1
#1
61
54
a
f
f
a
c
b
b
c
d
d
Ver. 1.2
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 4-977-358-01 CUSHION
52 3-701-748-00 CLAMP
53 3-077-331-21 +BV3 (3-CR)
54 1-693-728-11 TUNER (FM/AM) (E51, MX)
54 1-693-733-11 TUNER (FM/AM) (AR)
54 1-693-735-11 TUNER (FM/AM) (SP, SP6, TH)
55 4-249-675-01 +BV SUMITITE S 4X6 ROUND
56 A-1221-896-A DIGITAL BOARD, COMPLETE (SP, SP6, TH)
56 A-1221-905-A DIGITAL BOARD, COMPLETE (E51)
56 A-1221-915-A DIGITAL BOARD, COMPLETE (AR)
56 A-1249-608-A DIGITAL BOARD, COMPLETE (MX)
57 3-905-609-01 SCREW (TRANSISTOR)
58 3-703-244-00 CORD BUSH (2104) (MX)
58 3-703-244-21 CORD BUSH (2104) (SP, SP6, E51, AR)
58 4-916-783-01 CORD BUSH (TH)
0 59 1-777-071-83 CORD, POWER (SP, SP6, E51)
0 59 1-783-941-12 CORD, POWER (AR)
0 59 1-829-627-11 CORD, POWER (MX)
0 59 1-834-288-11 CORD, POWER (TH)
60 A-1221-893-A MAIN BOARD, COMPLETE (SP, SP6, TH)
60 A-1221-900-A MAIN BOARD, COMPLETE (E51)
60 A-1221-912-A MAIN BOARD, COMPLETE (AR)
60 A-1249-599-A MAIN BOARD, COMPLETE (MX)
61 1-828-953-11 WIRE (FLAT TYPE) (9 CORE)
62 A-1221-894-A STANDBY BOARD, COMPLETE (SP, SP6, TH)
62 A-1221-901-A STANDBY BOARD, COMPLETE (E51)
62 A-1221-913-A STANDBY BOARD, COMPLETE (AR)
62 A-1249-601-A STANDBY BOARD, COMPLETE (MX)
0 F901 1-532-388-33 FUSE (T2AL/250V) (E51)
0 F901 1-532-464-32 FUSE (2.5A/250V) (TH)
0 F901 1-532-464-33 FUSE (T2.5AL/250V) (SP, SP6, AR)
F901 1-532-504-32 FUSE (4A/250V) (MX)
0 Q503 6-702-390-01 IC MN2488-OPY-MK
0 Q504 6-702-391-01 IC MP1620-OPY-MK
0 Q553 6-702-390-01 IC MN2488-OPY-MK
0 Q554 6-702-391-01 IC MP1620-OPY-MK
0 Q603 6-702-390-01 IC MN2488-OPY-MK
0 Q604 6-702-391-01 IC MP1620-OPY-MK
0 Q653 6-702-390-01 IC MN2488-OPY-MK
0 Q654 6-702-391-01 IC MP1620-OPY-MK
0 Q703 6-702-390-01 IC MN2488-OPY-MK
0 Q704 6-702-391-01 IC MP1620-OPY-MK
0 Q753 6-702-390-01 IC MN2488-OPY-MK
0 Q754 6-702-391-01 IC MP1620-OPY-MK
0 T901 1-443-918-11 POWER TRANSFORMER (SP, SP6, AR, TH)
0 T901 1-443-919-11 POWER TRANSFORMER (E51)
0 T901 1-443-920-11 POWER TRANSFORMER (MX)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-862-01 SCREW +BVTT 2.6X6 (S) (MX, TH)
#2 7-685-862-09 SCREW +BVTT 2.6X6 (S) (SP, SP6, E51, AR)
