STR-K880/K900
Notes on chip component replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be
damaged by heat.
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscou-s (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.

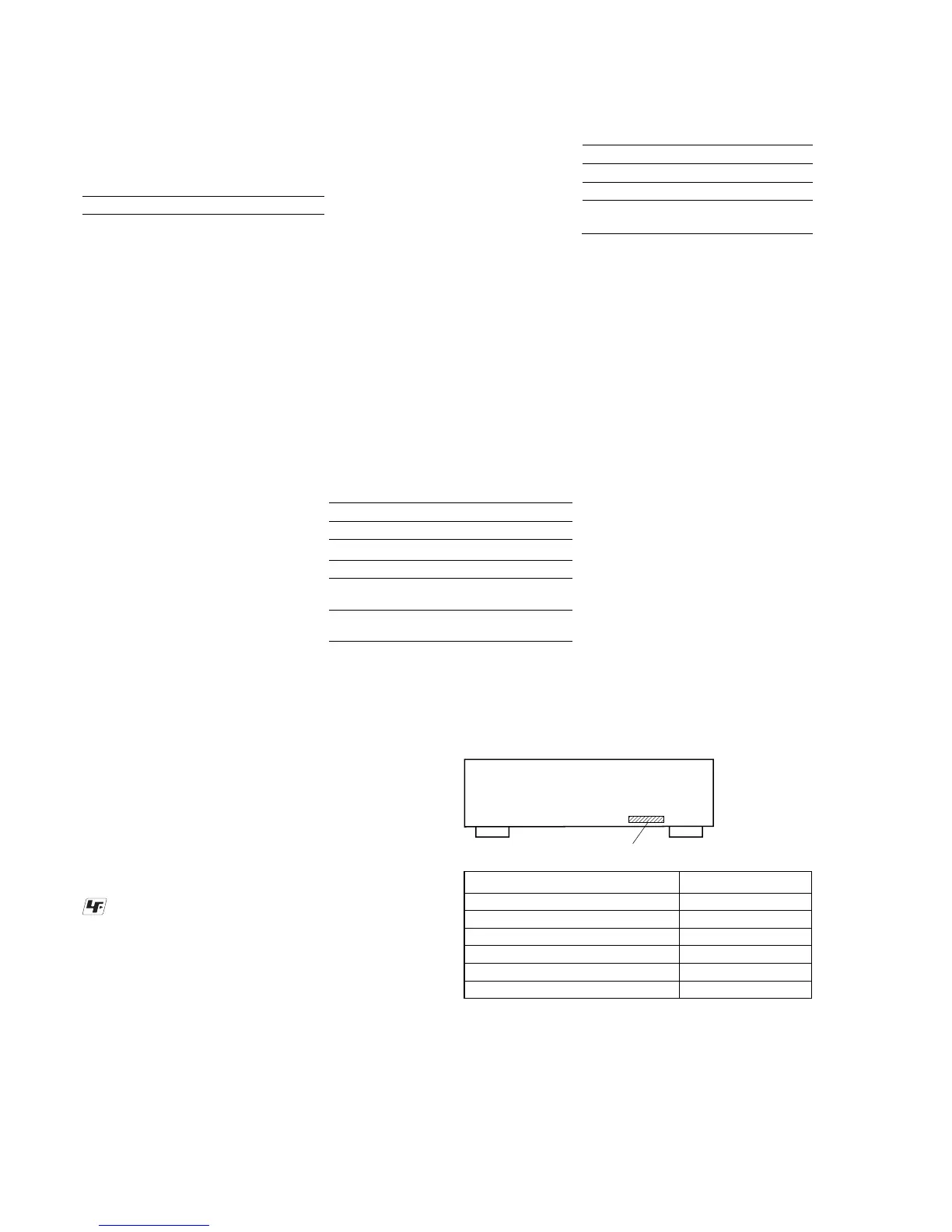

MODEL IDENTIFICATION
– Rear Panel –
Model Part No.
US model 2-663-098-0[]
Canadian model 2-663-098-1[]
AEP, UK models 2-663-098-2[]
E51 model 2-663-098-3[]
SP, SP6 models 2-663-098-4[]
AUS model 2-663-098-5[]
Parts No.
•Abbreviation
AUS: Australian model
CND : Canadian model
E51 : Chilean and Peruvian models
SP : Singapore model
SP6 : Singapore and Malaysia models
Reproduction frequency range
28 - 20,000 Hz
Tone
FM tuner section
Tuning range 87.5 - 108.0 MHz
Antenna FM wire antenna
Antenna terminals 75 ohms, unbalanced
Intermediate frequency
10.7 MHz
AM tuner section
Tuning range
Models of area
code US, CND
With 10-kHz tuning scale:
530 – 1,710 kHz
3)
With 9-kHz tuning scale:
531 – 1,710 kHz
3)
Antenna Loop antenna
Intermediate frequency
450 kHz
3)
You can change the AM tuning scale to 9 kHz or
10 kHz. After tuning in any AM station, turn off
the receiver. While holding down TUNING
MODE, press ?/1. All preset stations will be
erased when you change the tuning scale. To reset
the scale to 10 kHz (or 9 kHz), repeat the
procedure.
Video section
Inputs/Outputs
Video: 1 Vp-p, 75 ohms
COMPONENT VIDEO:
Y: 1 Vp-p, 75 ohms
P
B
/C
B
/B-Y: 0.7 Vp-p,
75 ohms
P
R
/C
R
/R-Y: 0.7 Vp-p,
75 ohms
80 MHz HD Pass Through
Gain levels ±6 dB, 1 dB step
General
Power requirements
Power consumption
Power consumption (during standby mode)
0.2 W
Dimensions (w/h/d) (Approx.)
430 157.5 316 mm
(167/8 62/8 124/8
inches) including
projecting parts and
controls
Mass (Approx.) 8.0 kg (17 lb 11 oz)
Area code Power requirements
US, CND 120 V AC, 60 Hz
Area code Power consumption
US 170 W
CND 230 VA
Models of area code E51
With 10-kHz tuning scale:
530 – 1,610 kHz
3)
With 9-kHz tuning scale:
531 – 1,602 kHz
3)
Models of area code AEP, UK, AUS, SP, SP6
With 9-kHz tuning scale:
531 – 1,602 kHz
AntennaLoop antenna
Intermediate frequency
450 kHz
AEP, UK 230 V AC, 50/60 Hz
AUS 240 V AC, 50 Hz
SP, SP6 230 – 240 V AC,
50/60 Hz
E51 120/220/240 V AC,
50/60 Hz
AEP, UK, AUS, SP,
SP6, E51
200 W
×
××
×
Design and specifications are subject to
change without notice.
Ver. 1.1
