STR-K880/K900
STR-K880/K900

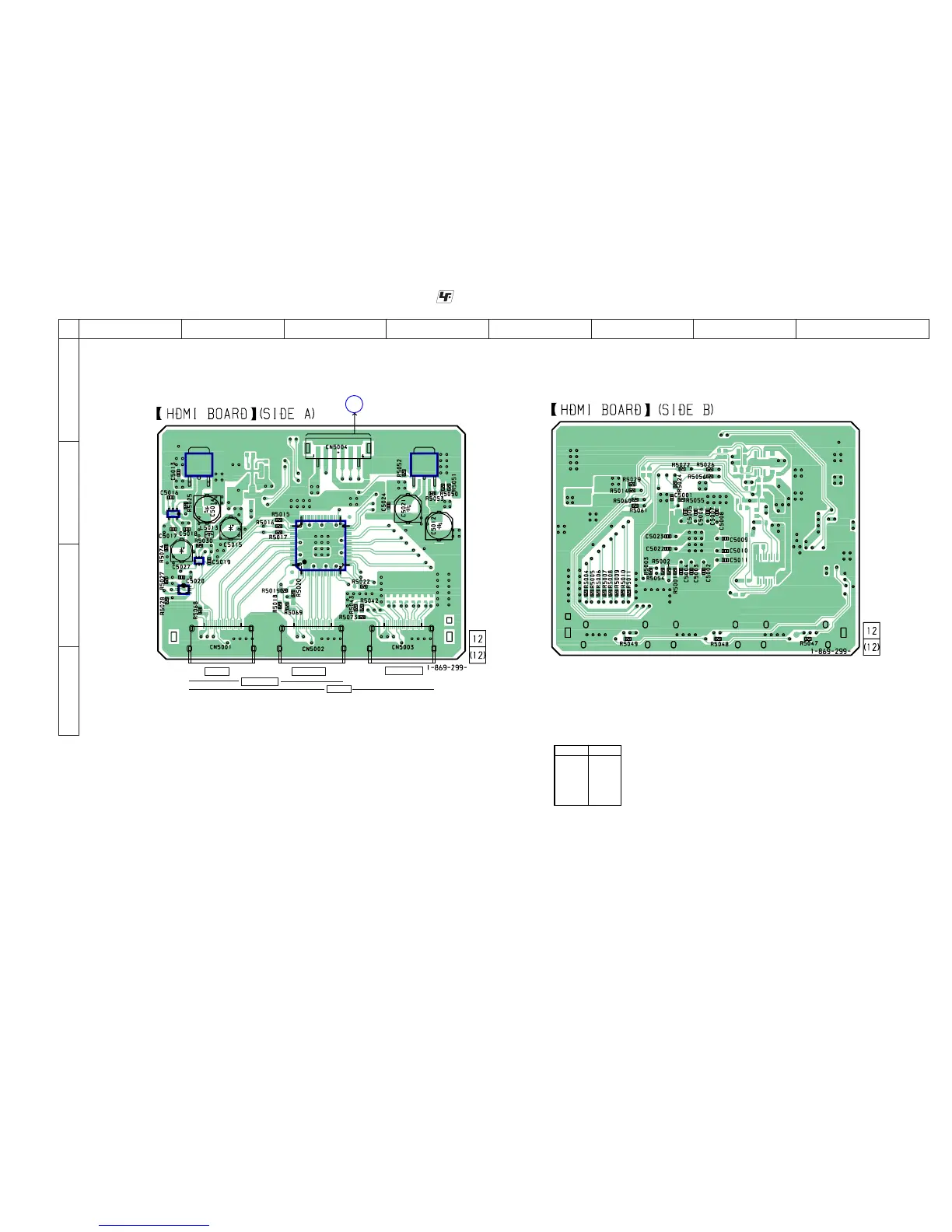

3-24. PRINTED WIRING BOARD – HDMI BOARD –
:Uses unleaded solder.
• See page 15 for Circuit Boards Location.
VIDEO
BOARD
CNP204
(Page 37)
IC5003
IC5001
IC5004
IC5002
IC5005
IC5006
DVD IN VIDEO 2 IN
MONITOR OUT
ASSIGNABLE
HDMI
X
3
1
1
5
19
1
19
1
19
1
12
A
B
C
D
345678
• Semiconductor
Location
Ref. No. Location
IC5001 B-3
IC5002 B-1
IC5003 B-2
IC5004 C-2
IC5005 C-2
IC5006 A-4

Sony STR-K900 - Fm Stereo/fm-am Receiver Specifications

General

Type	Receiver
Brand	Sony
Model	STR-K900
Number of Channels	5.1
FM Tuner	Yes
AM Tuner	Yes
Total Harmonic Distortion	0.09 %
Remote Control	Yes
Power Output	100W per channel
Speaker Load Impedance	8 ohms
Digital Inputs	1 x coaxial, 1 x optical
Video Connections	composite video
Surround Sound Formats	Dolby Digital
