STR-K880/K900
SECTION 1
GENERAL
This section is extracted
from instruction manual.

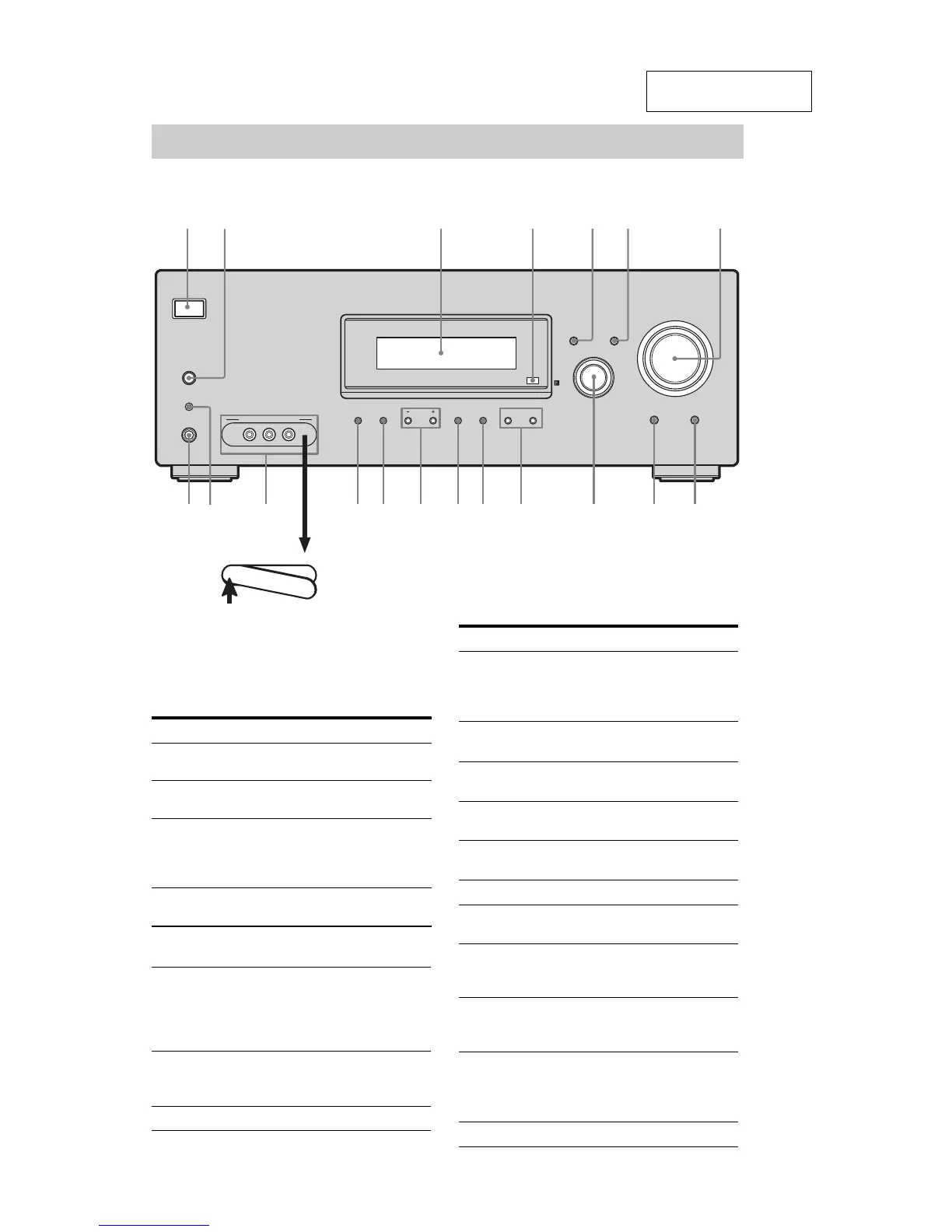

Front panel
To remove the cover
Press PUSH.
When you remove the cover, keep it out of
reach from children.
Receiver
?/1
AUTO CAL MIC
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
TUNING
MODE
TUNING 2CH A.F.D. MOVIE MUSIC MULTI CH IN MUTING
DISPLAY INPUT MODE
INPUT SELECTOR
MASTER VOLUME
1 32 5 764
98q;
qaqsql qdqfqgqhqj
PU
SH
qk
Name Function
A ?/1 Press to turn the receiver on
or off.
B SPEAKERS
(OFF/A/B/A+B)
Press to select OFF, A, B,
A+B of the front speakers
C Display The current status of the
selected component or a list
of selectable items appears
here.
D Remote sensor Receives signals from
remote commander.
Name Function
E DISPLAY Press to select information
displayed on the display.
F INPUT MODE Press to select the input
mode when the same
components are connected
to both digital and analog
jacks.
G MASTER
VOLUME
Turn to adjust the volume
level of all speakers at the
same time.
H MUTING Press to mute the sound.
I MULTI CH IN Press to select the audio
directly from the
components connected to
the MULTI CH IN jacks.
J INPUT
SELECTOR
Turn to select the input
source to playback.
K MOVIE,
MUSIC
Press to select sound fields
(MOVIE, MUSIC).
L A.F.D. Press to select A.F.D.
mode.
M 2CH Press to select 2CH
STEREO mode.
N TUNING +/– Press to scan a station.
O TUNING MODE Press to select the tuning
mode.
P MEMORY/ENTER Press to store a station or
enter the selection when
selecting the settings.
Q VIDEO 3 IN/
PORTABLE AV IN
jacks
To connect a camcorder or
video game.
R AUTO CAL MIC
jack
Connects to the supplied
ECM-AC2 optimizer
microphone for the Auto
Calibration function.
S PHONES jack Connects to a headphone.
