24
GB
Location of Parts and Basic Amplifier Operations
v
8 DISPLAY button
Press repeatedly to change the information on the
display window as follows:
Index name of the component or the preset station*
v
FUNCTION button indication or frequency**
v
Sound field applied to the program source
* Index name appears only when you have assigned one to the
component or preset station (see page 42). Index name does not
appear when only blank spaces have been entered, or it is the
same as the function button.
** Frequency appears only when the tuner is selected.
9 DIMMER button
Press repeatedly to adjust the brightness of the display.
0 Use the SOUND FIELD buttons to enjoy surround
sound. For details, see “Enjoying Surround Sound”
starting from page 27.
A.F.D. button / indicator
Press to set the receiver to automatically detect the
type of audio signal being input and perform proper
decoding (if necessary).
2CH button / indicator
Press to output sound from only the front (left and
right) speakers.
MODE button / indicator
Press to activate the sound field selection mode (page
28).
qa MULTI CHANNEL DECODING indicator
This indicator lights up when the unit is decoding
signals recorded in a multi channel format.

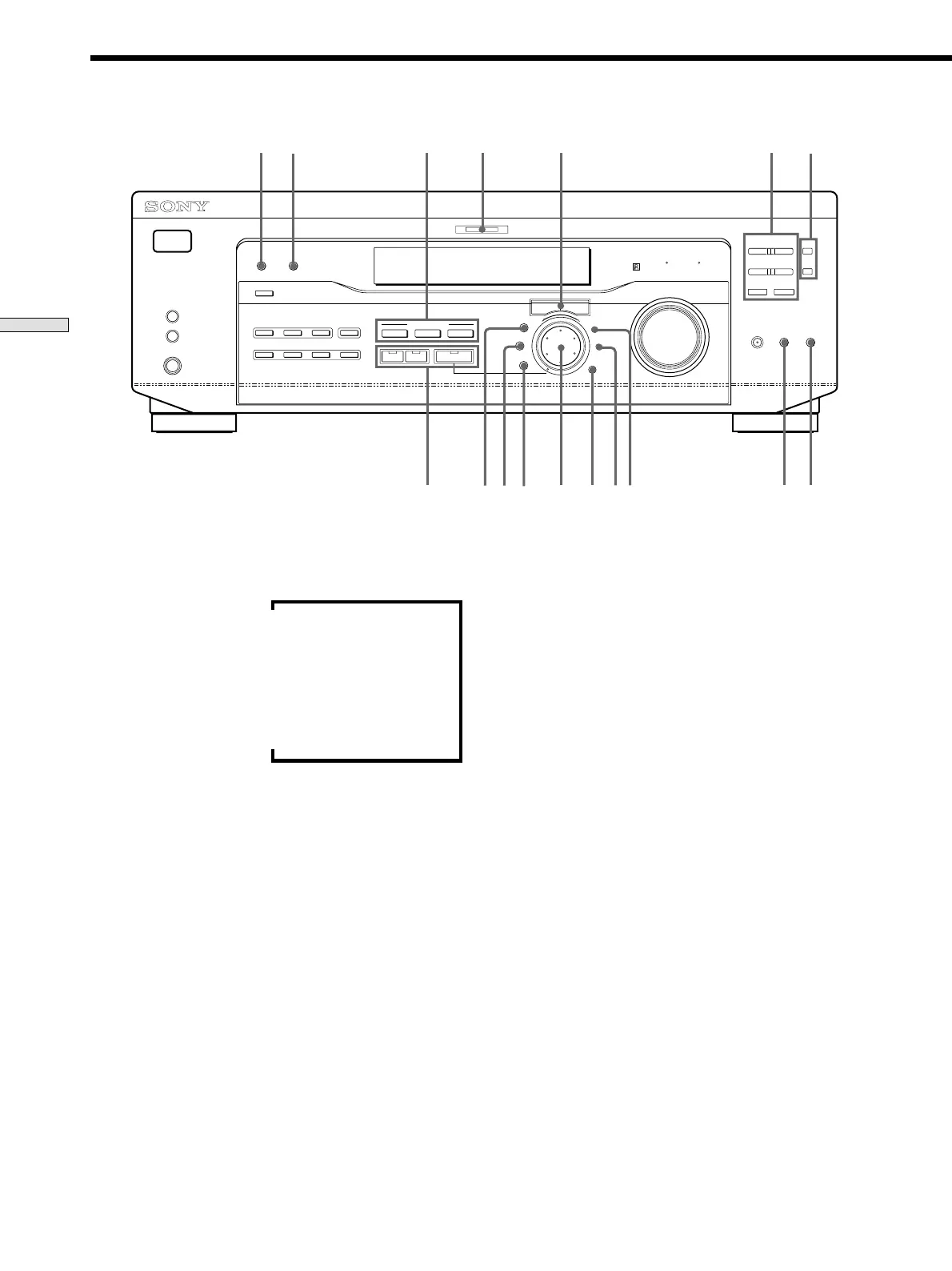

Front Panel Parts Description
8qaw;qs
qd qf
qh qg9
q;
qkql wswdwfwaqj
MULTI CHANNEL DECODING
MASTER VOLUME
DISPLAY
INPUT MODE
VIDEO
MD/TAPE CD TUNER AUX
DVD/LD TV/SAT
5.1CH INPUT
CINEMA STUDIO
LEVEL
I
–
i
+
SET UP
BASS BOOST TONE
FM/AM
MUTING
TONE
BASS
BOOST
SHIFT
MEMORY
FM MODE
PRESET
– TUNING +
– TUNING +
NAME
ENTER
SUR
BASS/
TREBLE
SOUND FIELD
A. F. D.
ABC
2CH MODE
DIMMER
SPEAKERS
R ON r OFF
A
PHONES
B
? / 1
To Next Page
