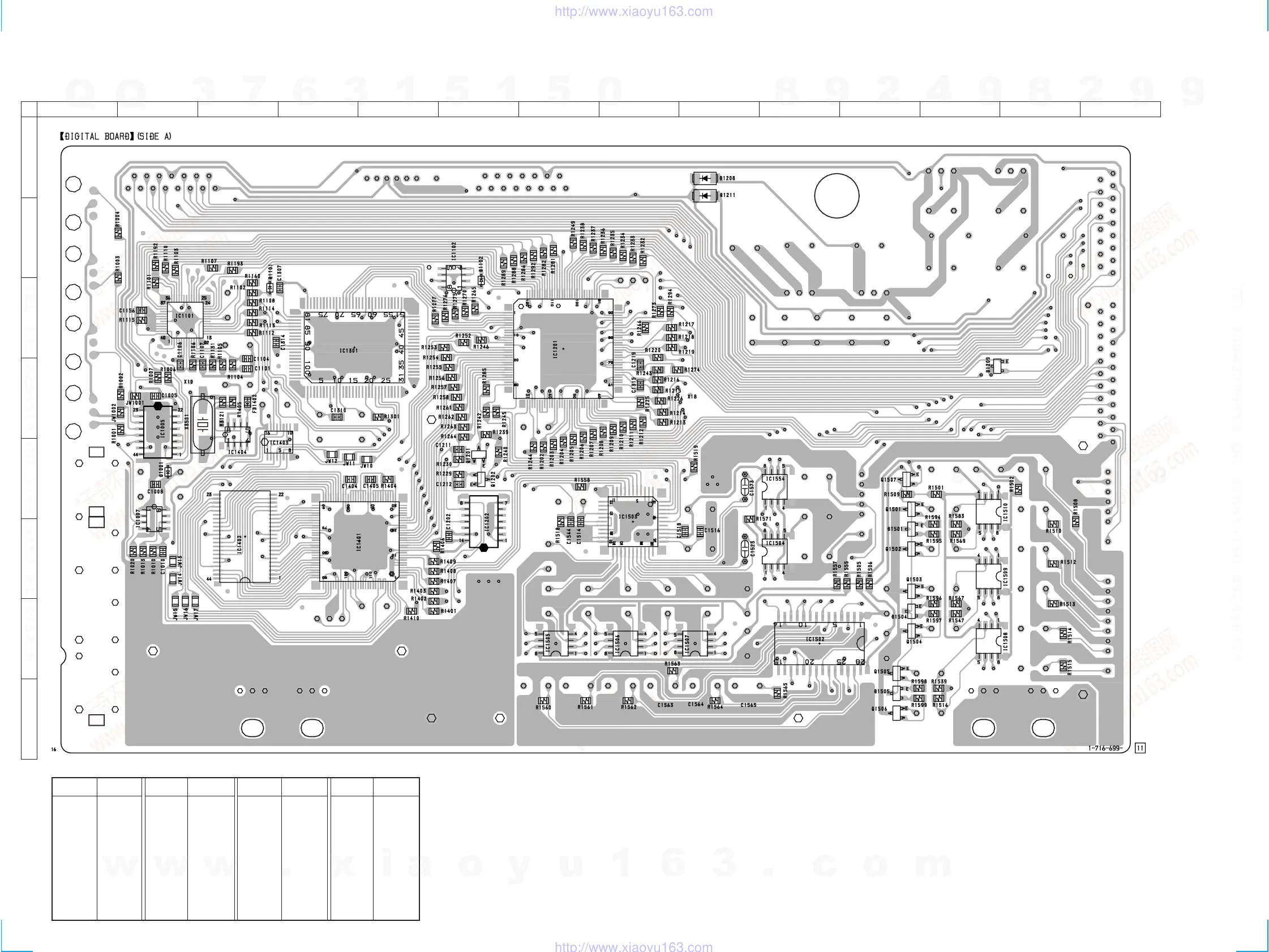

4-7. PRINTED WIRING BOARD DIGITAL SECTION(1/2) • See page 11 for circuit board location.
12
A
B
C
D
E
F
G
H
34567891011121314
• Semiconductor Location
Ref. No. Location Ref. No. Location
D1001 E-2
D1101 C-3
D1102 C-6
D1208 A-9
D1209 D-12
D1211 A-9
D1501 F-11
D1504 G-11
D1505 H-11
IC1005 D-2
Ref. No. Location
IC1007 E-2
IC1101 C-2
IC1102 C-6
IC1201 C-7
IC1202 F-6
IC1301 C-4
IC1401 F-5
IC1402 F-3
IC1403 E-3
IC1404 D-3
IC1502 G-10
IC1503 F-8
IC1504 F-10
IC1505 G-7
IC1506 G-8
IC1507 G-9
IC1508 G-12
IC1509 F-12
IC1510 E-12
IC1554 E-10
Q1201 E-6
Q1202 E-6
Q1501 E-11
Q1502 F-11
Q1503 F-11
Q1504 G-11
Q1505 G-11
Q1506 H-11
Q1507 E-11
