Sony STR-V929X - Printed Wiring Board Rear AMP Section

STR-DB830/DB930/V929X
— 31 — — 32 —

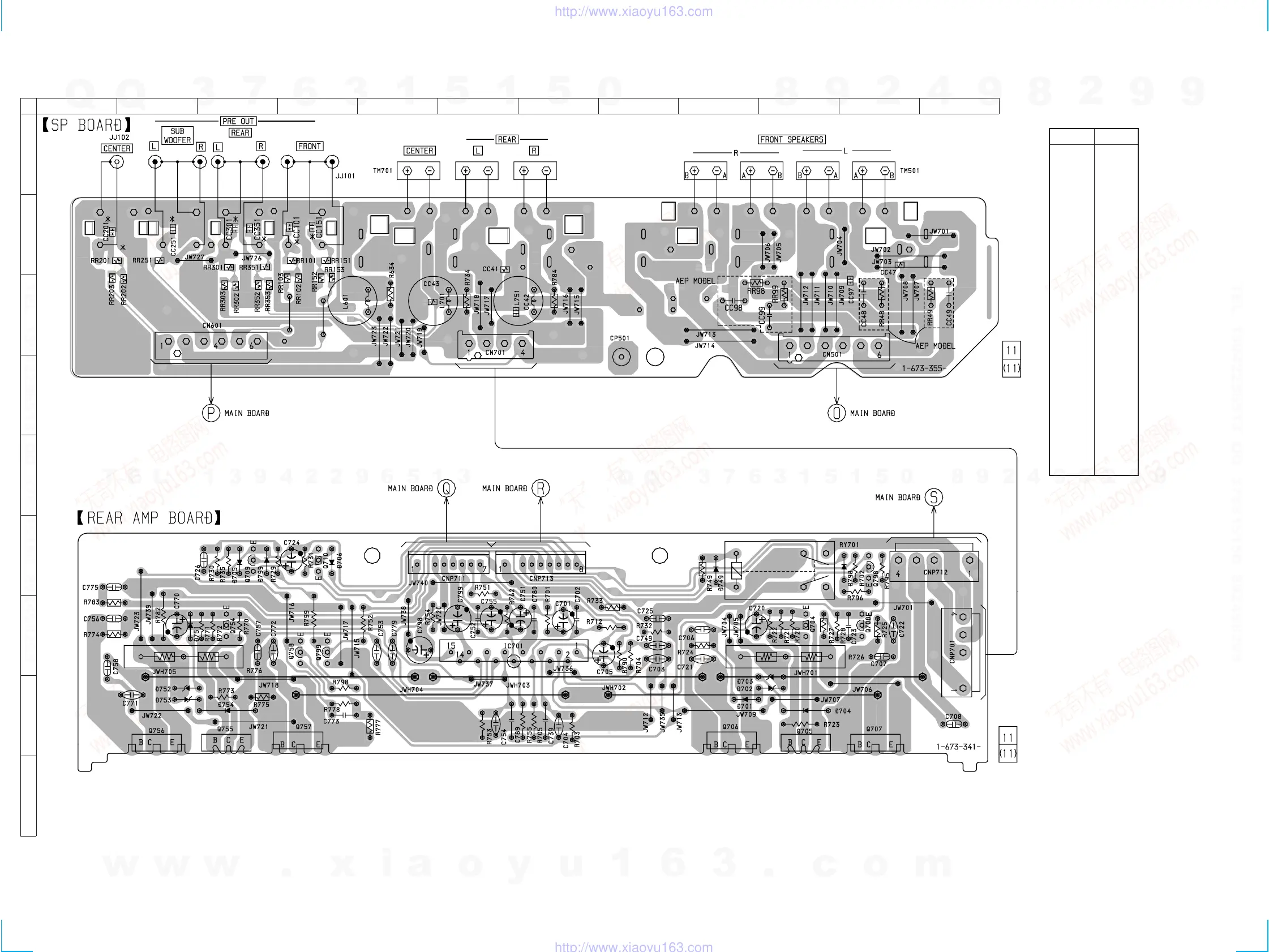

4-13. PRINTED WIRING BOARD REAR AMP SECTION • See page 11 for circuit board location.
(PAGE 44) (PAGE 43)
(PAGE 43)(PAGE 43)
(PAGE 44)
AEP MODEL
12
A
B
C
D
E
F
G
H
I
3456789101112
16
Ref. No. Location
D701 H-9
D702 H-10
D703 H-10
D704 H-10
D705 F-3
D706 F-4
D749 F-9
D751 G-2
D752 H-2
D753 H-2
D754 H-3
D798 F-11
D799 F-3
IC701 G-6
Q704 G-10
Q705 H-10
Q706 H-9
Q707 H-11
Q708 G-11
Q709 F-3
Q710 F-4
Q754 G-3
Q755 H-3
Q756 H-2
Q757 H-4
Q758 G-4
Q798 F-11
Q799 G-4
• Semiconductor
Location
