Sony TA-AV581 - Controls and Connections; Front Panel Control Identification; Rear Panel Connection Terminals

To Next Page

To Previous Page

SECTION 2

GENERAL

— 3 —

1 POWER switch (I/u)

2 DOLBY PRO LOGIC indicator

3 SURROUND MODE buttons

4 +, – buttons

5 CONTROL MODE buttons

6 SUPER WOOFER indicator

7 MASTER VOLUME control

8 WOOFER ON/OFF button

9 PHONO button

!º TUNER button

!¡ CD button

!™ TAPE button

!£ VIDEO 2 button

!¢ VIDEO 1 button

!∞ SOUND FIELD buttons

!§ CENTER MODE button

!¶ PHONES jack

1 REAR SPEAKERS

2 AC OUTLET

(AEP, Singapore, Australian Model)

3 AC power cord

4 WOOFER SPEAKER

5 CENTER SPEAKER

6 FRONT SPEAKERS

7 VIDEO 1

8 VIDEO 2

9 TAPE

!º CD

!¡ TUNER

!™ PHONO

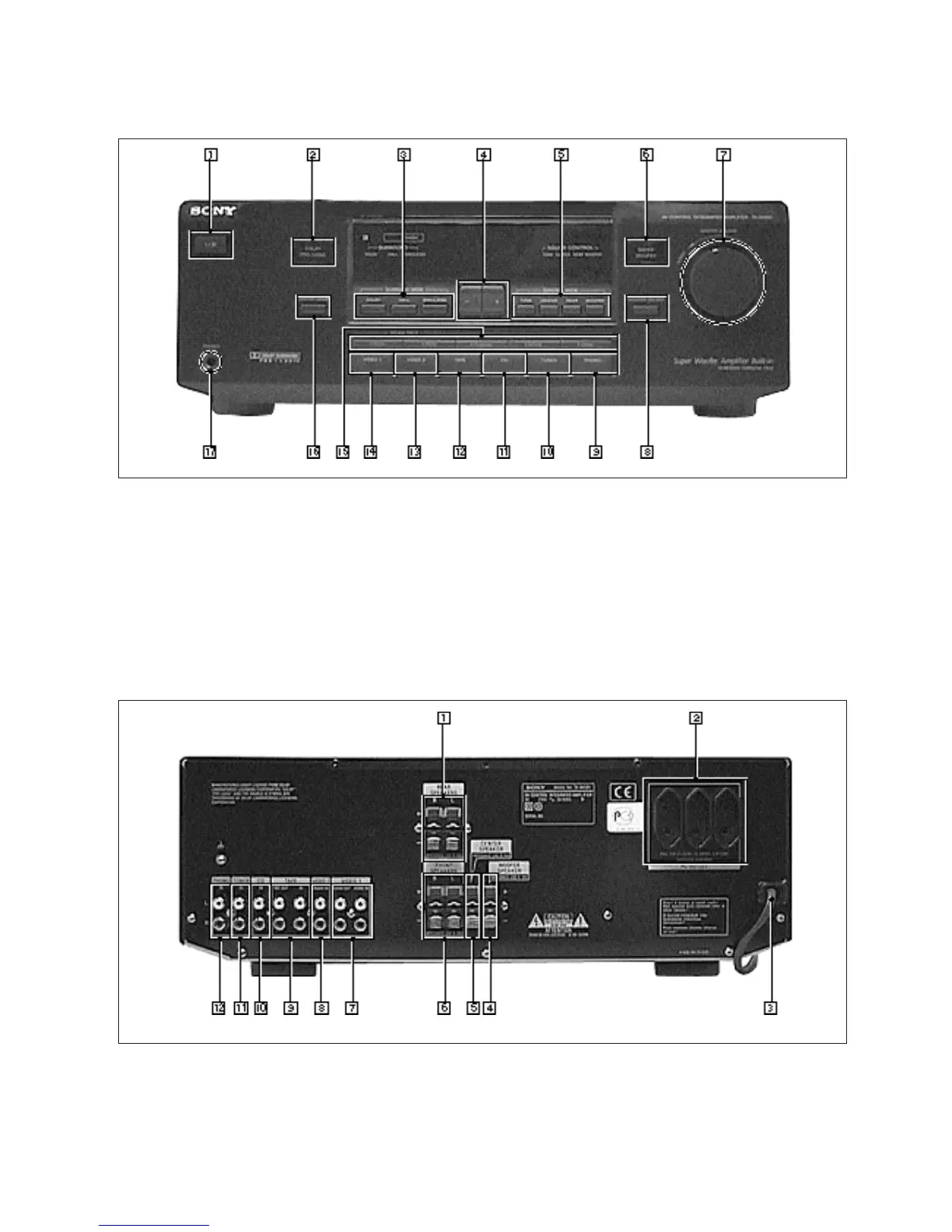

LOCATION AND FUNCTION OF CONTROLS

[FRONT PANEL]

[REAR PANEL]

Photo : AEP, Singapore, Australian Model
