Sony TA-AV581 - Schematic Diagram - Power Section

Sony TA-AV581
25 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
TA-AV581
— 11 —
— 12 —

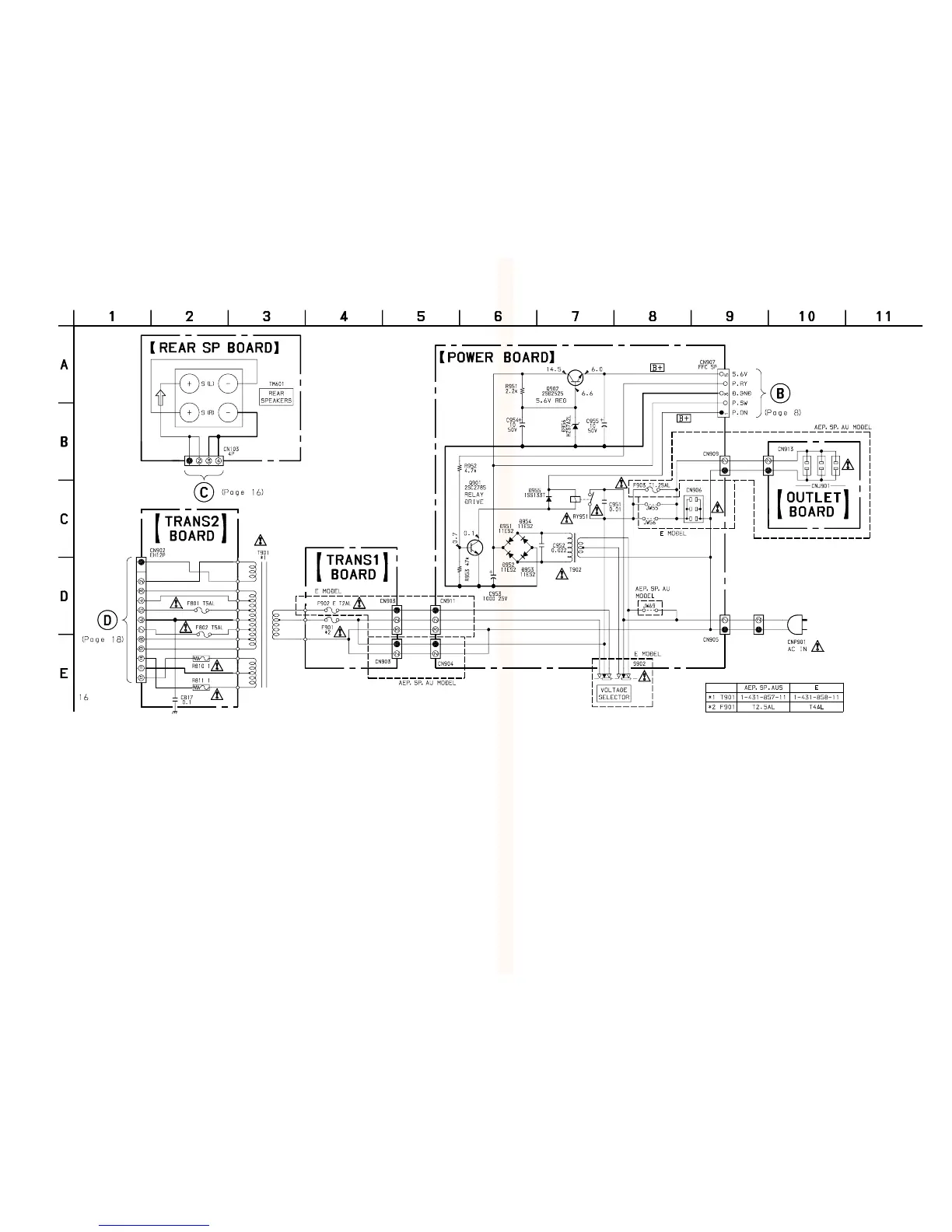

3-5. SCHEMATIC DIAGRAM — POWER SECTION—
