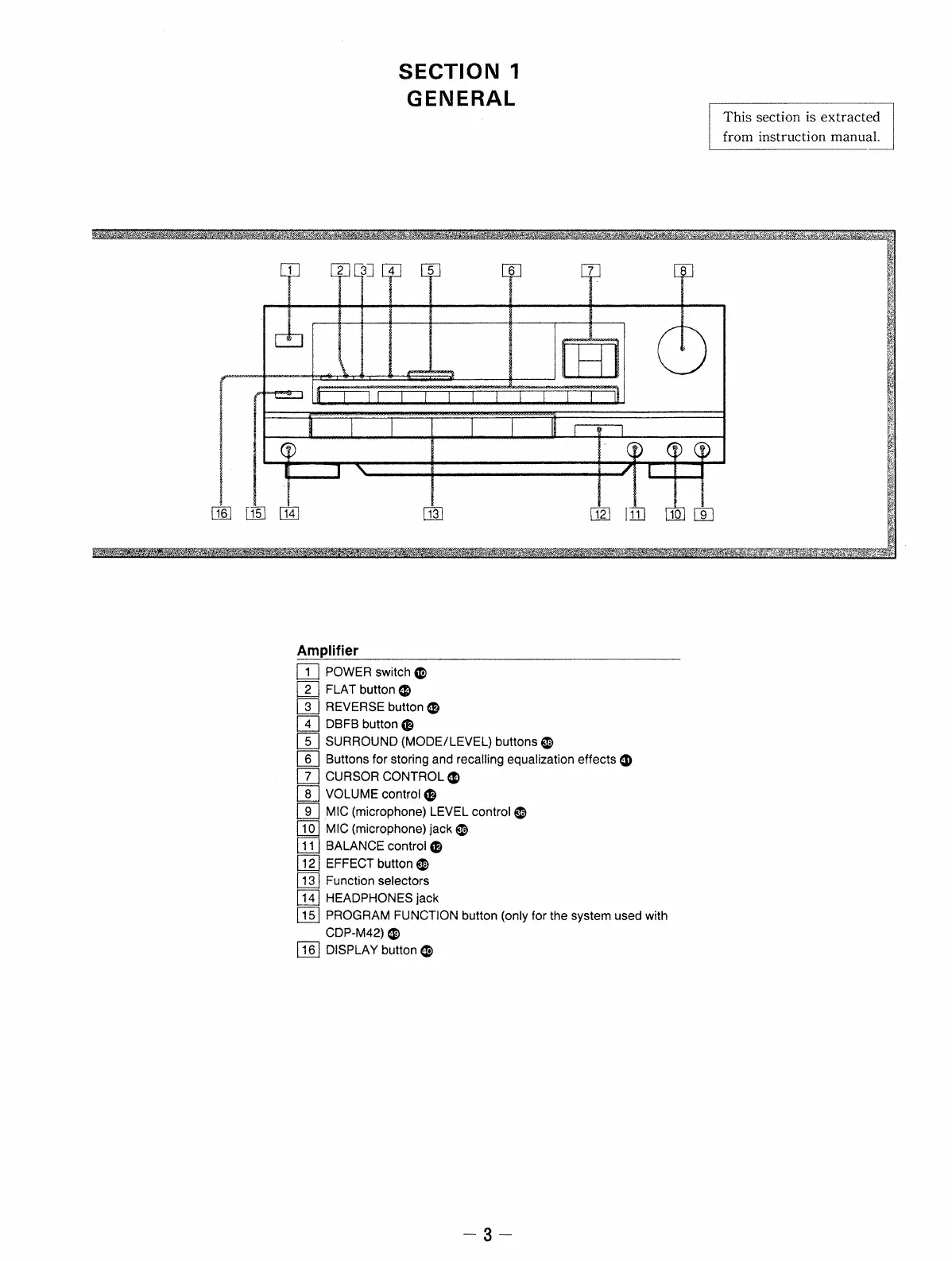

Sony TA-D505 - General Information and Controls; Amplifier Front Panel Controls

SECTION 1
GENERAL
This section is extracted
from instruction manual.
ee
ae
Amplifier
POWER switch ©
2 | FLAT button @
3 | REVERSE button @
4 | DBFB button @
5 | SURROUND (MODE/LEVEL) buttons @
Buttons for storing and recalling equalization effects @
7_| CURSOR CONTROL @®
VOLUME control ®
MIC (microphone) LEVEL control @
MIC (microphone) jack €&
1} BALANCE control ®
2| EFFECT button @®
3| Function selectors
14} HEADPHONES jack
PROGRAM FUNCTION button (only for the system used with
CDP-M42) @®
DISPLAY button @
