Sony TA-DX80 - DISASSEMBLY

4
TA-DX80
• This set can be disassembled in the order shown below.

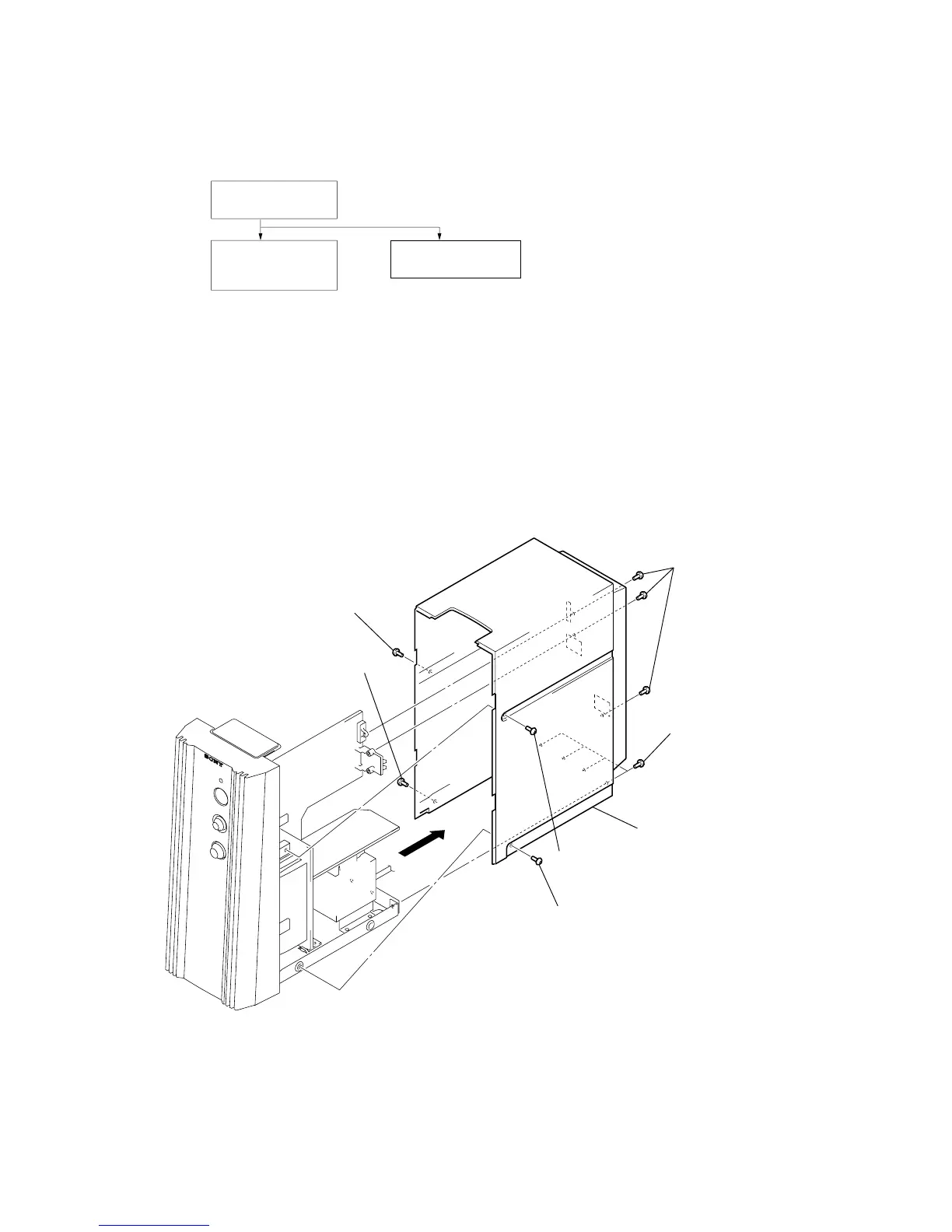

3-1. DISASSEMBLY FLOW
SECTION 3
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
3-2. CASE
3-3. FRONT PANEL
SECTION
(Page 5)
3-2. CASE
(Page 4)
3-4. MAIN BOARD
(Page 5)
1 screw (case3 TP2)
(8 mm)
1 screw (case3 TP2)
(10 mm)
1 screw (case3 TP2)
(10 mm)
1 screw (case3 TP2)
(8 mm)
2 three screw
s
(BVTP3 × 8)
2 four screws
(BVTP3 × 8)
3 case
