Sony TA-FA777ES - Page 5

5

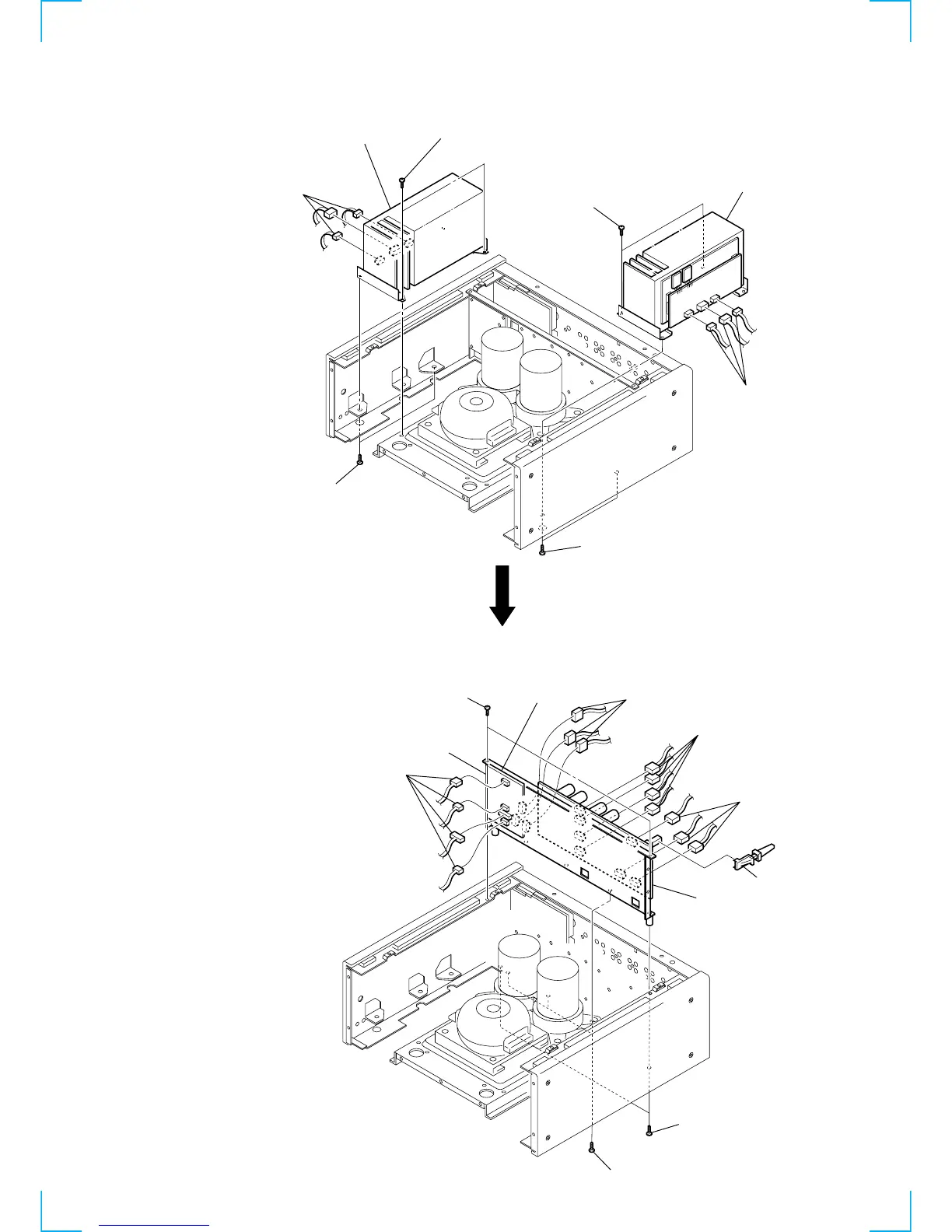

HEAT SINK (L) / (R) ASSY
MAIN A board, PS-PRE board
4 three connectors
(CN501, 502, 503)
3 heat sink (L) assy
2 two screws
(4 × 8)
2 two screws
(4 × 8)
5 heat sink (R) assy
6 three connectors
(CN551, 552, 553
)
1 two screws
(4 × 8)
1 two screws
(4 × 8)
2 three screws
(BV 3
× 8)
1 two screws
(3
× 8)
4 rod
MAIN A board
8 three connectors
(CN203, 204, 205)
3 two screws
(BV 3
× 8)
7 four connectors
(CN401, 402, 403, 404)
6 three connectors
(CN51, 52, 53)
PS-PRE board
9 Chassis (I)
5 four connectors
(CN802, 803, 804, 805)
