Sony TA-S9D - Front Amp Section Schematic Diagram (Part 2)

Sony TA-S9D
28 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
TA-S9D
1313
(Page 12)
(Page 15)
(Page 15)
(Page 19)
(Page 19)
(Page 19)

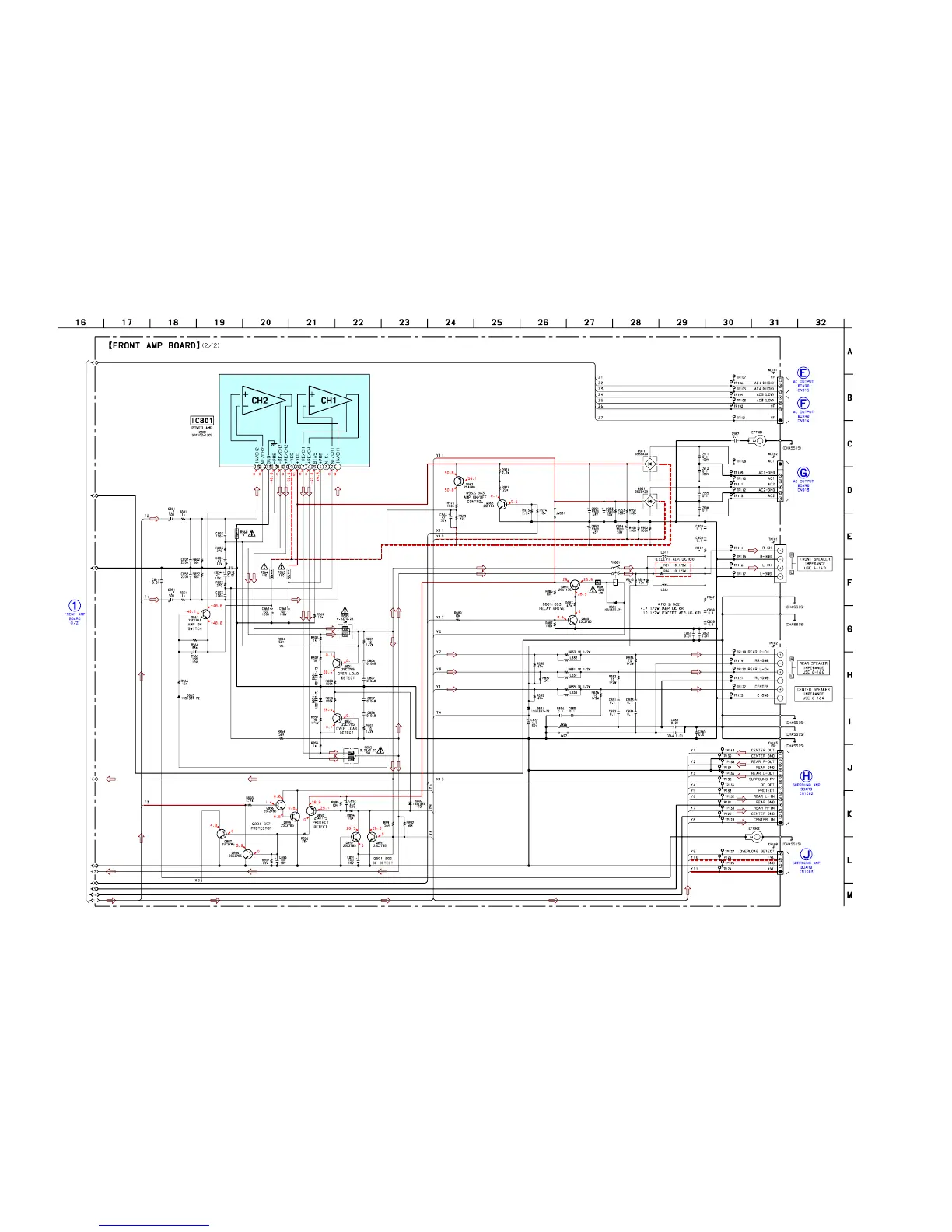

5-4. SCHEMATIC DIAGRAM – FRONT AMP Section (2/2) –
