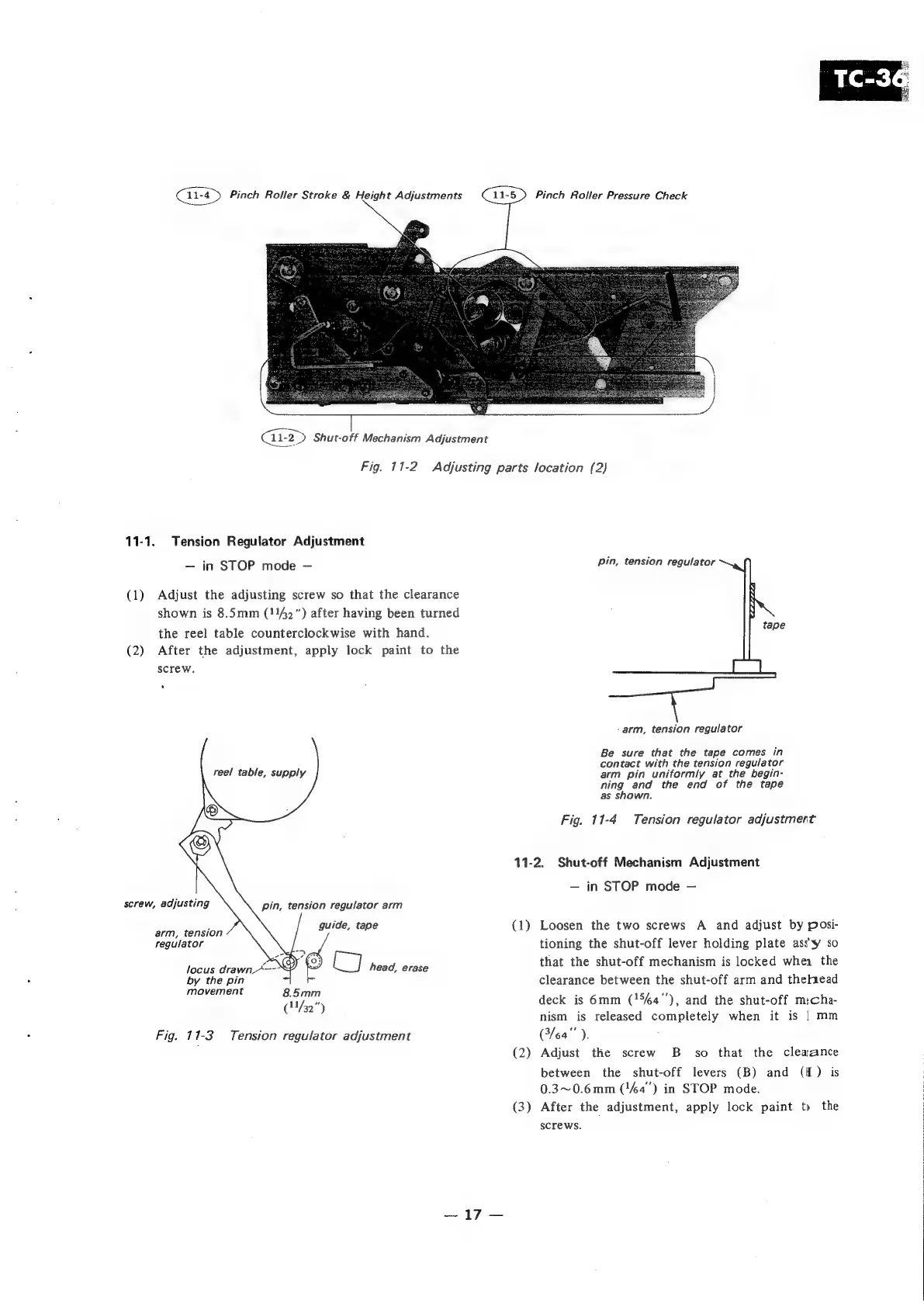

Sony TC-366 - Tension Regulator Adjustment; Shut-off Mechanism Adjustment

Pinch Roller Stroke & Height Adjustments
aI
11-2 ) Shut-off Mechanism Adjustment
Pinch Roller Pressure Check
Fig. 11-2. Adjusting parts location (2)
11-1. Tension Regulator Adjustment
— in STOP mode —
(1) Adjust the adjusting screw so that the clearance
shown is 8.5mm (114,") after having been turned
the reel table counterclockwise with hand.
(2) After the adjustment, apply lock paint to the
screw.
reel table, supply
screw, adjusting pin, tension regulator arm
arm, tension
regulator
©
guide, tape
locus drawn +~--->
a
fo) C7 head, erase
by the pin
movement 8.5mm
(4452")
Fig. 11-3 Tension regulator adjustment
—17—
pin, tension regulator
tape
-arm, tension regulator
Be sure that the tape comes in
contact with the tension regulator
arm pin uniformly at the begin-
ning and the end of the tape
as shown.
Fig. 11-4 Tension regulator adjustment
11-2. Shut-off Mechanism Adjustment
— in STOP mode —
(1) Loosen the two screws A and adjust by posi-
tioning the shut-off lever holding plate as’y so
that the shut-off mechanism is locked whei the
clearance between the shut-off arm and thehead
deck is 6mm (1544"'), and the shut-off m:cha-
nism is released completely when it is | mm
(/ea"’ ).
(2) Adjust the screw B so that the cleaance
between the shut-off levers (B) and (H) is
0.3~0.6mm (444’) in STOP mode.
(3) After the adjustment, apply lock paint t» the
screws.
