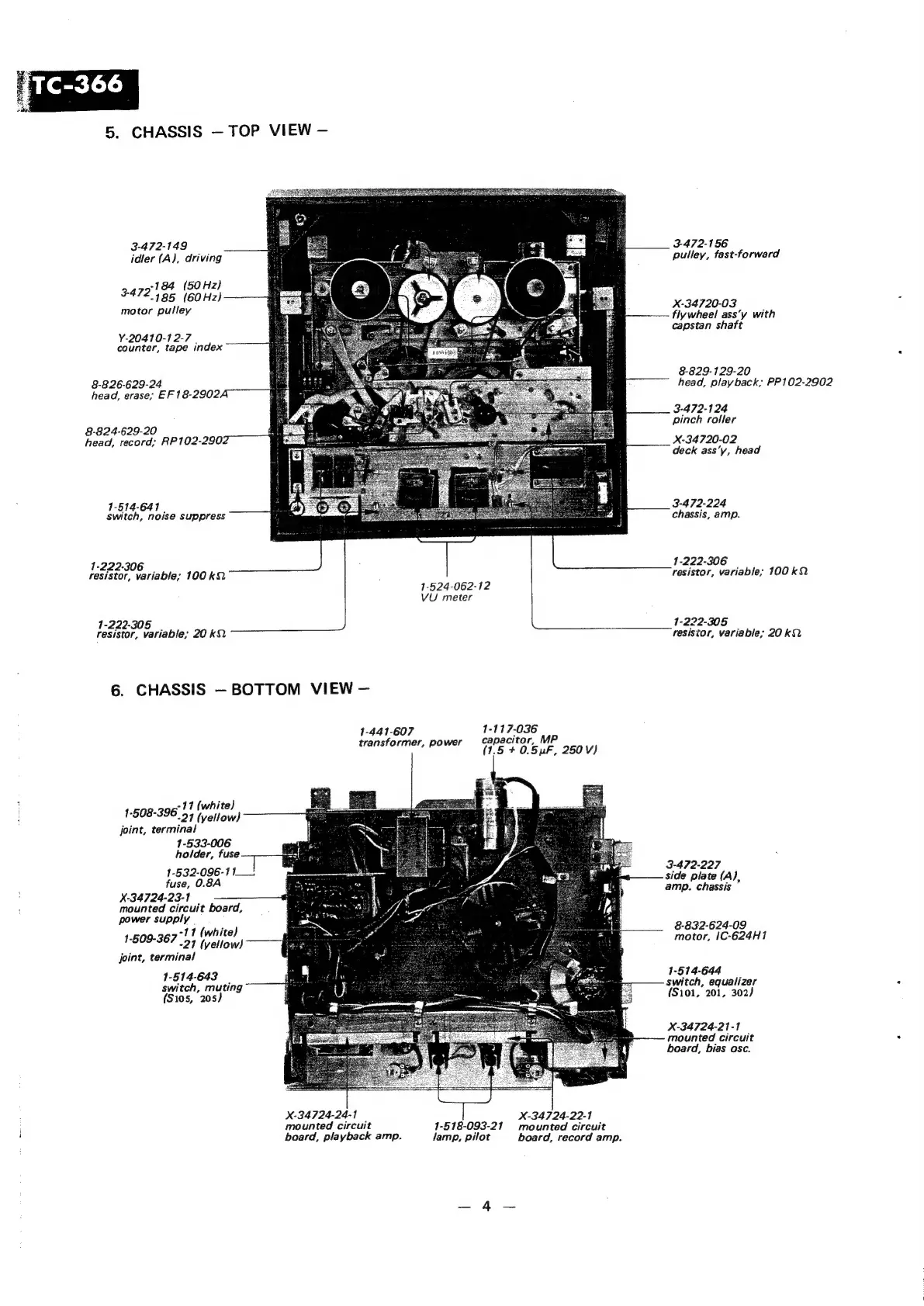

Sony TC-366 - CHASSIS - BOTTOM VIEW - Wu

3-472-149
idler (A), driving
-184 (50Hz)
$472_485 (60Hz)
motor pulley
Y-20410-12-7 |
counter, tape index
8-826-629-24
head, erase; EF 18-2902A
8-824-629-20
head, record; RP102-290.
171-514-641 |
switch, noise suppress
1-222-306
resistor, variable; 100k
1-524-062-12
VU meter
171-222-305
|
1-222-305
resistor, variable; 20k
6. CHASSIS — BOTTOM VIEW —
1-441-607 1-117-036
transformer,
power
capacitor,
MP
(1.5
+
O.5uF,
250V)
-11 (white)
1508-396 93 (yellow)
joint, terminal
1-533-006
holder, fuse
1-532-096-11__
fuse, 0.8A
X-34724-23-1
mounted circuit board,
power supply .
-11 (white)
109-367 94 (yellow)
joint, terminal
1-514-643
switch, muting
(S105, 205)
X-34724-22-1
1-518-093-21 mounted circuit
X-34724-24-1
i
mounted
circuit
:
board,
playback
amp.
lamp, pilot board, record amp.
3472-156
pulley, fast-forward
X-34720-03
flywheel ass‘y with
capstan shaft
8829-129-20
head, playback; PP102-2902
3-472-124
pinch roller
X-34720-02
deck ass’y, head
3-472-224
chassis, amp.
171-222-306
resistor, variable; 100kQ
resistor, variable; 20k
3-472-227
side plate (A),
amp. chassis
8-832-624-09
motor, 1C-624H1
1-514-644
switch, equalizer
(S101, 201, 302)
X-34724-21-1
mounted circuit
board, bias osc.
