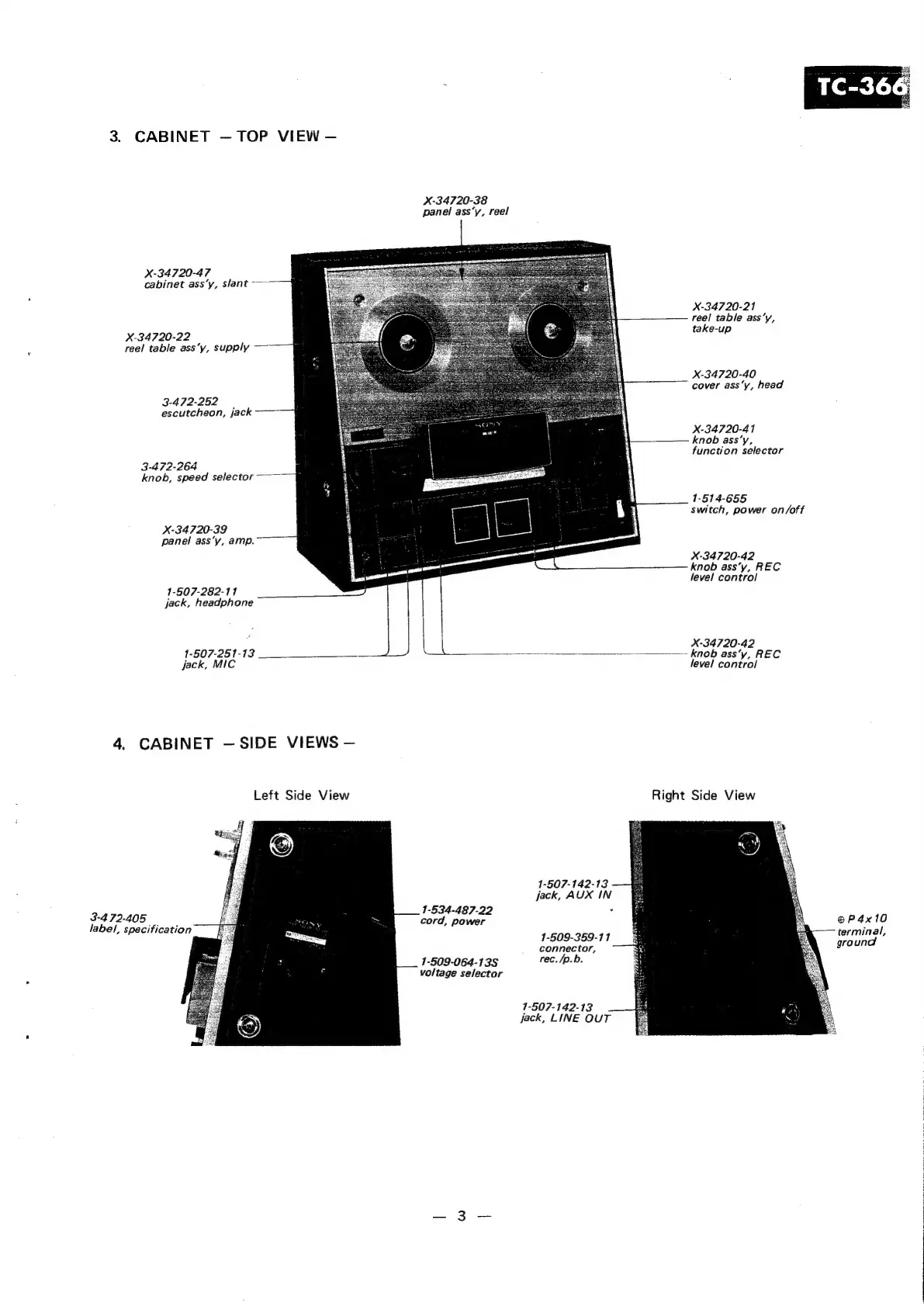

3. CABINET — TOP VIEW —
X-34720-38
panel assy, reel
X-34720-47
cabinet ass’y, slant ~
X-34720-21
reel table ass’y,
X-34720-22
take-up
ree! table ass‘y, supply ——
_X-34720-40
cover ass’y, head
3-472-252
escutcheon, jack
X-34720-41
knob ass’y,
function selector
3-472-264
knob, speed selector
1-514-655
Switch, power on/off
X-34720-39
panel ass’‘y, amp.
X-34720-42
knob ass’y, REC
”
level
control
1-507-282-1171
jack, headphone
X-34720-42
1-507-251-13 : 7 knob ass’'y, REC
jack, MIC level control
4. CABINET — SIDE VIEWS —
Left Side View Right Side View
1-507-142-13
jack, AUX IN
1-534-487-22 7
cord, power
@P4x10
terminal,
ground
3-4 72-405
label,
specification
bdo
connector,
1-509-064-13S
rec.
/p.b.
voltage selector
1-507-142-13
Jack, LINE OUT
