Sony TC-366 - Disassembly

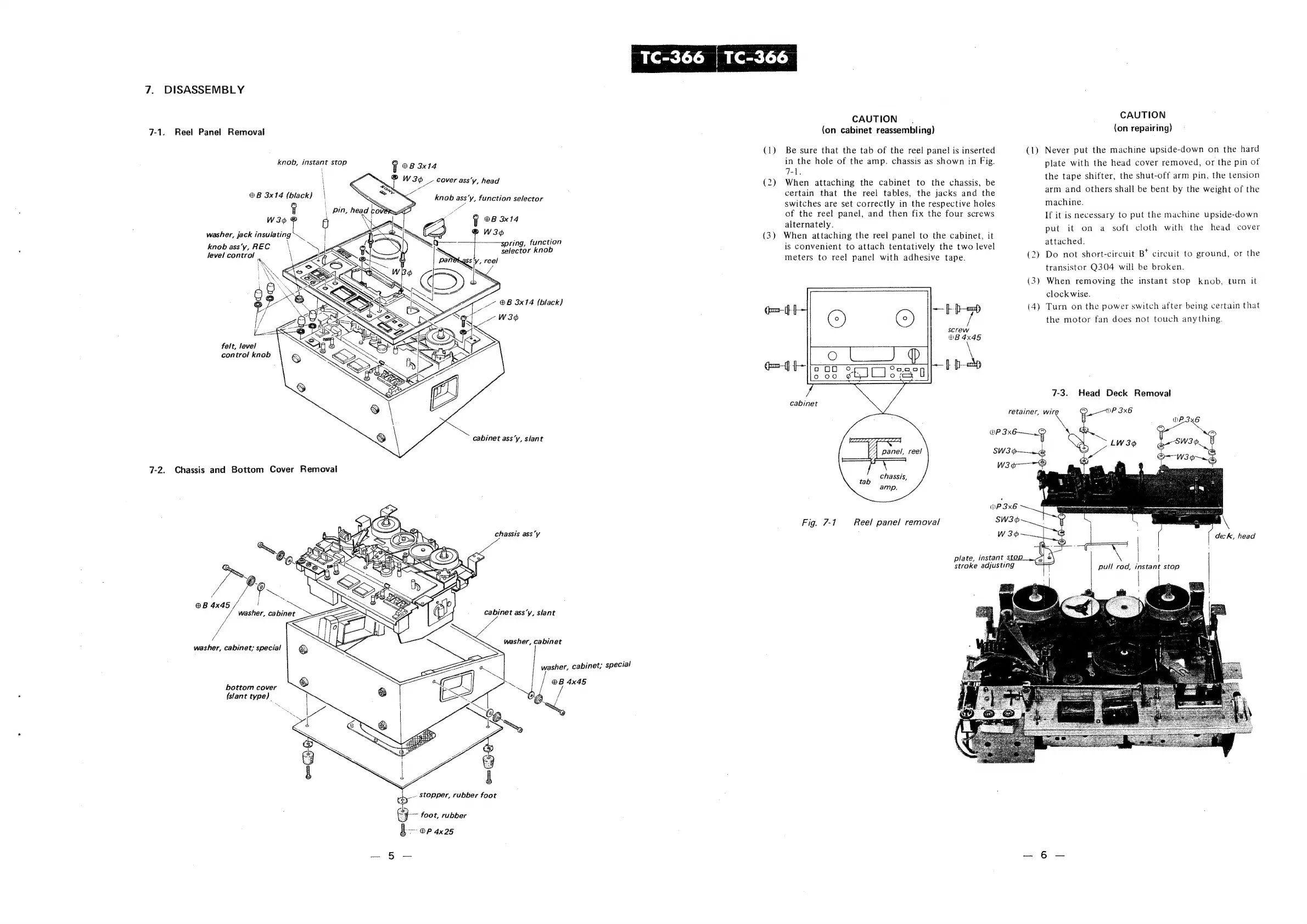

7. DISASSEMBLY
7-1. Reel Panel Removal
knob, instant stop g ®B 3x14
}
\
~
@
el
ee
Cover
ass’y,
head
se
>
S:
DNR,
®B 3x14 (black) |
ee
g | pin, head ¢
W 3 \
washer, jack insulating ZA]
knob ass‘y, REC
level control a
knob ass’y, function selector
vs
ye
Q ©8 3x14
W3¢
pring, function
selector knob
W3o
felt, level
control knob
cabinet ass’y, slant
7-2. Chassis and Bottom Cover Removal
chassis ass’y
i
@B 4x45
cabinet ass’y, slant
sher, cabinet
washer,
cabinet;
special
a me eae
washer, cabinet
washer, cabinet; special
bottom cover
(slant type) _
_- stopper, rubber foot
oe
foot,
rubber
§——
ep
4x25
CAUTION
(on cabinet reassembling)
(1) Be sure that the tab of the reel panel is inserted
in the hole of the amp. chassis as shown in Fig.
7-1.
(2) When attaching the cabinet to the chassis, be
certain that the reel tables, the jacks and the
switches are set correctly in the respective holes
of the reel panel, and then fix the four screws
alternately.
(3) When attaching the reel panel to the cabinet, it
is convenient to attach tentatively the two level
meters to reel panel with adhesive tape.
screw
®B 4x45
Ssw3
W3¢
chassis,
amp.
WP 3x6
Fig. 7-1 Reel panel removal
plate, instant stop
stroke adjusting
retainer, wire
WP 3x6—__.¢
CAUTION
(on repairing)
(1) Never put the machine upside-down on the hard
plate with the head cover removed, or the pin of
the tape shifter, the shut-off arm pin, the tension
arm and others shall be bent by the weight of the
machine.
If it is necessary to put the machine upside-down
put it on a soft cloth with the head cover
attached.
(2) Do not short-circuit B* circuit to ground, or the
transistor Q304 will be broken.
(3) When removing the instant stop knob, turn it
clock wise.
(4) Turn on the power switch after being certain that
the motor fan does not touch anything.
7-3. Head Deck Removal
| a
\
deck, head
