pin, tension
regulator arm
good

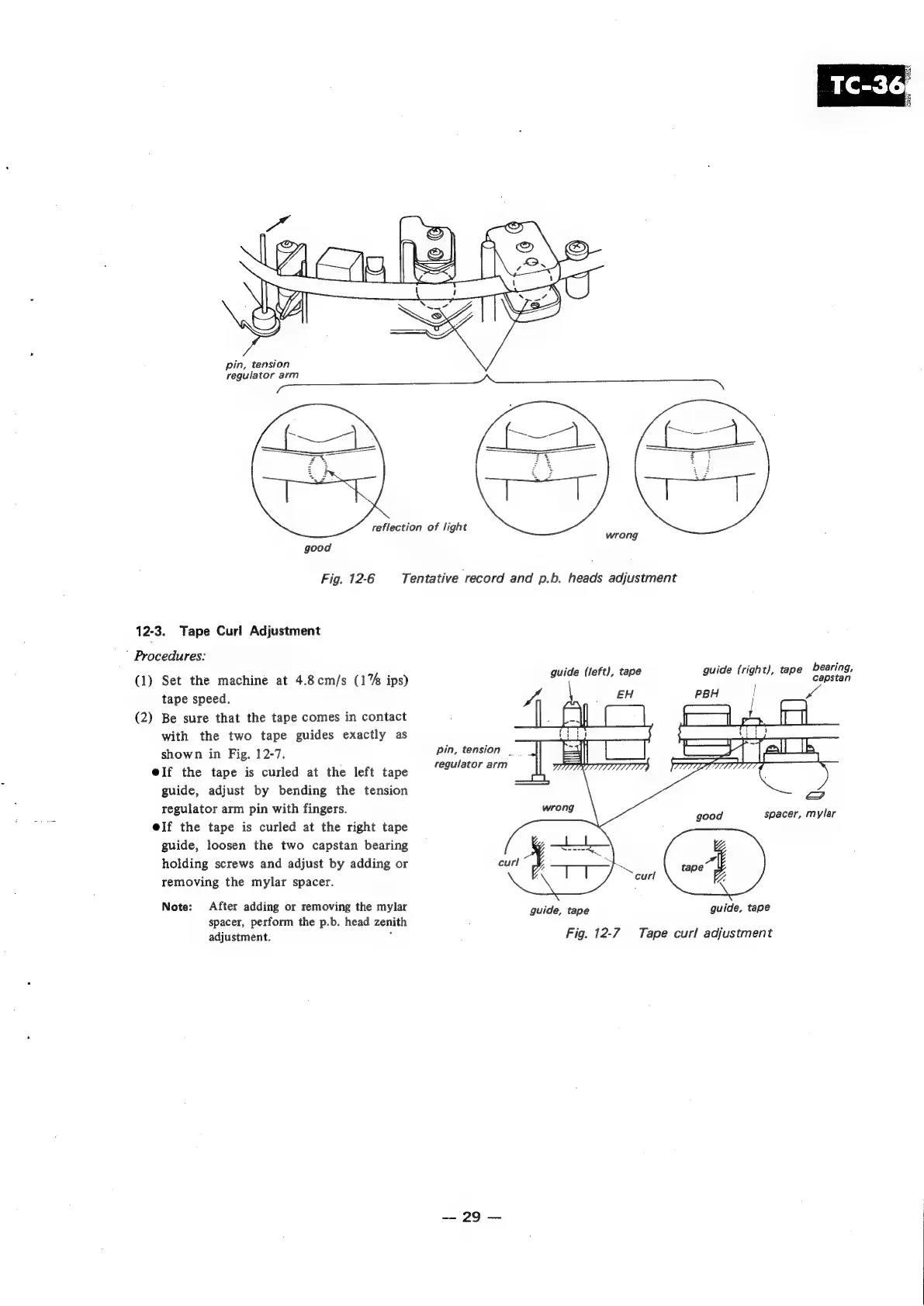

Fig. 12-6
12-3. Tape Curl Adjustment
' Procedures:
(1) Set the machine at 4.8cm/s (1% ips)
tape speed.
(2) Be sure that the tape comes in contact
with the two tape guides exactly as
shown in Fig. 12-7,
elf the tape is curled at the left tape
guide, adjust by bending the tension
regulator arm pin with fingers.
elf the tape is curled at the right tape
guide, loosen the two capstan bearing
holding screws and adjust by adding or
removing the mylar spacer.
Note: After adding or removing the mylar
spacer, perform the p.b. head zenith
adjustment.
reflection of light
Tentative record and p.b. heads adjustment
At), tape beeing,
guide (right), tap pape
guide (left), tape
H BH |
A \ P.
pin, tension _
regulator arm
good spacer, mylar
curl q = 4 tape ”
curl Vie
guide, tape
guide, tape
Fig. 12-7 Tape curl adjustment
— 29 —
