TC-C5/C521
SERVICE NOTE ,

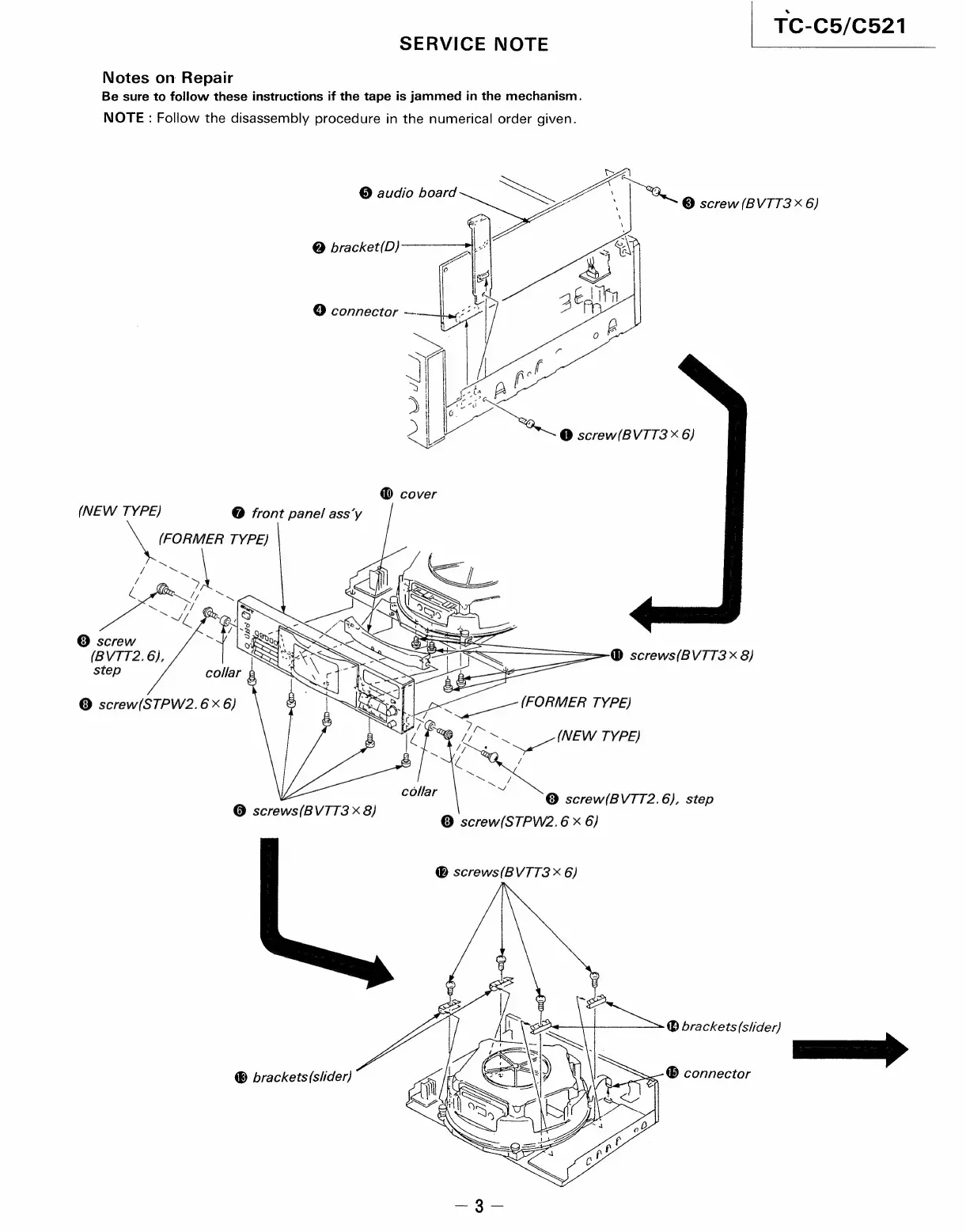

Notes on Repair
Be sure to follow these instructions if the tape is jammed in the mechanism.
NOTE : Follow the disassembly procedure in the numerical order given.
@ audio board
@ bracket(D)
@ cover
(NEW
TYPE)
@
front
panel
ass‘y
(FORMER TYPE)
© screw(STPW2. 6x6) . x3 | FORMER TYPE)
® screw(BVTT2. 6), step
@ screws(BVTT3X8
crest ) © screw(STPW2. 6 x 6)
@ screws(BVTT3 X 6)
® brackets(slider)
ee
®
brackets
(slider)
.-
®
connector
