Sony TC-S3 Service Manual

TC-S3
8

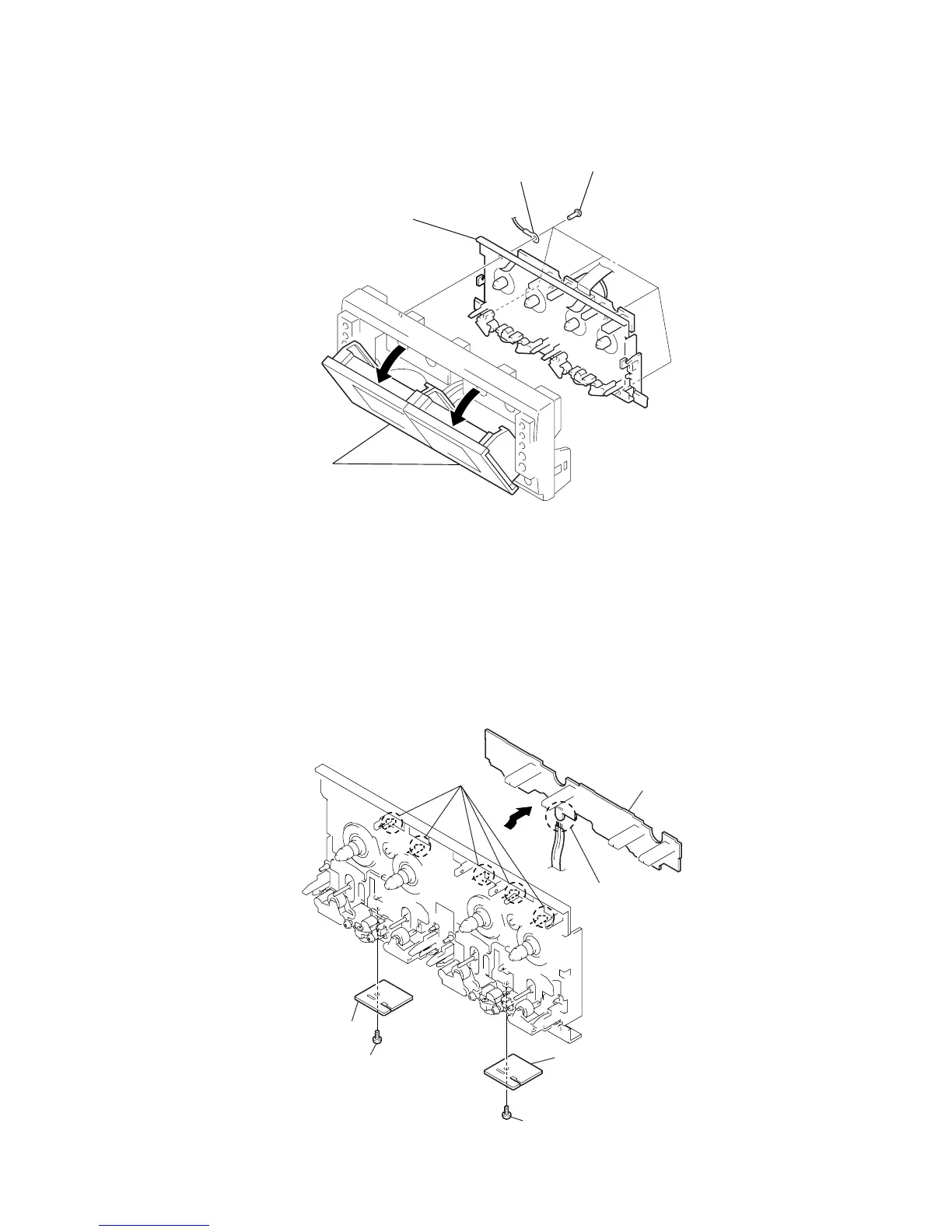

3-5. TAPE MECHANISM DECK (TCM-230AWR41/230MWR41)
2 five screws
(BVTP2.6
× 8
)
4 tape mechanism deck
(TCM-230AWR41/230MWR41)
1 Open the
cassette holder (L)/(R).
3 lug
3-6. LEAF SW BOARD, HEAD (A) BOARD, HEAD (B) BOARD
6 screw (+PTT 2 × 4)
4 screw (+PTT 2 × 4)
3 LEAF SW board
2 five claws
5 head (A) board
7 head (B) board
1 Remove the four solderings.
