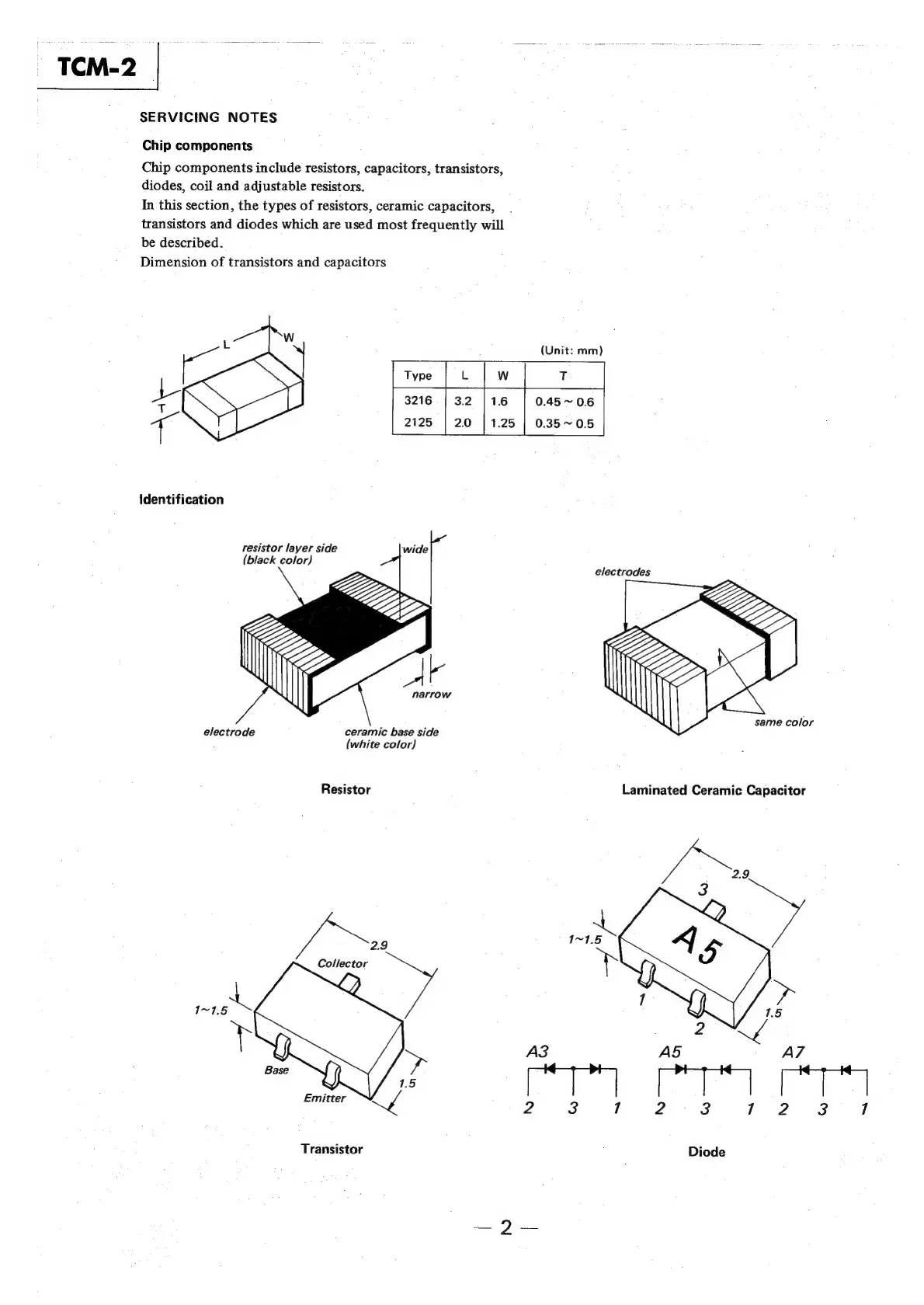

SERVICING NOTES
Chip components
Chip components include resistors, capacitors, transistors,
diodes, coil and adjustable resistors.
In this section, the types of resistors, ceramic capacitors,
transistors and diodes which are used most frequently will
be described.
Dimension of transistors and capacitors
(Unit: mm)
KKS
a
Identification
resistor layer side
(black color}
ceramic base side
electrode
(white color)
Resistor
2.9
Collector
1~1.5
Me
Emitter AL
Transistor
electrodes
same color
Laminated Ceramic Capacitor
