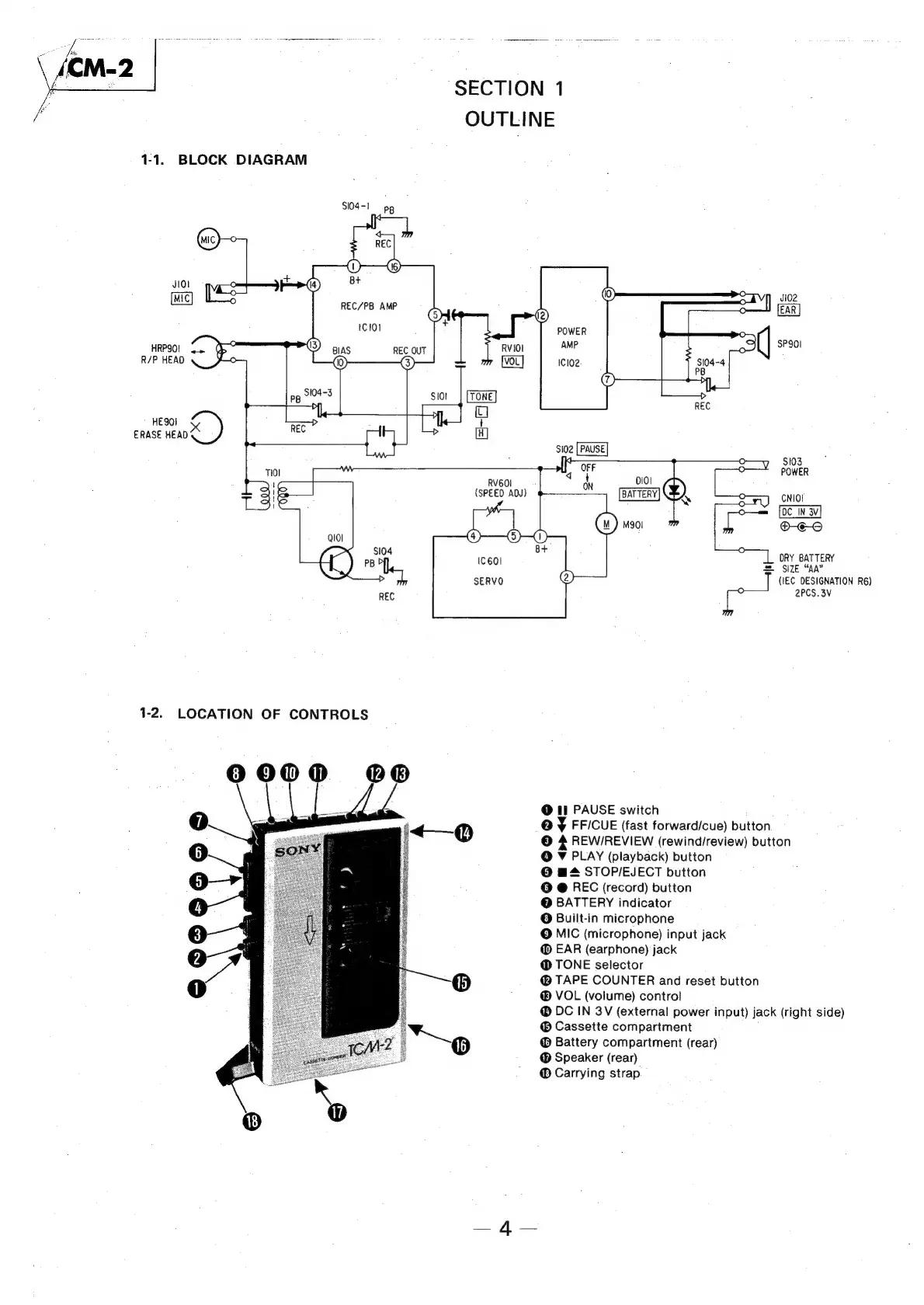

SECTION 1
OUTLINE
1-1. BLOCK DIAGRAM
me) MS
HRPSO!
R/P HEAD
HESOI
ERASE HEAD
Si02 [PAUSE
o- $103
L, OFF POWER
{ 0101
BATTERY] WEA CNtos
@) M90I e-€O
ORY BATTERY
= size “Aa”
(IEC DESIGNATION R6)
2PCs. 3V
1-2. LOCATION OF CONTROLS
09000 0@
@ tl PAUSE switch
@ ¥ FFI/CUE (fast forward/cue) button
3] 4 REW/REVIEW (rewind/review) button
@ V PLAY (playback) button
© m4 STOP/EJECT button
@ @ REC (record) button
@ BATTERY indicator
© Built-in microphone
© MIC (microphone) input jack
@ EAR (earphone) jack
@ TONE selector
@ TAPE COUNTER and reset button
® VOL (volume) control
@ DC IN 3V (external power input) jack (right side)
® Cassette compartment
@® Battery compartment (rear)
@ Speaker (rear)
® Carrying strap
