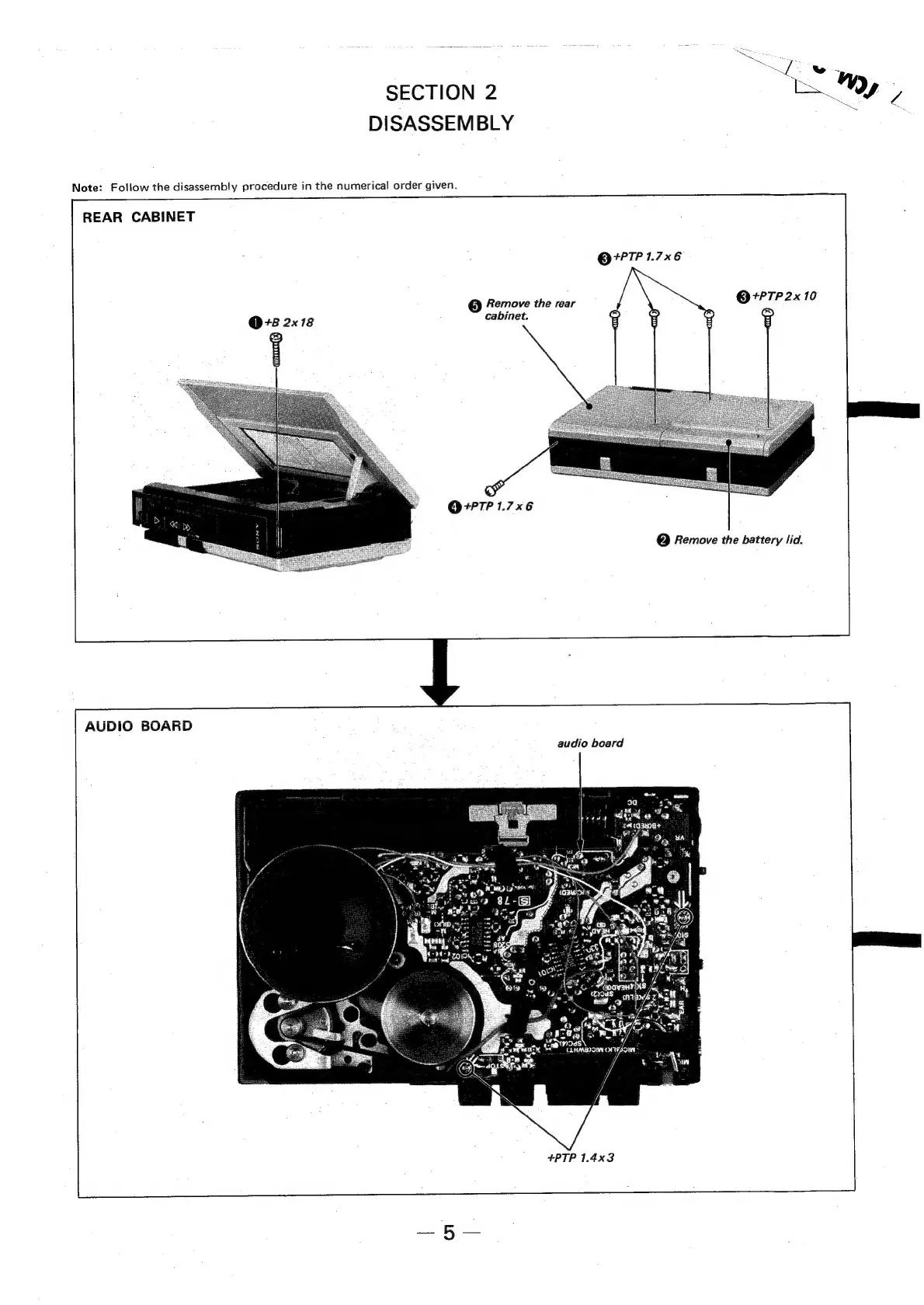

Sony TCM-2 - Rear Cabinet; Audio Board

SECTION 2
DISASSEMBLY
Note:
Follow
the
disassembly
procedure
in
the
numerical!
order
given.
REAR CABINET
@¢PTP 1.7x6
@+PTP2x 10
Remove the rear
C1) +B 2x18 cabinet.
SS”
Q+PTP1.7x6
@ Remove the battery lid.
AUDIO BOARD
audio board
+PTP 1.4x3
