– 8 –

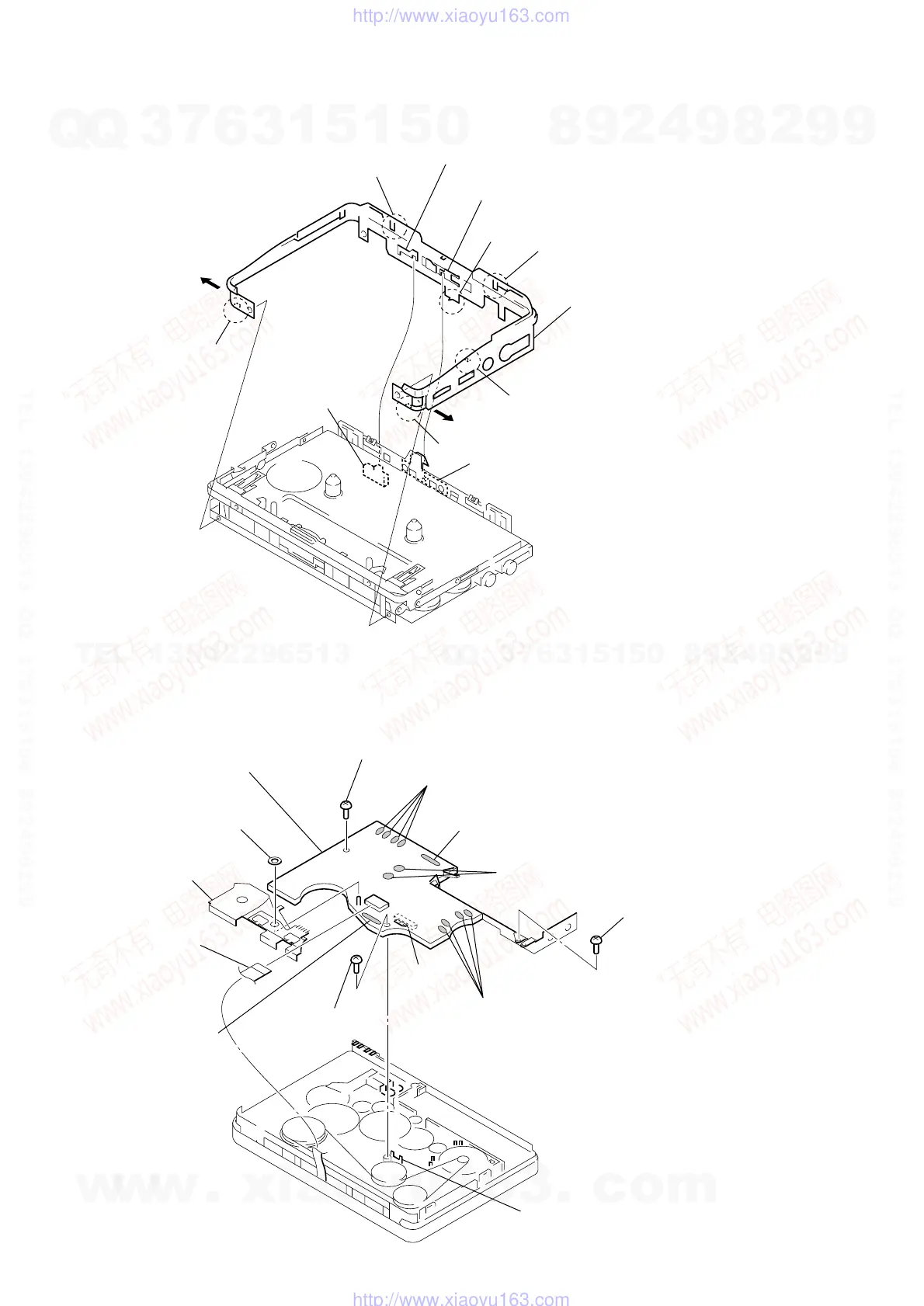

ORNAMENT SUB ASSY, REEL
MAIN BOARD
1 claw
4 claw
4 claw
2 claw
lever, lock
1 claw
3 boss
5 ornament sub assy, reel
knob (hold)
knob (open)
S704
Note: On installation case assy
adjust the S704 and knob (hold),
“lever, lock” and knob (open).
6 Remove five solders
of VOR flexible board.
8 screw
(M1.4)
0 MAIN board
4 Remove two solders
of plunger solenoid.
2 Remove four solders of leaf switch.
S701
9 screw
slider
Note: On installation MAIN board
adjust the S701 and slider.
7 washer
8 bracket (SW)
1 key board unit
(CN 1)
9 screw
(M1.4)
3 Remove six solders
of ATS flexible board.
5 Remove four solders
of motor.
