CPD-E220/E215E/E220E
1
3
4
5
10
6
7
9
• Items marked " * " are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
• Items with no part number and no
description are not stocked because they
are seldom required for routine service.
• The construction parts of an assembled
part are indicated with a collation number
in the remark column.

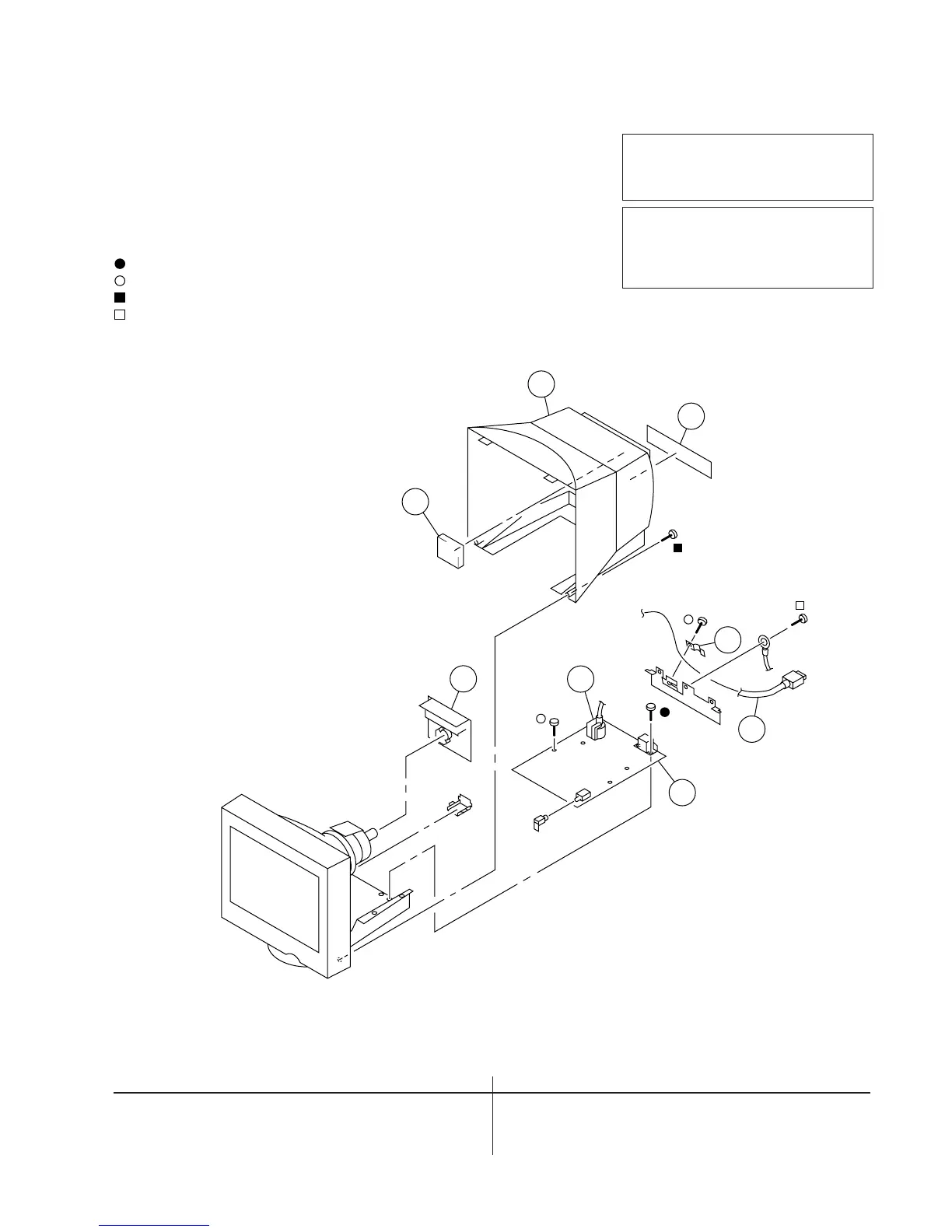

6-1. CHASSIS
7-685-648-71 +BVTT 3X12 8026113012
7-685-872-09 +BVTT 3X8 8127113008
7-685-663-71 +BVTP 4X16 8026114016
7-685-881-09 +BVTT 4X8 8121114008
SECTION 6
EXPLODED VIEWS
The components identified by mark
¡
are critical for safety.
Replace only with part number specified.
Les composants identifiés par une
marque ¡ sont critiques pour la
sécurité. Ne les remplacer que par une
pièce portant le numéro spécifié.
NOTE:
6-1
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
1 * A-1272-229-A A BOARD, COMPLETE S07C2U0242
3 * 4-060-151-01 STOPPER, CABLE
4 4-072-384-01 CABINET
5 * 4-079-241-01 LABEL, INFORMATION 9011097C2V
6 * A-1348-021-A D BOARD, COMPLETE C07C2U0144
7 0 1-453-358-11
TRANSFORMER, FLYBACK
7050307C2U
9 1-757-540-11 I/O CABLE ASSY C7107C2U11
10 4-073-622-01 SPONGE 9010095R51
To Next Page
