— 51 —
KV-24FV12/25FV12/25FV12A/25FV12C
15
14
20
13
16
32
17
19
31
18
12
11
10
8
7
9
21
22
22
23
10
29
3
4
2
6
30
1
24
34
35
36
33
27
28
26
5
25
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
1 X-4037-467-2 BEZNET ASSY 2-6
2 4-046-160-01 EMBLEM (NO.9), SONY
3 4-068-307-04 BUTTON, MULTI
4 4-068-308-11 GUIDE, LED
5 4-068-309-04 BUTTON, FUNCTION
6 4-068-306-03 DOOR
7 4-057-714-01 PIECE ASSY, TLH CORRECTION
8 1-452-896-11 COIL, NA ROTATION (RT200)
9 8-733-250-05 CRT 25RSN
10 4-053-005-01 SPACER, DY
11 1-451-475-11 DEFLECTION YOKE (Y25RSA)
12 * A-1332-057-A CB (VAR) MOUNTED PC BOARD
13 * A-1299-205-A A COMPLETE PC BOARD
The high-voltage leads associated with the FBT on this board
are not included and must be ordered separately. (See 34-36)
14 4-036-329-01 SPRING (B), TENSION
15 1-419-510-11 COIL, DEGAUSSING
16 * A-1304-192-A MB (VAR) MOUNTED PC BOARD
17 * A-1342-547-A VB (VAR) MOUNTED PC BOARD
18 1-783-838-31 CORD, POWER (WITH CONNECTOR)
19 * A-1380-629-A K (VAR) MOUNTED PC BOARD
20 1-766-374-11 PLUG, F-PIN
21 1-529-640-11 SPEAKER (13X8CM)
22 4-374-745-31 CUSHION (A)
23 * 4-068-305-01 BOX, SPEAKER
24 4-075-094-01 COVER, REAR
25 4-041-203-71 HOLDER, HV CABLE
26 4-052-635-01 MAIN POWER BRACKET
27 * A-1372-117-A MOUNTED PWB, HZ
28 4-069-764-02 BUTTON, MAIN POWER
29 4-062-047-01 PIECE A(110), CONV CORRECT
30 1-452-032-00 MAGNET,DISC
31 8-453-011-21 NA299-S
32 8-598-431-30 TUNER, FSS BTF-WA411
33 1-453-336-11 FBT ASSY NX-4011//X4A4 34-36
34 1-251-642-52 HV CAP ASSY
35 1-900-800-65 FOCUS LEAD
36 1-900-803-22 G2 LEAD

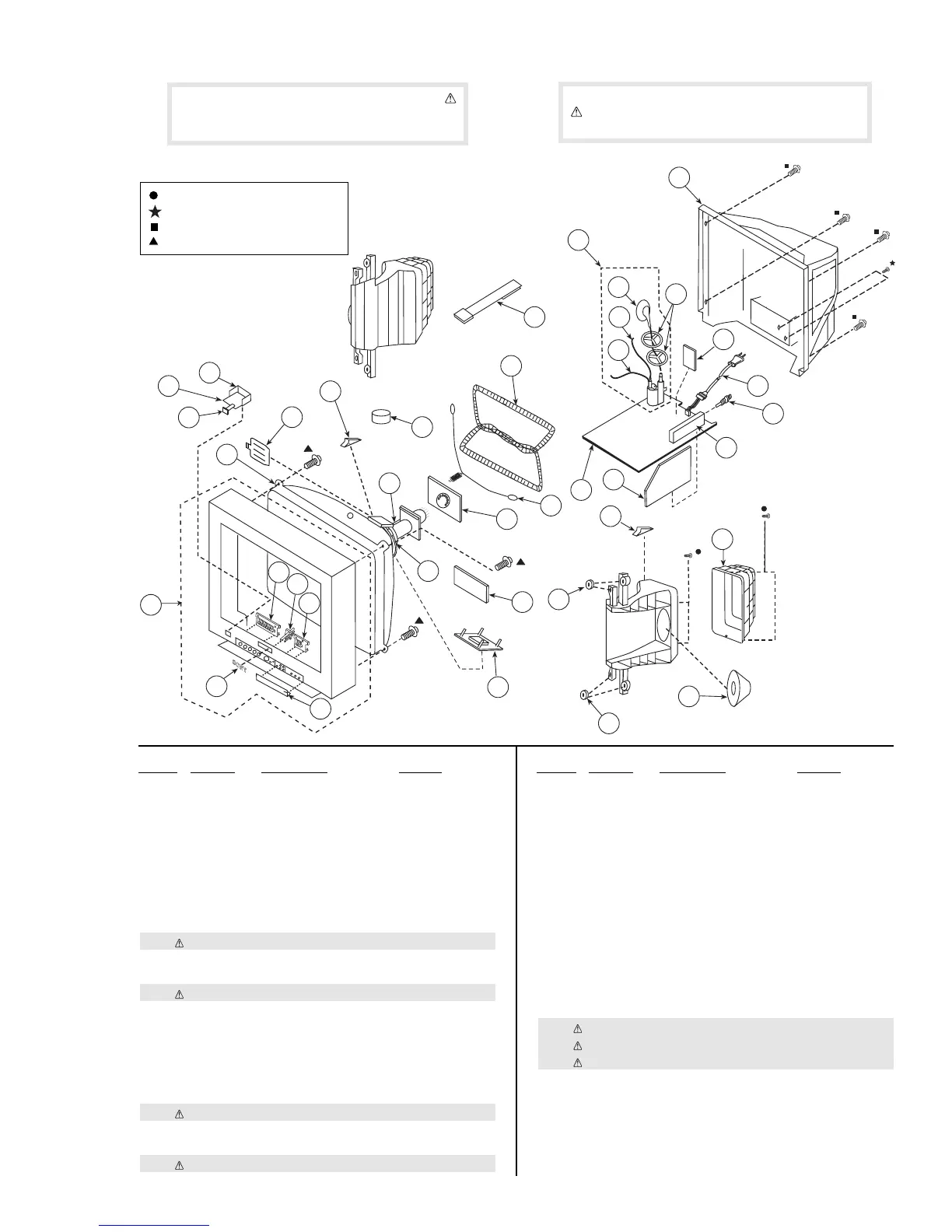

7-2. CHASSIS (KV-25FV12A ONLY)
Note: Note:
Les composants identifies per un trame et une marque
sont critiques pour la securite. Ne les remplacer
que par une piece portant le numero specifie.
The components identified by shading and mark
are critical for safety. Replace only with part number
specified.
4-041-180-01 SCREW +BVTP 4X12
7-685-647-71 SCREW +BVTP 3X10
7-685-663-71 SCREW +BVTP 4X16
4-041-268-11 SCREW (7) TAPPING
To Next Page
