Sony Trinitron KV-25X3A - Picture Tube

— 91 —
KV-25X3
REF NO PART NO DESCRIPTION REMARK
REF NO PART NO DESCRIPTION REMARK
The components identified by
shading and marked are critical
for safety.
Replace only with the part number
specified.
Les composants identifies par une
trame et une marque sont
critiques pour la securite.
Ne les remplacer que par une piece
portant le numero specifie.

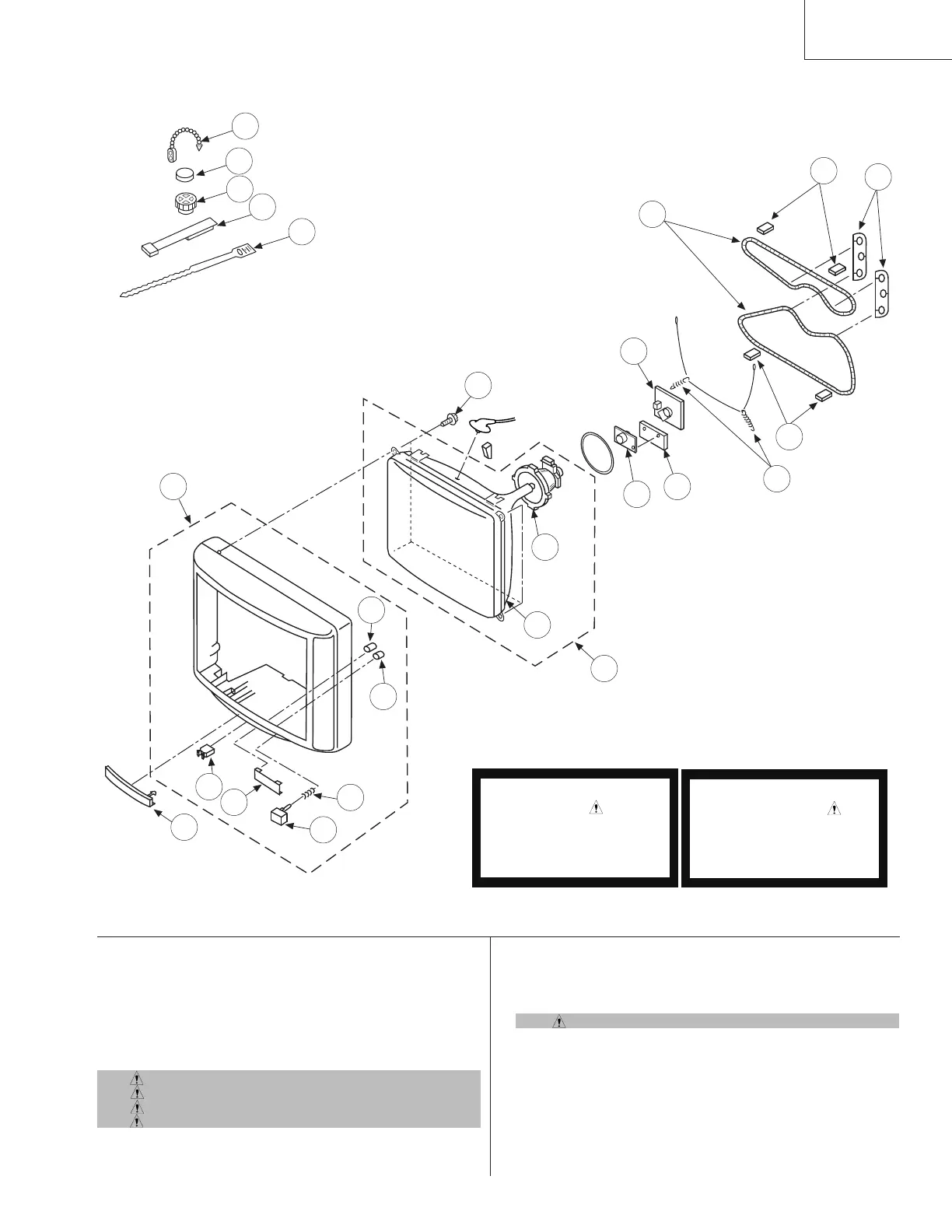

6-2. PICTURE TUBE
51 X-4200-256-4 BEZNET ASSY 53-58
52 4-203-364-11 DOOR, CONTROL (KV-25X3A/25X3D)
4-203-364-01 DOOR, CONTROL (KV-25X3B/25X3E)
53 4-047-464-01 CATCHER, PUSH
54 4-203-365-01 WINDOW, ORNAMENTAL
55 4-203-362-01 BUTTON, POWER
56 4-202-964-01 SPRING
57 *4-203-363-01 GUIDE, LED LIGHT
58 4-202-465-01 GUIDE, LED LIGHT
59 8-733-243-05 PICTURE TUBE (SD-257) (M60LCS60X)
60 8-451-474-11 DEFLECTION YOKE (Y25GXCB)
61 8-773-254-77 ITC 59-60
62 1-452-509-41 NECK ASSY, CRT (NA-308)
63 A-1644-080-A VM BOARD, COMPLETE
64 *A-1638-105-A C BOARD, COMPLETE
65 4-200-433-01 SPRING, EXTENSION
66 4-203-390-01 CUSHION, DGC
67 4-202-745-01 HOLDER, DGC (25")
68 1-406-806-21 COIL, DEGAUSSING
69 4-036-188-01 SCREW, SELF TAPPING
70 4-308-870-00 CLIP, LEAD WIRE
71 1-452-094-00 MAGNET, ROTATABLE DISK; 15MM Ø
72 1-452-032-00 MAGNET, DISK; 10MM Ø
73 X-4387-214-1 PERMALLOY ASSY, CORRECTION
74 3-701-007-00 BAND, BINDING
55
56
57
61
59
60
53
54
52
51
69
62
63
65
66
64
68
66
67
74
70
71
72
73
58
