Sony Trinitron KV-29FA310 - Service Position (All Except KV-29 FA310); Service Position (KV-29 FA310 Only)

11
KV-27FS120/29FA310/29FS120
KV-27FS120/29FA310/29FS120
A Board
1
Press on catch tab to release A Board.
2
Disconnect cables as needed to allow A Board to be removed.
GD Board
HU Board
CW Board
V Board

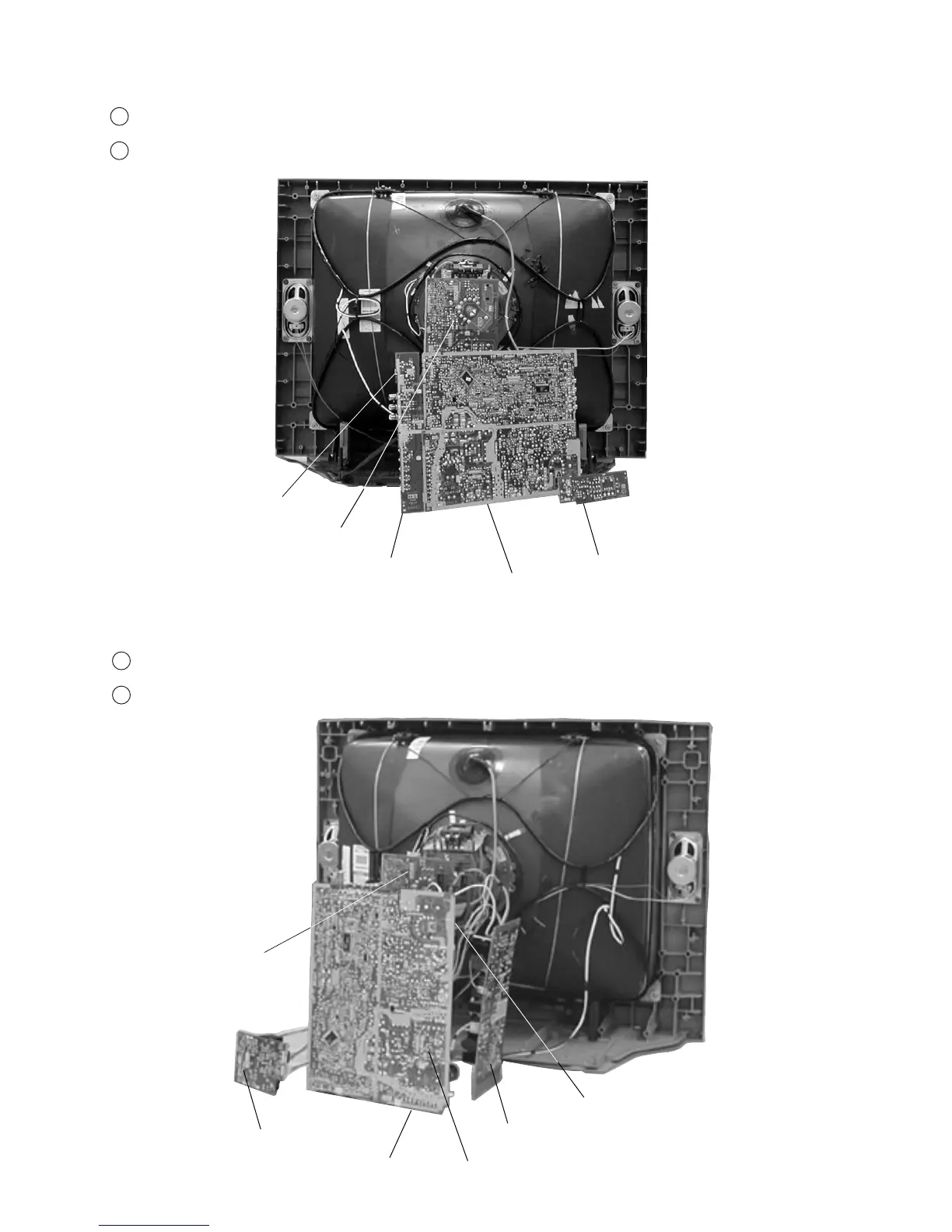

1-5. SERVICE POSITION (ALL EXCEPT KV-29FA310)
K Board
1-6. SERVICE POSITION (KV-29FA310 ONLY)
A Board
CW Board
1
Press on catch tab to release A Board.
2
Disconnect cables as needed to allow A Board to be removed.
D Board
HS Board
V Board
