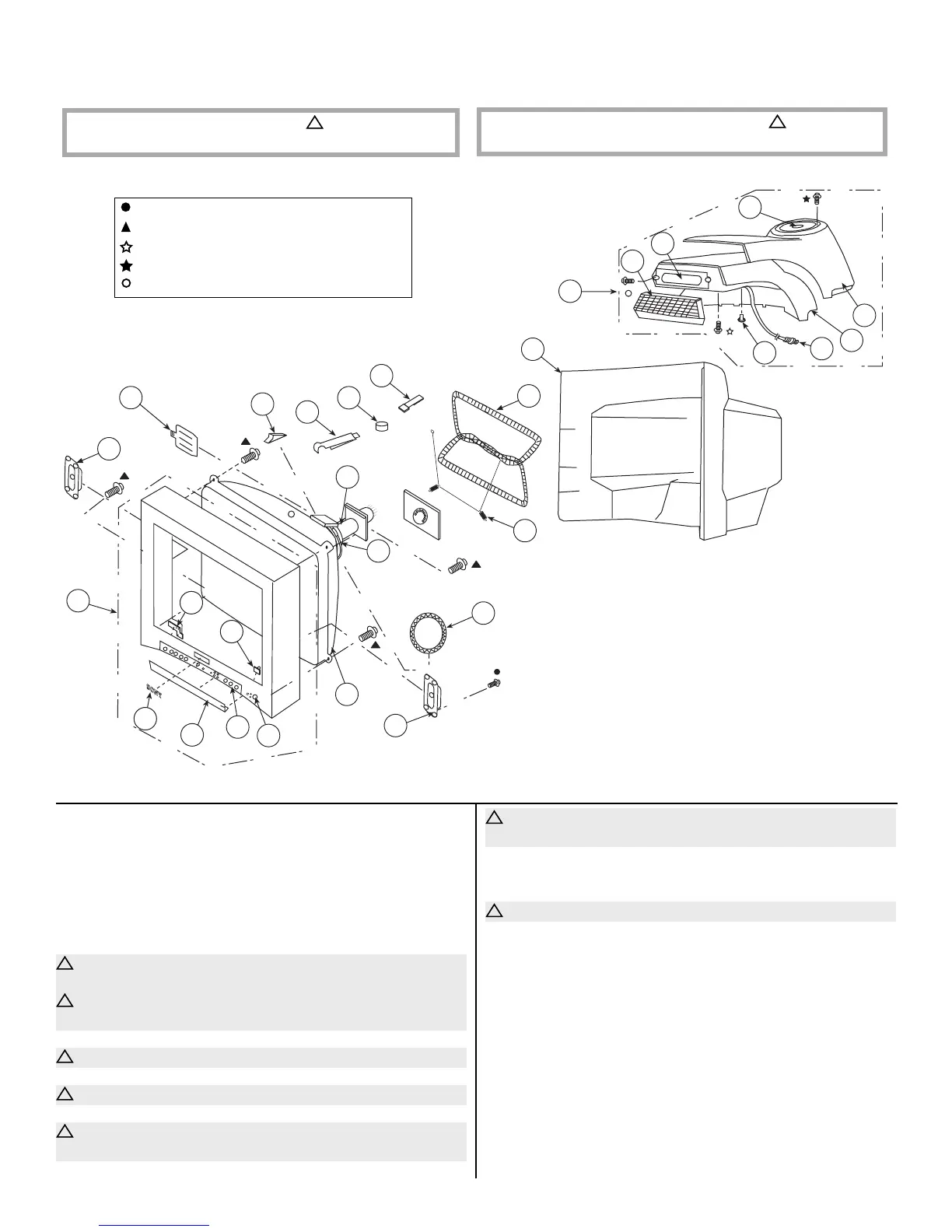

6-3. PICTURE TUBE (KV-29FA310 ONLY)
1 X-4043-169-1 BEZNET ASSY [2-7]
2 4-046-160-31 EMBLEM, SONY NO.9
* 3 4-087-375-31 DOOR, CONTROL
4 4-087-376-21 LABEL, FRONT TERMINAL
5 4-087-150-41 BUTTON, POWER
6 4-087-156-01 GUIDE, LIGHT
7 4-087-374-11 SPRING, DOOR
!
8 8-735-082-05 CRT 29RSN(SDP)
(KV-29FA310 L. NORTH ONLY)
!
8 8-735-083-05 CRT 29RSN(SDP)(SOUTH)
(KV-29FA310 L. SOUTH ONLY)
9 1-825-809-11 LOUDSPEAKER (19.2CMX4.2CM)
!
10 1-452-896-11 COIL, NA ROTATION (RT-200)
!
11 8-451-494-41 DY Y29RSA-V
12 4-036-329-01 SPRING (B), TENSION
!
13 1-419-156-21 COIL, DEGAUSSING
(KV-29FA310 L. NORTH ONLY)
!
13 1-419-523-21 COIL, DEGAUSSING
(KV-29FA310 L. SOUTH ONLY)
14 4-083-414-01 PIECE A(110), CONV CORRECT
15 1-452-885-11 MAGNET, LANDING
* 16 4-062-970-12 CLIP (29RSN), DGC
!
17 8-453-011-11 NECK ASSEMBLY 299-M
18 4-053-005-01 SPACER, DY
19 4-081-170-01 PLATE, TLH CORRECTION
20 4-093-996-11 COVER, REAR
21 A-1606-603-A SPEAKER ASSY (29) [22-28]
* 22 4-101-820-01 GRILLE, CENTER (W29)
23 1-825-417-21 LOUDSPEAKER (6X12CM)
24 1-825-807-11 LOUDSPEAKER (13CM)
* 25 4-101-829-01 COVER, TOP (W29)
* 26 4-101-830-01 COVER, BOTTOM (W29)
* 27 1-828-903-11 CONNECTION CABLE
* 28 4-068-528-41 FOOT
4-388-477-01 SCREW(3X16),TAPPING,+BV WASHER
4-046-765-12 SCREW, TAPPING 7+CROWN WASHER
7-685-663-71 SCREW +BVTP 4X16 TYPE2 IT-3
7-685-661-14 SCREW +BVTP 4X12 TYPE2 IT-3
4-384-096-01 SCREW (4X16), TAPPING, +P
. . . [ASSEMBLY INCLUDES] [ASSEMBLY INCLUDES]
