16

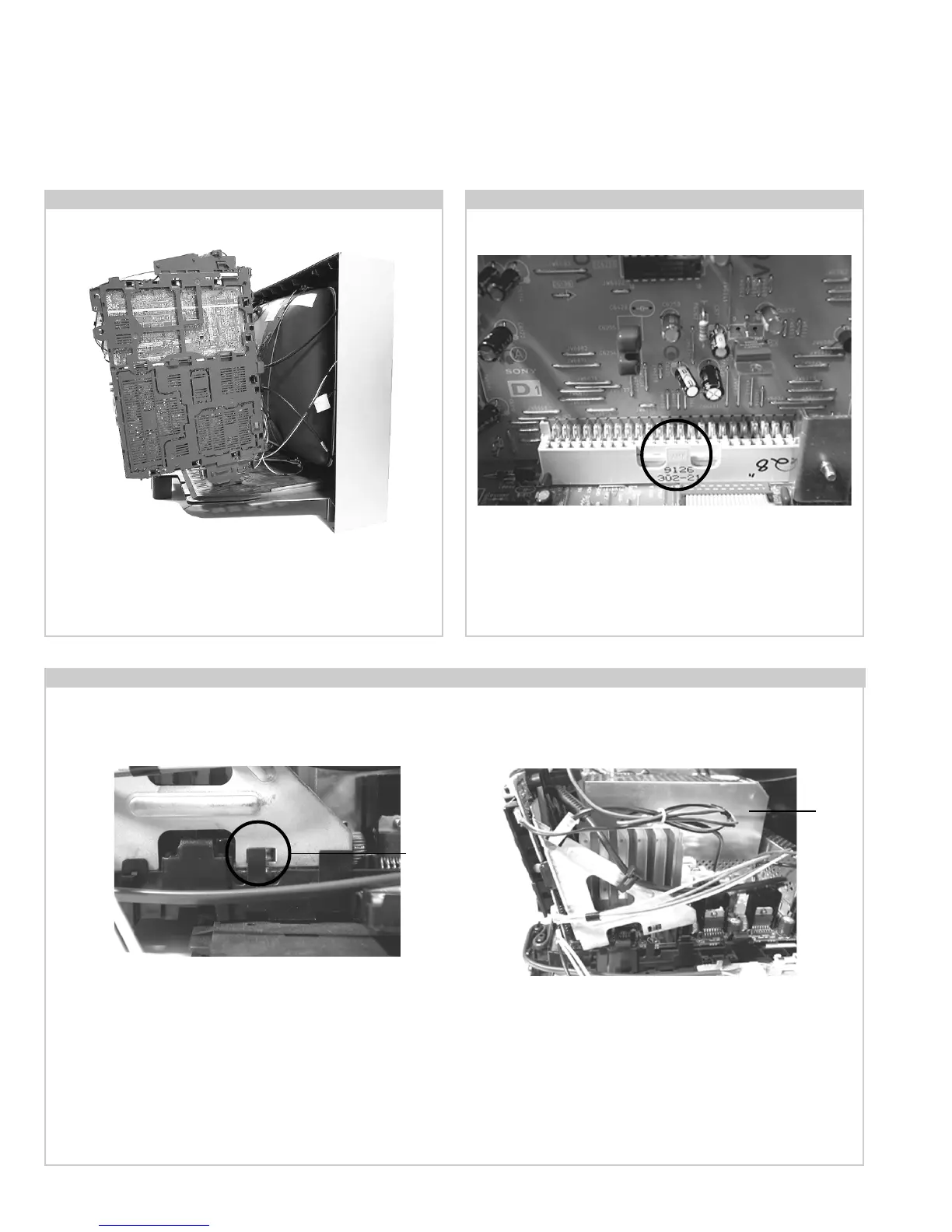

2-4. Service Position 2-5. D1 Board Removal
To remove the D1 Board release the clip circled and gently
remove the board in a vertical direction.
Position the PWB as indicated to access the solder side.
To gain access to the D Board follow the instructions on page
19. [Removal and Replacement of the main bracket bottom
plates ].
Release the two metal bracket support clips located on either side of the chassis. Tilt the bracket very slightly away from the shield
case indicated. Release the J board board socket retaining clip and carefully lift the complete assembly vertically.
2-6. J Board Removal
Clip
Shield
case
To Next Page
