Sony Trinitron KV-29FX65E - EXPLODED VIEWS; CHASSIS

92
• Items with no part number and no description are not
stocked because they are seldom required for routine
service.
• The construction parts of an assembled part are indi-
cated with a collation number in the remarks column.
• Items marked “ * “ are not stocked
since they are seldom required for
routine service. Some delay should
be anticipated when ordering
these items.
REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

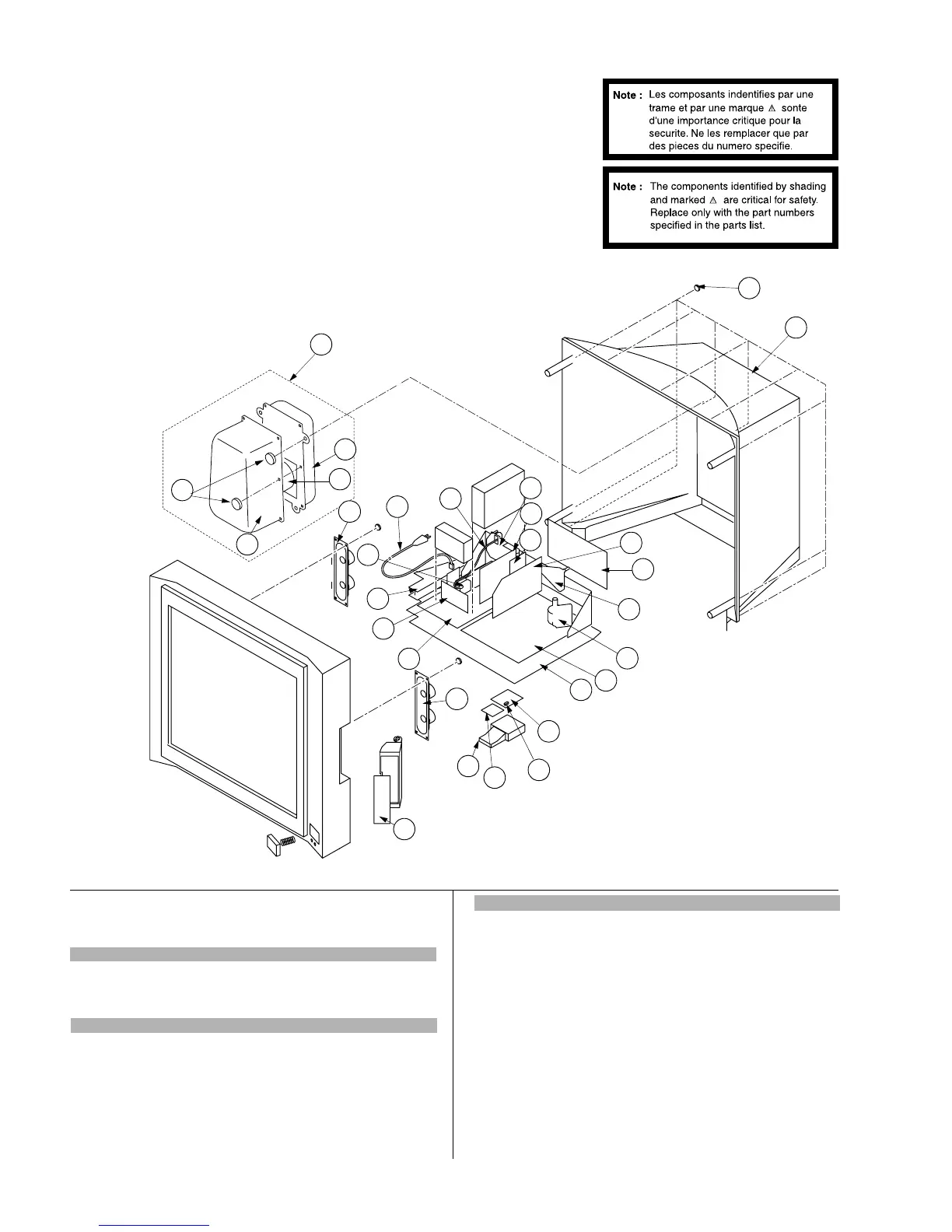

6-1. CHASSIS
NOTE :
SECTION 6
EXPLODED VIEWS
25
16
15
18
19
20
28
2
22
21
27
26
1
17
14
13
12
9
8
7
6
5
4
3
24
10
23
21
11
1 *A-1646-218-A H7 BOARD, COMPLETE
2 *4-205-724-01 F4 BRACKET
3 *A-1646-217-A H8 BOARD, COMPLETE
4 £ 1-571-433-21 SWITCH, PUSH (AC POWER)
5 *A-1624-089-A F4 BOARD, COMPLETE
6 *4-205-196-02 MAIN BRACKET
7 *A-1640-398-A D BOARD, COMPLETE
8 £ 1-453-340-11 TRANSFORMER ASSY, FLYBACK (NX4522//U214)
9 *4-204-476-04 BRACKET, J1
10 *A-1651-137-A J BOARD, COMPLETE
11 *A-1640-380-A D1 BOARD, COMPLETE
12 *A-1640-381-A E BOARD, COMPLETE
13 *A-1620-132-A B2 BOARD, COMPLETE
14 *4-204-477-04 BRACKET, J2
15 1-790-082-11 CABLE, RF
16 £ 1-792-389-11 CORD, POWER
17 1-693-340-11 TUNER/VIF(FR) (KV-29FX65B)
1-693-338-11 TUNER/VIF(AEP) (KV-29FX65E/29FX65K)
18 *A-1624-086-A F1 BOARD, COMPLETE
19 *A-1634-057-A M1 BOARD, COMPLETE
20 *A-1632-913-A A BOARD, COMPLETE (KV-29FX65B)
*A-1632-912-A A BOARD, COMPLETE (KV-29FX65E/29FX65K)
21 1-529-899-11 SPEAKER (24X4.2CM)
22 *A-1678-191-A WOOFER ASSY (SP) 23-26
23 *4-204-775-01 BAFFLE, WOOFER
24 7-685-663-71 SCREW +BVTP 4X16 TYPE 2 IT-3
25 1-529-417-11 SPEAKER (8CM)
26 *4-204-776-01 BOX, WOOFER
27 4-205-721-01 REAR COVER
28 7-685-663-79 SCREW +BVTP 4X16 TYPE 2 IT-3
