SECTION 6
EXPLODED VIEWS
NOTE :
Items with no part number and no description are not
stocked because they are seldom required for routine
service.
The construction parts of an assembled part are indicated
with a collation number in the remarks column.
Items marked “*” are not stocked
since they are seldom required for
routine service. Some delay should
be anticipated when ordering these
items.

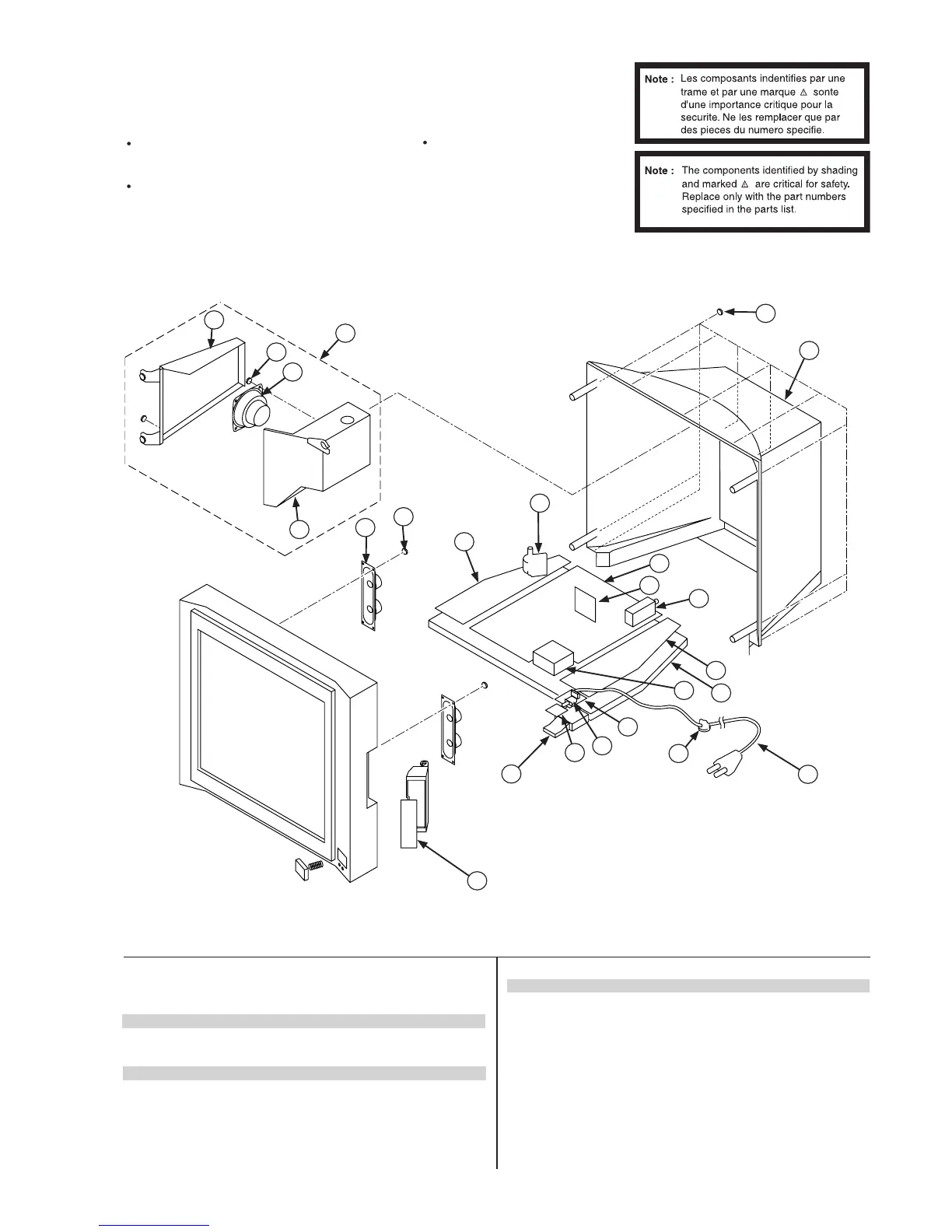

6-1. Chassis
REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
- 46 -
1 *A-1647-043-A H2 BOARD, COMPLETE
2 *4-206-097-01 F4, H1 BRACKET
3 *A-1646-243-A H1 BOARD, COMPLETE
4 £ 1-571-433-31 SWITCH, (AC POWER)
5 *A-1625-000-A F4 BOARD, COMPLETE
6 *4-202-531-01 AC CORD LOCK (SC)
7 £ 1-690-270-21 CORD, POWER (WITH CONNECTOR)
8 1-424-855-11 COIL, CHOKE
9 *4-206-106-01 BRACKET, MAIN
10 *A-1637-024-A G BOARD, COMPLETE
11 8-598-533-01 FRONTEND BTF-EC411
12 *A-1634-062-A M BOARD, COMPLETE
13 *A-1632-952-A A BOARD, COMPLETE
14 £ 1-453-340-31 TRANSFORMER ASSY, FLYBACK (NX-4522//Z2B4)
15 *A-1640-432-A D BOARD, COMPLETE
16 7-685-663-71 SCREW +BVTP 4x16 TYPE 2 IT-3
17 1-529-408-11 SPEAKER (4.2x24CM)
18 *A-1678-191-C WOOFER ASSY SP 19-22
19 *4-204-775-01 BAFFLE, WOOFER
20 7-685-663-71 SCREW +BVTP 4x16 TYPE 2 IT-3
21 1-529-417-11 SPEAKER (8CM)
22 *4-204-776-01 BOX, WOOFER
23 4-206-096-01 REAR COVER
24 7-685-663-79 SCREW +BVTP 4x16 TYPE 2 IT-3
2
3
18
6
1
4
11
14
22
19
23
17
16
8
13
15
5
9
10
7
12
20
21
24
