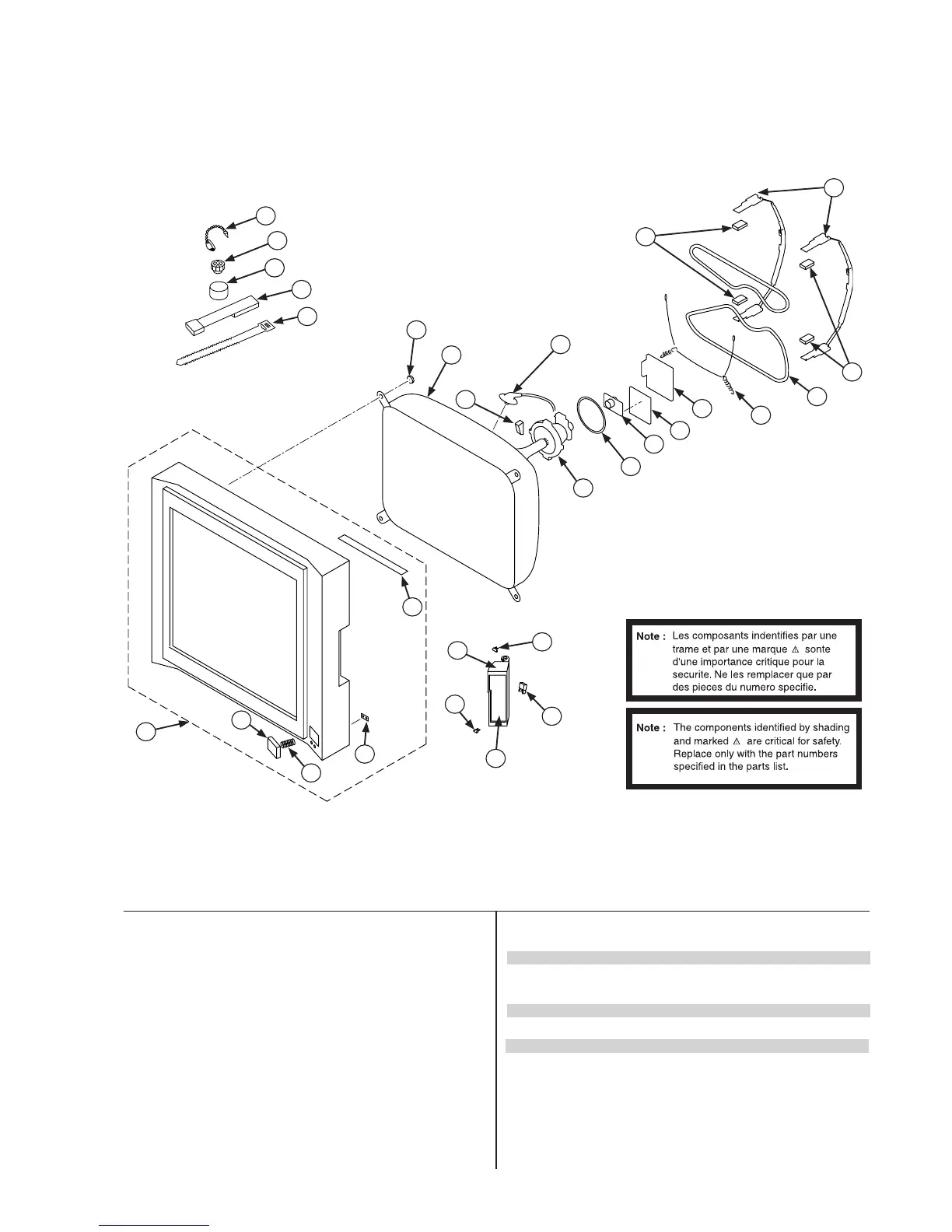

6-2. Picture Tube
REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
- 47 -
51 X-4200-730-1 BEZNET ASSY 52-55
52 4-205-720-02 POWER BUTTON
53 4-204-426-01 SPRING
54 4-204-726-01 GUIDE, LIGHT
55 4-204-865-01 SHEET, BLOTTING
56 3-022-410-01 DAMPER
57 4-205-722-02 DOOR
58 4-047-464-01 CATCHER, PUSH
59 4-205-725-01 DOOR SPRING
60 *4-205-723-01 DOOR BRACKET
61 8-451-504-31 DEFLECTION YOKE (Y29RSC-S)
62 1-452-896-11 COIL, NA ROTATION (RT200)
63 8-453-011-41 NECK ASSY, (NA299-C)
64 *A-1644-119-A VM BOARD, COMPLETE
65 *A-1638-158-A C BOARD, COMPLETE
66 4-369-318-21 SPRING, TENSION
67 £ 1-424-887-11 COIL, DEGAUSSING
68 4-203-390-11 CUSHION, DGC
69 *4-204-768-01 HOLDER, DGC (29”)
70 £ 1-251-946-11 CAP ASSY, HIGH-VOLTAGE
71 3-704-495-01 SPACER, DY
72 £ 8-735-053-05 PICTURE TUBE (M68LNH060X)
73 4-046-765-12 SCREW, TAPPING 7+CROWN WASHER
74 4-308-870-00 CLIP, LEAD WIRE
75 1-452-094-00 MAGNET, ROTATABLE DISK; 15MM
76 1-452-032-00 MAGNET, DISK; 10MM
77 X-4387-214-1 PERMALLOY ASSY, CORRECTION
78 3-701-007-00 BAND, BINDING
52
51
53
58
77
76
78
74
55
61
62
63
64
68
69
72
71
70
68
54
65
75
56
59
60
66
67
73
57
