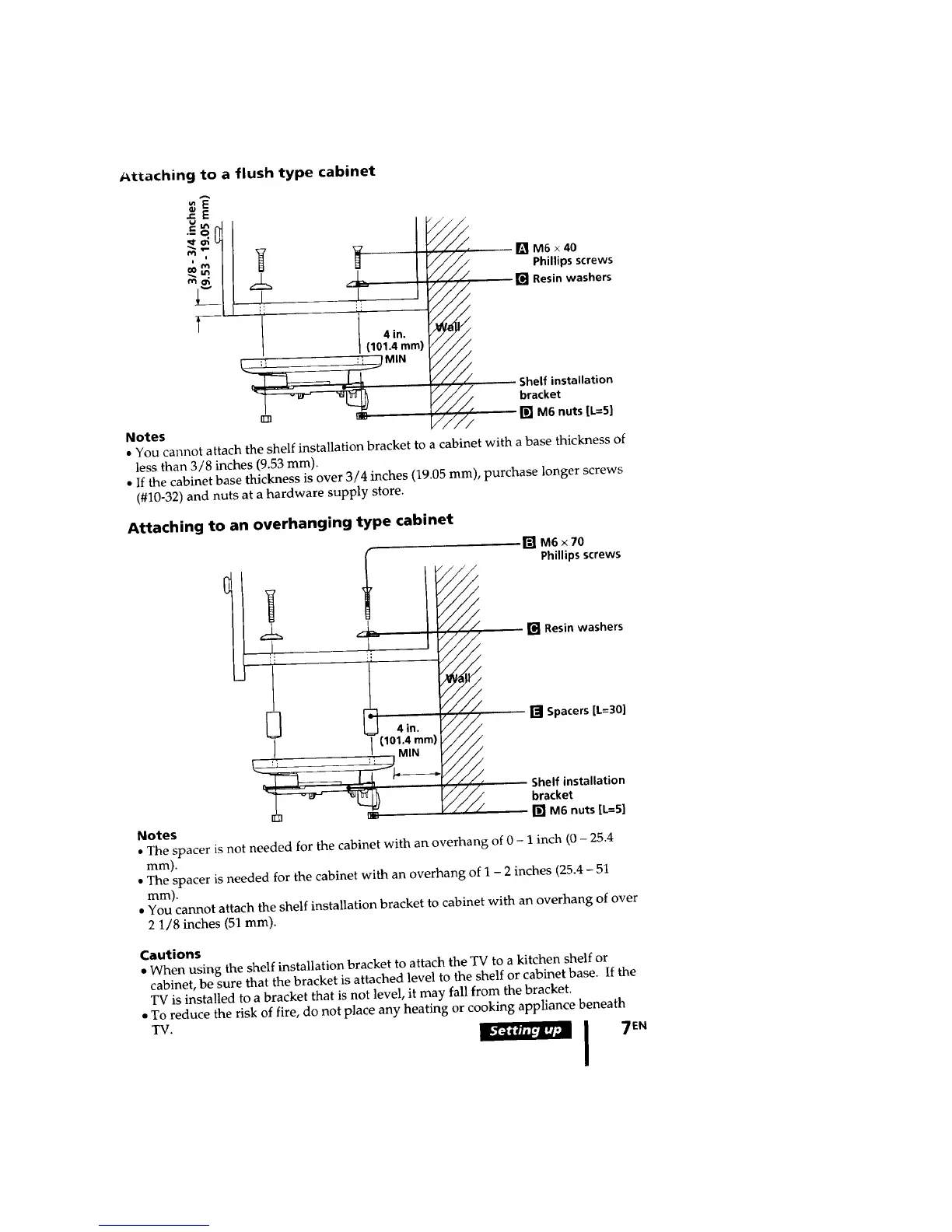

Attaching to a flush type cabinet
e-
_-, , _7 _?........ / -Ir_M6x40
_ _ [1 I _/"// Phillips screws
., I fl; I _//_ _ [] Resinwashers
_-- /
4 in. /
T I(101.4 ram) _'_'/../
_MI" _.///_/ Shelf installation
_/.////_. bracket
n-n _ _,,/'// [] Me nuts [L=51
Notes
• You cannot attach the shelf installation bracket to a cabinet with a base thickness of
less than 3/8 inches (9.53 ram).
• If the cabinet base thickness is over 3/4 inches (19.05 ram), purchase longer screws
(#10-32) and nuts at a hardware supply store.
Attaching to an overhanging type cabinet
[] M6 x 70
Phillips screws
+ + // _ Resinwashers
L_ [] Spacers[L=30]
_] 4 in.
(11)1.4ram) _/i
, ,I I MIN
_ Shelf installation
_///_ bracket
[] _n [] M6 nuts [L=5]
Notes
• The spacer is not needed for the cabinet with an overhang of 0 - 1 inch (0 - 25.4
Film).
• The spacer is needed for the cabinet with an overhang of 1 - 2 inches (25.4 - 51
1Tin'l).
• You cannot attach the shelf installation bracket to cabinet with an overhang of over
2 1/8 inches (51 ram).
Cautions
• When using the shelf installation bracket to attach the TV to a kitchen shelf or
cabinet, be sure that the bracket is attached level to the shelf or cabinet base. If the
TV is installed to a bracket that is not level, it may fall from the bracket.
• To reduce the risk of fire, do not place any heating or cooking appliance beneath
TV. j 7E N
