Additional Information
C
• Snowy • Distorted • Noisy/
picture picture distorted
sound
Wall antenna
terminal
UHF
VHF
Booster
VCR
Check the antenna direction.
Incorrect antenna direction may cause:
Check the antenna
type.
Wrong type of antenna
may cause:
• No picture
• Snowy picture
Check connection
on the wall
antenna terminal.
Loose connection may
cause:
•
Snowy picture
• Distorted sound
Check if you need
booster to increase
signal level.
Too strong signal level
may cause:
•
Distorted picture
• Noisy sound

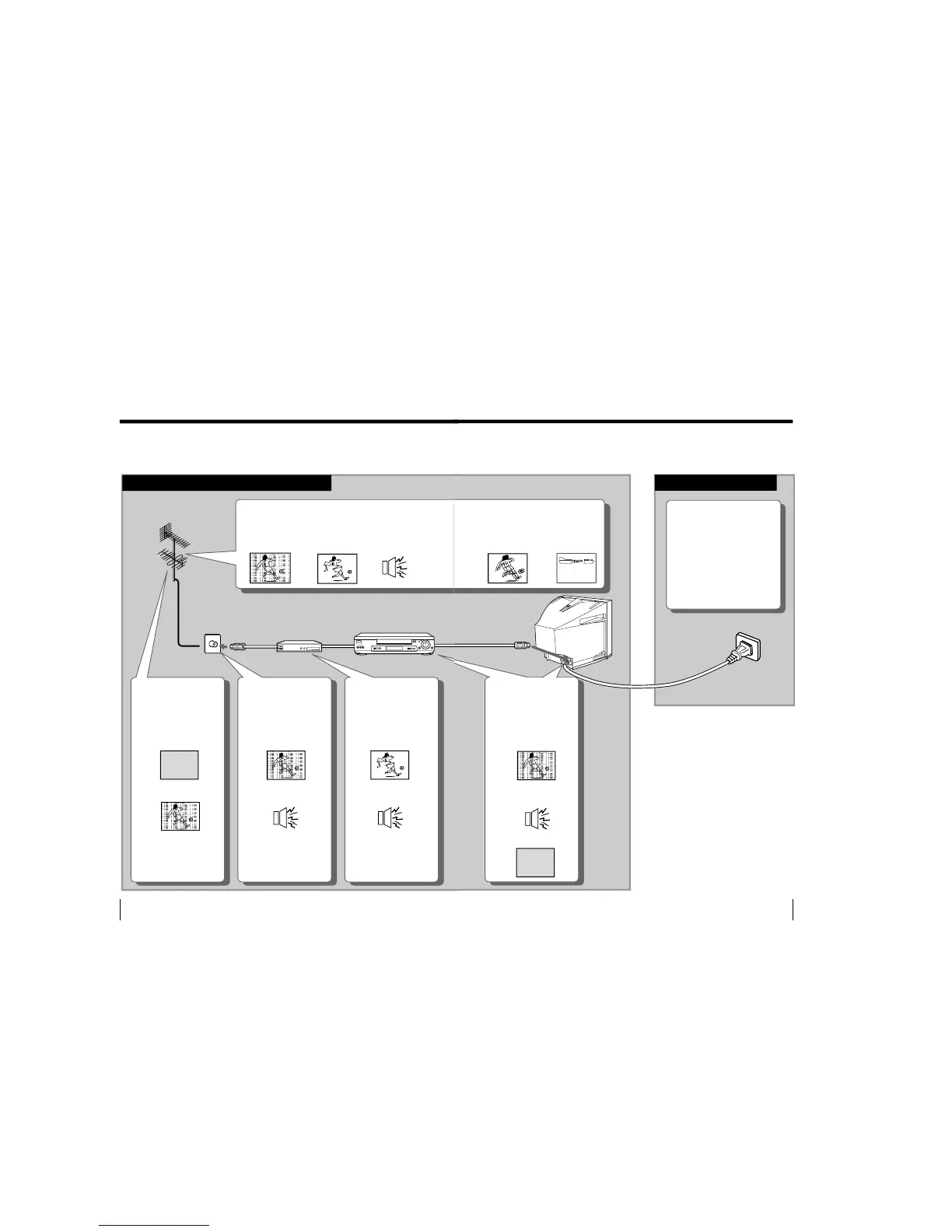

Troubleshooting Shortcuts
(KV-PF51P40 only)
For better viewing, please check the following connections.
Antenna connection
