– 35 –
KV-PF21N70/PF51P40/PF21P70/PF21Q40
RM-915 RM-952 RM-952 RM-952
KV-PF21Q70/PF21M70/PF21DK7
RM-952 RM-952 RM-952
SECTION 2
DISASSEMBLY

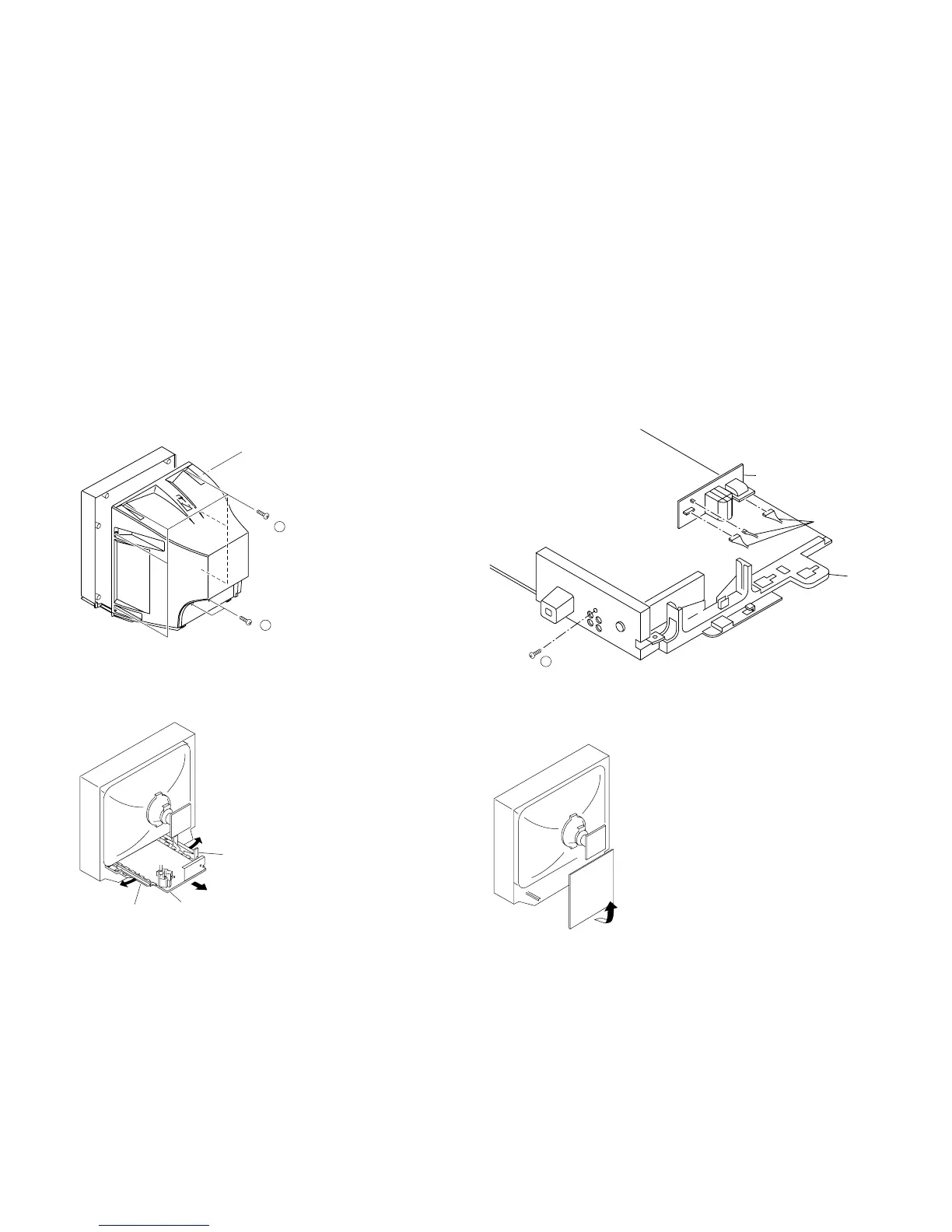

2-2. CHASSIS ASSY REMOVAL
1 Chassis assy
Lever
Lever
2-1. REAR COVER REMOVAL
Six screws
(BVTP 4×16)
1
2
Two screws
(BVTP 4×16)
Rear cover
2-3. F BRACKET REMOVAL
1 Three connectors
2 F board
Lever
One screw
(BVTP 4×16)
1
2-4. SERVICE POSITION
(Note: Remove F Bracket first.)
