– 36 –
KV-PF21N70/PF51P40/PF21P70/PF21Q40
RM-915 RM-952 RM-952 RM-952
KV-PF21Q70/PF21M70/PF21DK7
RM-952 RM-952 RM-952

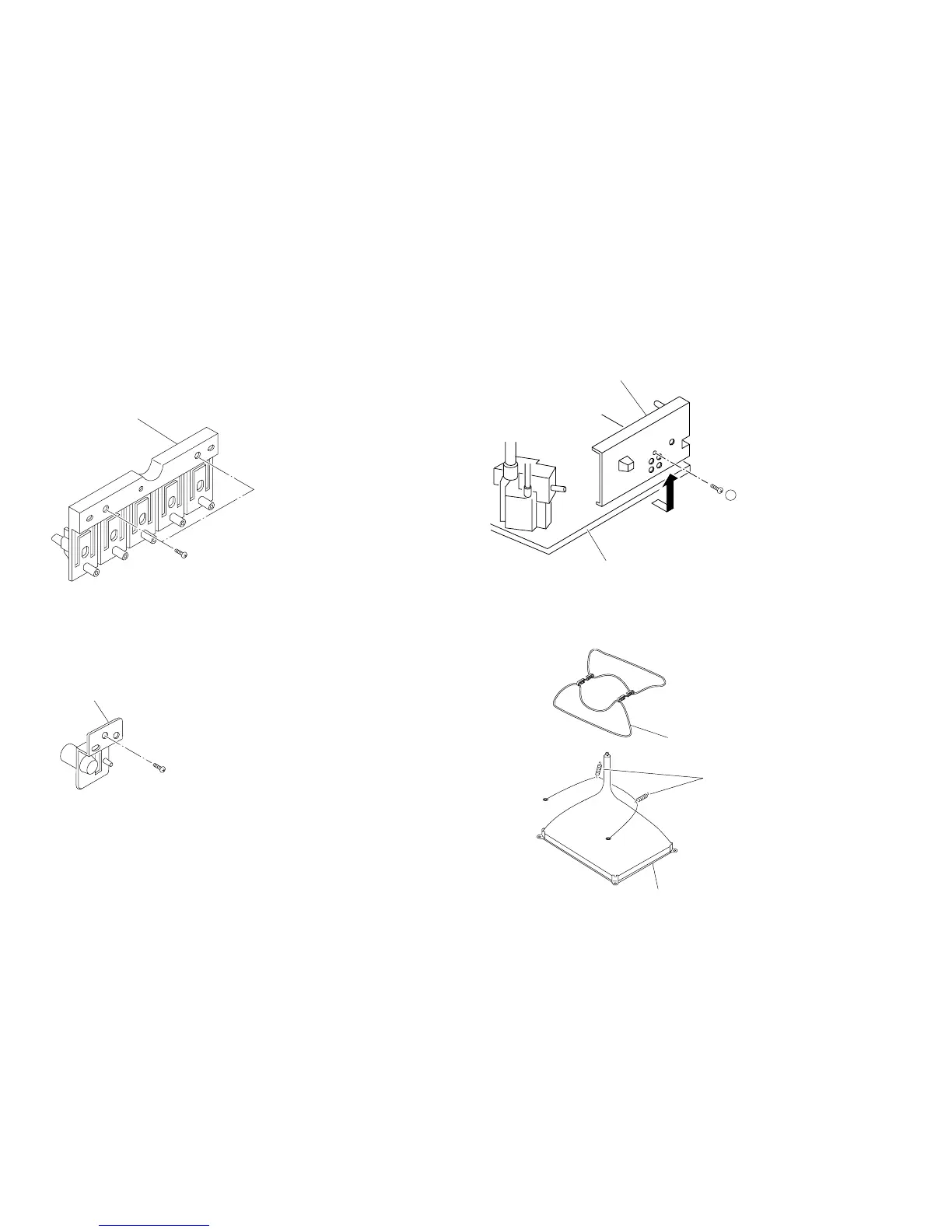

2-7. DEGAUSS COIL REMOVAL
1 Demagnetization coil
2 Tension spring
Picture tube
2-6. TERMINAL BRACKET REMOVAL
A board
Terminal board bracket
One screw
(BVTP 4×16)
1
2-5. REPLACEMENT OF PARTS
For replacement of the Multi Button and Bar Optical ,unscrew to exchange with the
new parts, and fix them with screws (+BVTP) respectively.
2-5-1. REPLACEMENT OF MULTI BUTTON
Multi button
Two screws
(BVTP 3×12)
2-5-2. REPLACEMENT OF BAR OPTICAL
Bar Optical
One screw
(BVTP 3×12)
