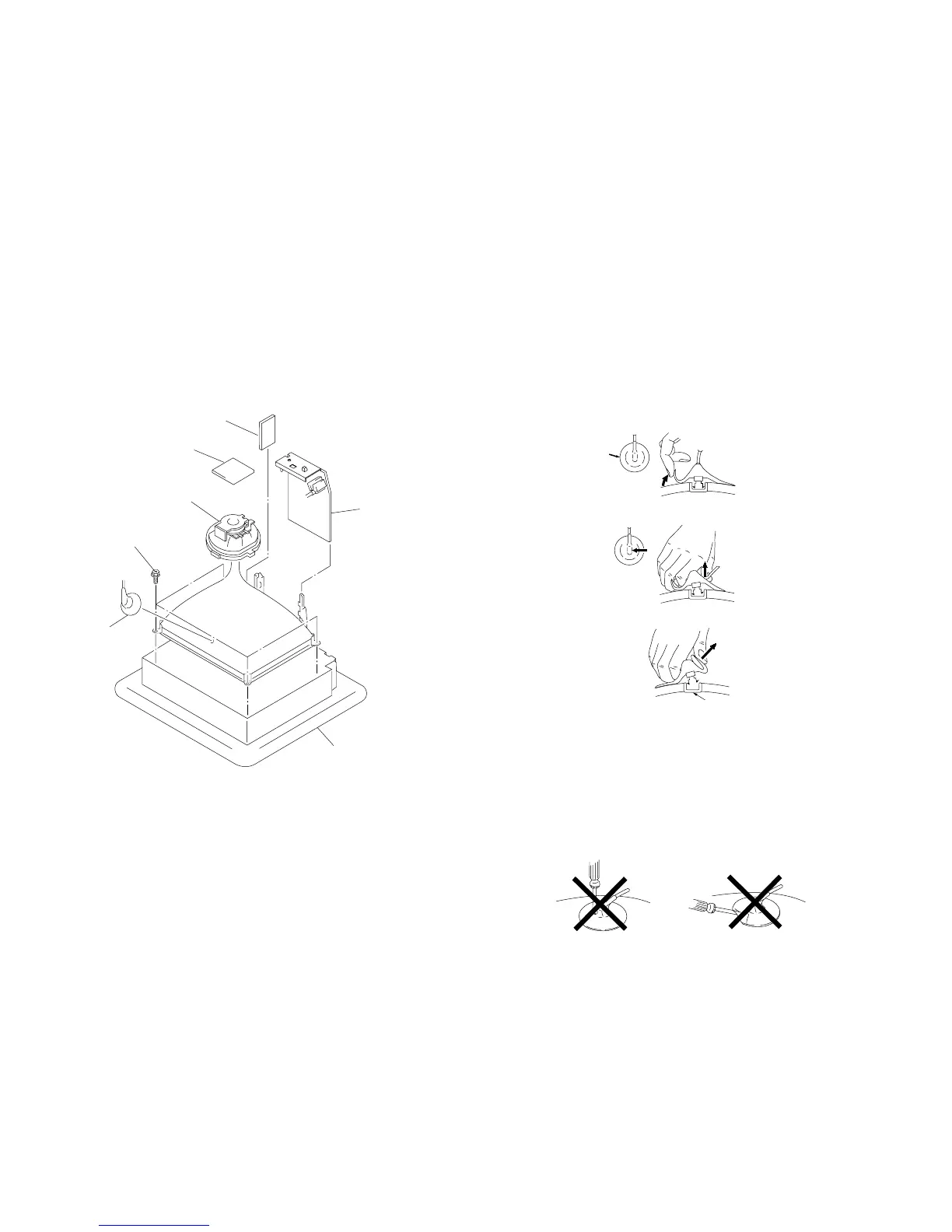

2-8. PICTURE TUBE REMOVAL
NOTE : This picture tube for Indonesian model is upside down, and the position
for the anode cap and tension springs are change accordingly.
2 A board
4 C3 board
5 Deflection yoke
Cushion
6 Four screws
(Tapping screws)
1 Anode cap
3 F board
•REMOVAL OF ANODE-CAP
NOTE : After removing the anode, short circuit the anode of the picture tube and
the anode cap to the metal chassis, CRT shield or carbon paint on the
CRT.
•REMOVING PROCEDURES
1 Do not damage the surface of anode-caps with sharp shaped objects.
2 Do not press the rubber too hard so as not to damage the inside of anode-cap.
A metal fitting called the shatter-hook terminal is built into the rubber.
3 Do not turn the foot of rubber over too hard.
The shatter-hook terminal will stick out or damage the rubber.
• HOW TO HANDLE AN ANODE-CAP
3 When one side of the rubber cap is separated from the anode button, the anode-cap
can be removed by turning up the rubber cap and pulling it up in the direction of the
arrow c.
2 Using a thumb pull up the rubber cap firmly in the direction indicated by the arrow b.
1 Turn up one side of the rubber cap in the direction indicated by the arrow a.
a
a
b
b
c
Anode button
