Sony TRINITRON KV-PG21M70 - Parts Identification and Listing; Exploded Views of TV Components

– 44 –
KV-PG21P40/PG21M70/PG21P70
RM-952
4
13
7
8
8
9
10
12
14
15
18
5
20
13
6
13
1
2
19
21
23
24
26
25
22
11
27
17
3
28
16
SECTION 6
EXPLODED VIEWS
• Items marked " ∗ " are not stocked since
they are seldom required for routine
service. Some delay should be
anticipated when ordering these items.
The components identified by
shading and mark ! are critical
for safety.
Replace only with part number
specified.
NOTE:
• Items with no part number and no
description are not stocked because
they are seldom required for routine
service.
• The construction parts of an assembled
part are indicated with a collation
number in the remark column.

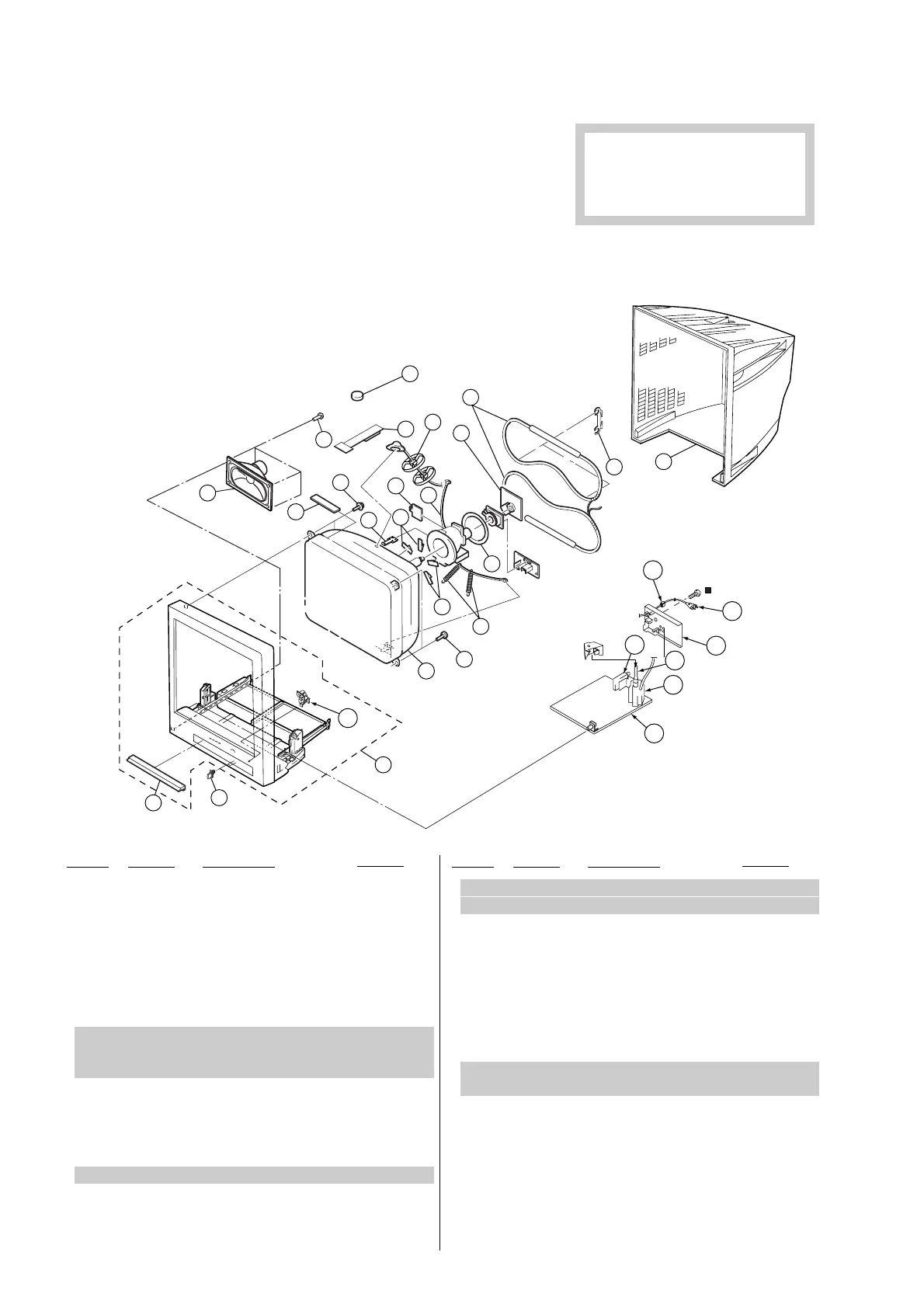

6-1. PICTURE TUBE AND CHASSIS
r : 7-685-648-79 SCREW +BVTP 3 × 12
p : 7-685-663-71 SCREW +BVTP 4 × 16
Caution : Do not take out CRT Support block while TV set in standing position.
1 X-4039-125-1 BEZNET ASSY 3, 28
X-4039-396-1 BEZNET ASSY (KV-PG21P40/N) (EM) 3, 28
X-4039-398-1 BEZNET ASSY (KV-PG21P40/L) (EM) 3, 28
2 4-081-868-01 BUTTON POWER
3 X-4039-301-1 DOOR ASSY, CONTROL
(KV-PG21P40) (ES)/(KV-PG21P70) (E)
X-4039-345-1 DOOR ASSY, CONTROL (KV-PG21M70) (E)
X-4039-397-1 DOOR ASSY (KV-PG21P40/N) (EM)
X-4039-399-1 DOOR ASSY, CONTROL (KV-PG21P40/L) (EM)
4 ! 8-738-812-05 PICTURE TUBE (A51LPT70X) (KV-PG21P40)
! 8-738-809-05 PICTURE TUBE (A51LPT70X)
(KV-PG21P70/PG21M70)
5 1-452-032-00 MAGNET DISC
6 4-081-866-01 COVER REAR ( p 8 SCREW)
7 3-704-372-11 HOLDER HV CABLE
8 4-046-600-11 SPACER DY
9 4-057-714-01 PIECE TLH CONVERGENCE
10 ! 8-451-505-11 DEFLECTION YOKE (Y21RSA-S)
11 1-900-212-58 LEAD ASSY FOCUS
12 * A-1332-200-A CV BOARD MOUNTED
13 4-365-808-01 SCREW (5) TAPPING
14 4-078-765-01 SPRING EXTENSION
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
15 ! 1-416-946-11 COIL, DEMAGNETIC
! 1-419-479-11 COIL, DEGAUSSING (MALAYSIA ONLY)
16 4-069-652-02 CUSHION (HS BAND)
17 4-034-272-11 PLATE CORRECTION TLV
18 4-064-883-03 HOLDER DGC
19 1-505-547-21 SPEAKER (5 x 9CM) ( r 4 SCREW)
20 4-051-736-42 PIECE A (90) CONV, CORRECT
21 * A-1299-573-A A BOARD COMPLETE (KV-PG21P40) (ES)
* A-1299-608-A A BOARD COMPLETE (KV-PG21P70) (E)
* A-1299-620-A A BOARD COMPLETE (KV-PG21P40) (EM)
* A-1299-606-A A BOARD COMPLETE (KV-PG21M70) (E)
22 ! 1-453-329-21 TRANSFORMER ASSY FLYBACK
(NX-4751/M3A4)
23 8-598-591-00 TUNER BT-AG402
24 4-022-115-00 HOLDER AC CORD
25 4-059-710-01 BRACKET TERMINAL BOARD ( p 1 SCREW)
26 1-574-062-11 CORD POWER WITH CONNECTOR
27 * 4-081-867-01 BAR OPTICAL
28 1-452-728-41 COIL, NA ROTATION (CRT-154)
