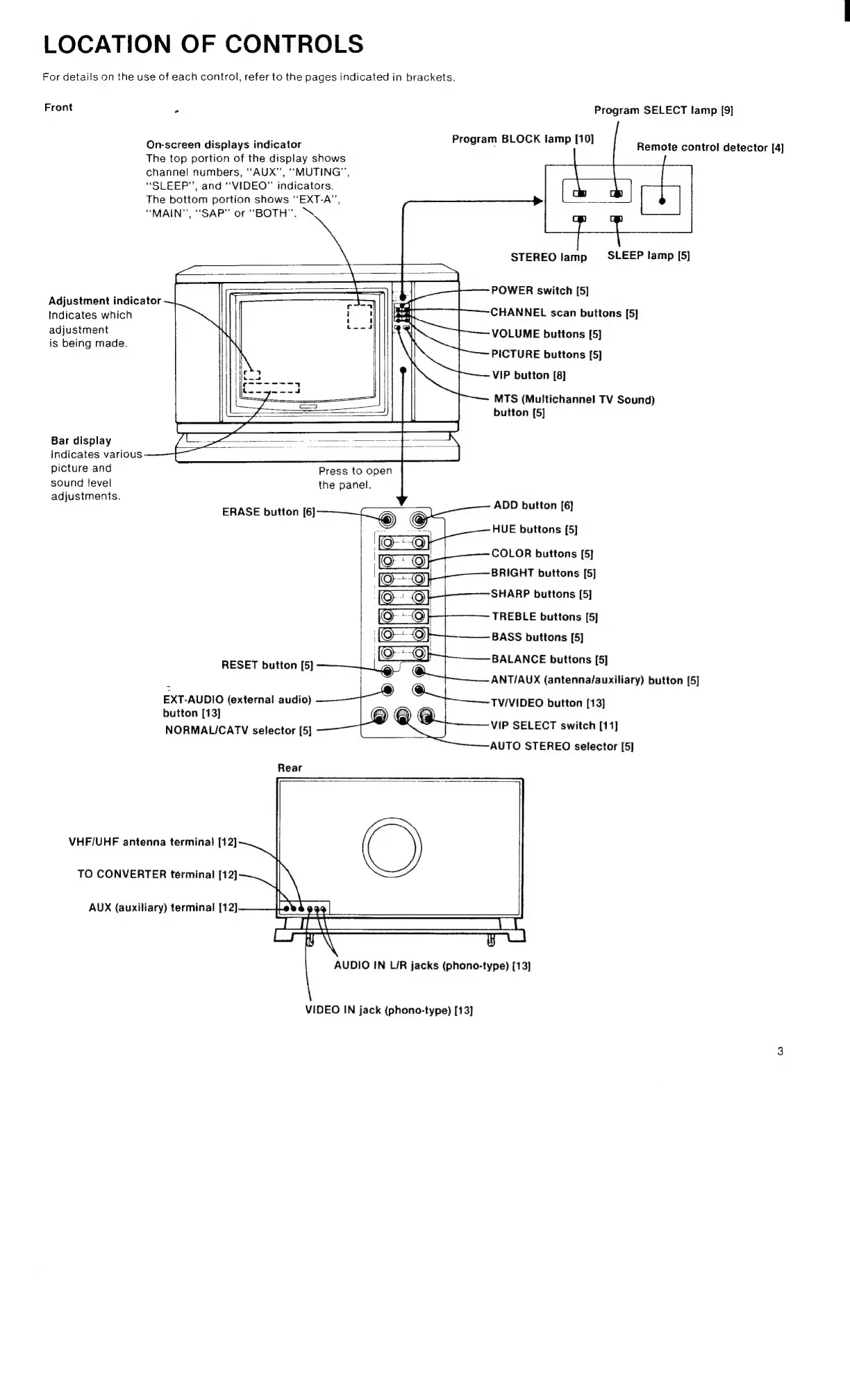

LOCATION OF CONTROLS
For details on the use of each control, refer to the pages indicated in brackets.
Front
=
Program
SELECT
lamp
[9]
On-screen
displays
indicator
Program
BLOCK
lamp
[10]
The top portion of the display shows
channel numbers, ‘AUX’, “MUTING”,
“SLEEP”, and “VIDEO” indicators.
The bottom portion shows “EXT-A”,
“MAIN”, “SAP” or “BOTH”. \
Remote control detector [4]
STEREO lamp = SLEEP lamp [5]
POWER switch [5]
Adjustment indicator
Indicates which
adjustment
is being made.
CHANNEL scan buttons [5]
VOLUME buttons [5]
PICTURE buttons [5]
VIP button [8]
MTS (Multichannel TV Sound)
button [5]
Bar display
Indicates various-
picture and Press to open
sound level the panel.
adjustments.
ERASE
button
[6]
ADD
button
[6]
HUE buttons [5]
COLOR buttons [5]
BRIGHT buttons [5]
SHARP buttons [5]
TREBLE buttons [5}
—_——- BASS buttons [5]
BALANCE buttons [5]
ANT/AUX (antenna/auxiliary) button [5]
RESET button [5]
EXT-AUDIO (external audio) lS
button [13]
NORMALICATV selector [5]
TV/VIDEO button [13]
VIP SELECT switch [11]
AUTO STEREO selector [5]
Rear
VHF/UHF antenna terminal [12]
TO CONVERTER terminal [12]
AUX (auxiliary) terminal [12]
AUDIO IN LIR jacks (phono-type) [13]
\
VIDEO IN jack (phono-type) [13]
